hrmb26
October 28, 2023, 11:24am
1
Hello I’ve recently installed endeavouros on my notebook and after the installation I’ve noticed a few things not working as intended. The first thing I noticed is the wifi not working properly, sometimes when I’m trying to update or download a game it loses connection, it shows as it is connected but without internet access, and stays like that until I manually reconnect it again. Second, the audio seems bugged out whenever I boot into the system I can’t play any audio but after a while or if I plug earphones it starts working. Can you help me troubleshoot these problems, any logs I need to paste or screenshot.
And by the way, I don’t know if could be relevant but it was hell trying to get the usb to boot because of the uefi bullshit this notebook has so reinstall could be somewhat of a problem as well hehe. Thanks in advance.

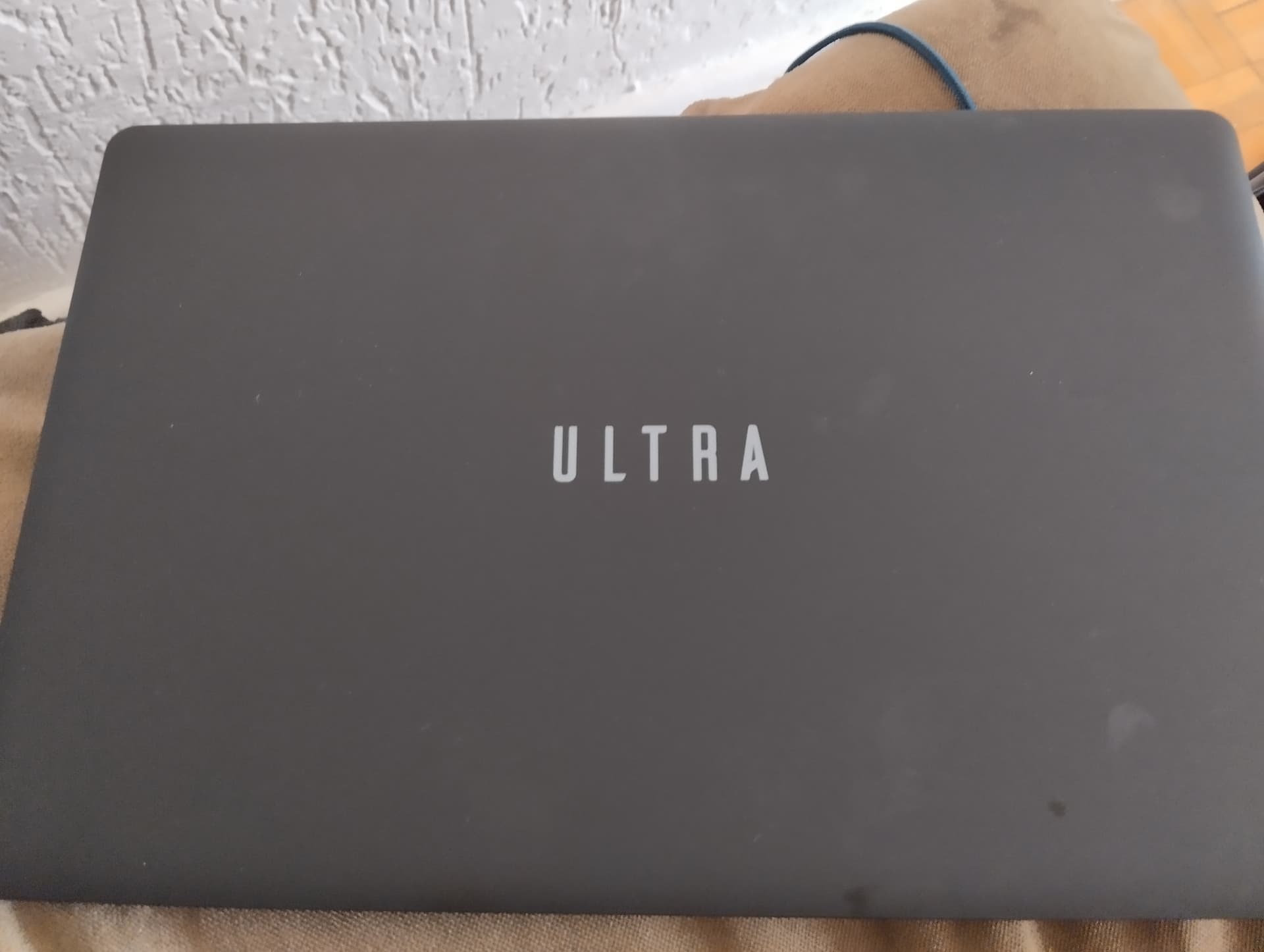

That’s the notebook brand, it came with windows 11 and has a intel celeron so I wanted to run a lightweight linux on it to get the most of it.
I noticed now that I lose connection if I want to download something (steam) is it related?
Ok I tested downloading a torrent and again the wifi dropped so whenever I try to download something it just disconnects
Hi Hector,
So you have two issues:
Wifi seems to disconnect (sometimes this is because the wifi card\driver is trying to save power).
Audio \ sound system does not work right away through speakers or headphones.
So on a high level most of the drivers which allow your computer to use wifi + audion may come from the kernel you choose.
To troubleshoot we really need to know about the parts that make up your laptop. To find this out you can:
Open a terminal screen.
Run the following command:
inxi -b
This command will give us the operating system, chosen desktop and hardware information about your system.
Source:
This is how you can get the logs which we would use to troubleshoot your system (which also happens to be where we have the EndeavourOS Wiki called ‘Discovery’.
https://discovery.endeavouros.com/forum-log-tool-options/how-to-include-systemlogs-in-your-post/2021/03/
1 Like
hrmb26
October 28, 2023, 5:09pm
3
I’ll get back to you on it as soon as I get home from work, tysm.
hrmb26:
Multilaser model: UB23
Thanks for sharing. First time i’ve heard of the Multi laptop brand.
https://quenotebookcomprar.com.br/multilaser-ultra-ub235/
Interesting the inxi command did not show your wireless card.
So out of curiousity,:
If you have the laptop plugged into power, do you still have the internet dropping?
Lets say you boot linux from your usb key to get to the live image. Can connect to wifi and get audio to work? Test like this you want to run the laptop for a couple hours to see if it eventually loses wifi or audio.
@hrmb26
Depending on your results of the test, we may installing the LTS (long term support kernel) via the AKM tool. The reasoning is I noticed your laptop firmware is from 2021. LTS is a more stable choice which i use with my production laptoos.
Source:
Personally, I would find quite necessary a little guide for installing/change kernel. I tried months ago but I switched a lot of time from the arch wiki to other sites to understand how get the packaging of a custom kernel. What gave me problems was the creation of the initramfs, so, I was stucked into this passage because it raised me an error.
As an ignorant, I suggest to get a little wiki on the endeavourOS site.
In my personal case, I need to install a real-time kernel (yes, I already trie…
Hi, I have a question.
I have recently watched a video about how to make Arch more stable by Chris Titus Tech, and he suggested to use a LTS kernel for stability.
Do you think I should switch to a LTS kernel then? My current kernel is 5.9.1-arch1-1.
If you think I should switch, how can I do it on EndeavourOS? I’m still kinda new to Arch based distros…
Thanks!
hrmb26
October 30, 2023, 12:09pm
7
Indeed I’m in Brazil atm.
Yesterday I tried downloading with the charger plugged in and it finished the download well. Today I tried again exactly the same with the charger plugged in and got disconnected again.
I’ve been testing downloading from Steam but torrents had the same issues as well.
So it looks like the wifi card is not running on lower power (since the issue occurs when your plugged in with the power adapter).

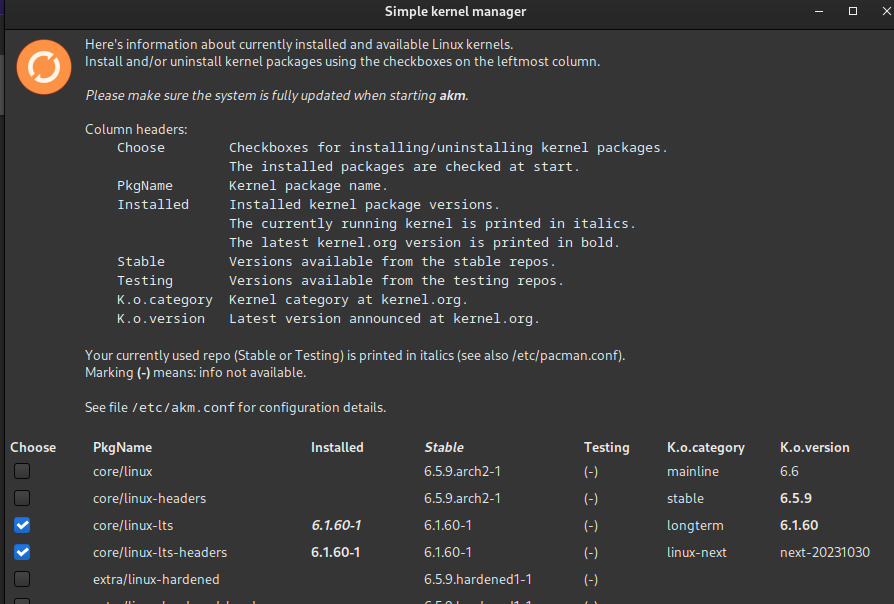

I’d like you to use the ‘akm’ tool to install:
linux-lts
linux-lts-header
Reboot your computer. When you boot your computer you should see an option to use the LTS Kernel. Lets see if this improve things.
hrmb26
October 31, 2023, 10:23am
9
I did the install and now I don’t have wifi
Thats a good sign. That means your wifi driver is not in the LTS kernel (which usually means an extra driver has to be install for LTS).
Is your wifi card plugged into the USB slot?
If the wifi is built into the computer, then boot back into your original kernel:
Open terminal.
Run this command so we can find out what wifi driver is being used:
lspci -k
This is where I am getting the info to troubleshoot your issue:https://wiki.archlinux.org/title/Network_configuration/Wireless
hrmb26
November 1, 2023, 9:39am
11
> 00:00.0 Host bridge: Intel Corporation Gemini Lake Host Bridge (rev 06)
> DeviceName: Onboard - Other
> Subsystem: Intel Corporation Gemini Lake Host Bridge
> 00:00.1 Signal processing controller: Intel Corporation Celeron/Pentium Silver Processor Dynamic Platform and Thermal Framework Processor Participant (rev 06)
> DeviceName: Onboard - Other
> Subsystem: Intel Corporation Celeron/Pentium Silver Processor Dynamic Platform and Thermal Framework Processor Participant
> Kernel driver in use: proc_thermal
> Kernel modules: processor_thermal_device_pci_legacy
> 00:02.0 VGA compatible controller: Intel Corporation GeminiLake [UHD Graphics 600] (rev 06)
> DeviceName: Onboard - Video
> Subsystem: Intel Corporation GeminiLake [UHD Graphics 600]
> Kernel driver in use: i915
> Kernel modules: i915
> 00:0e.0 Multimedia audio controller: Intel Corporation Celeron/Pentium Silver Processor High Definition Audio (rev 06)
> DeviceName: Onboard - Sound
> Subsystem: Realtek Semiconductor Co., Ltd. Celeron/Pentium Silver Processor High Definition Audio
> Kernel driver in use: sof-audio-pci-intel-apl
> Kernel modules: snd_hda_intel, snd_soc_skl, snd_soc_avs, snd_sof_pci_intel_apl
> 00:0f.0 Communication controller: Intel Corporation Celeron/Pentium Silver Processor Trusted Execution Engine Interface (rev 06)
> DeviceName: Onboard - Other
> Subsystem: Intel Corporation Celeron/Pentium Silver Processor Trusted Execution Engine Interface
> Kernel driver in use: mei_me
> Kernel modules: mei_me
> 00:12.0 SATA controller: Intel Corporation Celeron/Pentium Silver Processor SATA Controller (rev 06)
> DeviceName: Onboard - SATA
> Subsystem: Intel Corporation Celeron/Pentium Silver Processor SATA Controller
> Kernel driver in use: ahci
> 00:15.0 USB controller: Intel Corporation Celeron/Pentium Silver Processor USB 3.0 xHCI Controller (rev 06)
> DeviceName: Onboard - Other
> Subsystem: Intel Corporation Celeron/Pentium Silver Processor USB 3.0 xHCI Controller
> Kernel driver in use: xhci_hcd
> Kernel modules: xhci_pci
> 00:16.0 Signal processing controller: Intel Corporation Celeron/Pentium Silver Processor I2C 0 (rev 06)
> DeviceName: Onboard - Other
> Subsystem: Intel Corporation Celeron/Pentium Silver Processor I2C 0
> Kernel driver in use: intel-lpss
> Kernel modules: intel_lpss_pci
> 00:17.0 Signal processing controller: Intel Corporation Celeron/Pentium Silver Processor I2C 4 (rev 06)
> DeviceName: Onboard - Other
> Subsystem: Intel Corporation Celeron/Pentium Silver Processor I2C 4
> Kernel driver in use: intel-lpss
> Kernel modules: intel_lpss_pci
> 00:17.3 Signal processing controller: Intel Corporation Celeron/Pentium Silver Processor I2C 7 (rev 06)
> DeviceName: Onboard - Other
> Subsystem: Intel Corporation Celeron/Pentium Silver Processor I2C 7
> Kernel driver in use: intel-lpss
> Kernel modules: intel_lpss_pci
> 00:18.0 Signal processing controller: Intel Corporation Celeron/Pentium Silver Processor Serial IO UART Host Controller (rev 06)
> DeviceName: Onboard - Other
> Subsystem: Intel Corporation Celeron/Pentium Silver Processor Serial IO UART Host Controller
> Kernel driver in use: intel-lpss
> Kernel modules: intel_lpss_pci
> 00:18.1 Signal processing controller: Intel Corporation Celeron/Pentium Silver Processor Serial IO UART Host Controller (rev 06)
> DeviceName: Onboard - Other
> Subsystem: Intel Corporation Celeron/Pentium Silver Processor Serial IO UART Host Controller
> Kernel driver in use: intel-lpss
> Kernel modules: intel_lpss_pci
> 00:18.2 Signal processing controller: Intel Corporation Celeron/Pentium Silver Processor Serial IO UART Host Controller (rev 06)
> DeviceName: Onboard - Other
> Subsystem: Intel Corporation Celeron/Pentium Silver Processor Serial IO UART Host Controller
> Kernel driver in use: intel-lpss
> Kernel modules: intel_lpss_pci
> 00:18.3 Signal processing controller: Intel Corporation Celeron/Pentium Silver Processor Serial IO UART Host Controller (rev 06)
> DeviceName: Onboard - Other
> Subsystem: Intel Corporation Celeron/Pentium Silver Processor Serial IO UART Host Controller
> Kernel driver in use: intel-lpss
> Kernel modules: intel_lpss_pci
> 00:19.0 Signal processing controller: Intel Corporation Celeron/Pentium Silver Processor Serial IO SPI Host Controller (rev 06)
> DeviceName: Onboard - Other
> Subsystem: Intel Corporation Celeron/Pentium Silver Processor Serial IO SPI Host Controller
> Kernel driver in use: intel-lpss
> Kernel modules: intel_lpss_pci
> 00:19.1 Signal processing controller: Intel Corporation Celeron/Pentium Silver Processor Serial IO SPI Host Controller (rev 06)
> DeviceName: Onboard - Other
> Subsystem: Intel Corporation Celeron/Pentium Silver Processor Serial IO SPI Host Controller
> Kernel driver in use: intel-lpss
> Kernel modules: intel_lpss_pci
> 00:19.2 Signal processing controller: Intel Corporation Celeron/Pentium Silver Processor Serial IO SPI Host Controller (rev 06)
> DeviceName: Onboard - Other
> Subsystem: Intel Corporation Celeron/Pentium Silver Processor Serial IO SPI Host Controller
> Kernel driver in use: intel-lpss
> Kernel modules: intel_lpss_pci
> 00:1c.0 SD Host controller: Intel Corporation Celeron/Pentium Silver Processor SDA Standard Compliant SD Host Controller (rev 06)
> DeviceName: Onboard - Other
> Subsystem: Intel Corporation Celeron/Pentium Silver Processor SDA Standard Compliant SD Host Controller
> Kernel driver in use: sdhci-pci
> Kernel modules: sdhci_pci
> 00:1e.0 SD Host controller: Intel Corporation Device 31d0 (rev 06)
> DeviceName: Onboard - Other
> Subsystem: Intel Corporation Device 7270
> Kernel driver in use: sdhci-pci
> Kernel modules: sdhci_pci
> 00:1f.0 ISA bridge: Intel Corporation Celeron/Pentium Silver Processor LPC Controller (rev 06)
> DeviceName: Onboard - Other
> Subsystem: Intel Corporation Celeron/Pentium Silver Processor LPC Controller
> 00:1f.1 SMBus: Intel Corporation Celeron/Pentium Silver Processor Gaussian Mixture Model (rev 06)
> DeviceName: Onboard - Other
> Subsystem: Intel Corporation Celeron/Pentium Silver Processor Gaussian Mixture Model
> Kernel driver in use: i801_smbus
> Kernel modules: i2c_i801
I also tried using my phone as a wired internet router and managed to finish several downloads without disconnections as well.
Thanks for doing this test. So this is the biggest clue I have been looking at:
Network:
Message: No PCI device data found.
This message when you ran inxi -b told us that even though your wifi card is working … it was not being detected by inxi.
We switched to the LTS kernel hoping to get a stable wifi driver. But then no wifi.
Now we ran lspci -k to verify whether the wifi card could be found (which it wasn’t).
Based on your laptop configuration I have this feeling you have a realtek wifi card in the machine.
Lets run this command from terminal to see what driver the kernel is providing for wifi:
sudo dmesg | grep firmware
To get more information about your wifi card:
sudo dmesg | grep iwlwifi
To get information about your current network state:
ip link
Additionally if you look at the below post, you will see that a person with similar hardware to you ended up having to install the realtek wifi driver manually in mint linux.
Source: https://forums.linuxmint.com/viewtopic.php?t=377655
hrmb26
November 2, 2023, 11:11am
13
> sudo dmesg | grep firmware
> [ 3.569994] systemd[1]: TPM2 PCR Machine ID Measurement was skipped because of an unmet condition check (ConditionPathExists=/sys/firmware/efi/efivars/StubPcrKernelImage-4a67b082-0a4c-41cf-b6c7-440b29bb8c4f).
> [ 7.361223] i915 0000:00:02.0: [drm] Finished loading DMC firmware i915/glk_dmc_ver1_04.bin (v1.4)
sudo dmesg | grep iwlwifi didn’t return anything
> ip link
> 1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN mode DEFAULT group default qlen 1000
> link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
> 2: wlan0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP mode DORMANT group default qlen 1000
> link/ether 34:20:03:6c:bb:4f brd ff:ff:ff:ff:ff:ff
All these tests I’m doing them in the unstable kernel not the LTS.
Good Morning Hector,
Lets target the usb interface to see what it says:
sudo lsusb -v
Then this command:
sudo dmesg | grep usbcore
hrmb26
November 2, 2023, 12:03pm
15
Good morning to you too, Randy.
Here are the results:
> sudo lsusb -v
> Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
> Device Descriptor:
> bLength 18
> bDescriptorType 1
> bcdUSB 2.00
> bDeviceClass 9 Hub
> bDeviceSubClass 0 [unknown]
> bDeviceProtocol 1 Single TT
> bMaxPacketSize0 64
> idVendor 0x1d6b Linux Foundation
> idProduct 0x0002 2.0 root hub
> bcdDevice 6.05
> iManufacturer 3 Linux 6.5.9-arch2-1 xhci-hcd
> iProduct 2 xHCI Host Controller
> iSerial 1 0000:00:15.0
> bNumConfigurations 1
> Configuration Descriptor:
> bLength 9
> bDescriptorType 2
> wTotalLength 0x0019
> bNumInterfaces 1
> bConfigurationValue 1
> iConfiguration 0
> bmAttributes 0xe0
> Self Powered
> Remote Wakeup
> MaxPower 0mA
> Interface Descriptor:
> bLength 9
> bDescriptorType 4
> bInterfaceNumber 0
> bAlternateSetting 0
> bNumEndpoints 1
> bInterfaceClass 9 Hub
> bInterfaceSubClass 0 [unknown]
> bInterfaceProtocol 0 Full speed (or root) hub
> iInterface 0
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x81 EP 1 IN
> bmAttributes 3
> Transfer Type Interrupt
> Synch Type None
> Usage Type Data
> wMaxPacketSize 0x0004 1x 4 bytes
> bInterval 12
> Hub Descriptor:
> bLength 11
> bDescriptorType 41
> nNbrPorts 9
> wHubCharacteristic 0x000a
> No power switching (usb 1.0)
> Per-port overcurrent protection
> TT think time 8 FS bits
> bPwrOn2PwrGood 10 * 2 milli seconds
> bHubContrCurrent 0 milli Ampere
> DeviceRemovable 0x80 0x02
> PortPwrCtrlMask 0xff 0xff
> Hub Port Status:
> Port 1: 0000.0303 lowspeed power enable connect
> Port 2: 0000.0100 power
> Port 3: 0000.0100 power
> Port 4: 0000.0503 highspeed power enable connect
> Port 5: 0000.0100 power
> Port 6: 0000.0503 highspeed power enable connect
> Port 7: 0000.0100 power
> Port 8: 0000.0100 power
> Port 9: 0000.0100 power
> Device Status: 0x0001
> Self Powered
>
> Bus 001 Device 002: ID 30fa:0400 [unknown] [unknown]
> Device Descriptor:
> bLength 18
> bDescriptorType 1
> bcdUSB 1.10
> bDeviceClass 0 [unknown]
> bDeviceSubClass 0 [unknown]
> bDeviceProtocol 0
> bMaxPacketSize0 8
> idVendor 0x30fa [unknown]
> idProduct 0x0400 [unknown]
> bcdDevice 1.00
> iManufacturer 0
> iProduct 1 USB OPTICAL MOUSE
> iSerial 0
> bNumConfigurations 1
> Configuration Descriptor:
> bLength 9
> bDescriptorType 2
> wTotalLength 0x0022
> bNumInterfaces 1
> bConfigurationValue 1
> iConfiguration 0
> bmAttributes 0xa0
> (Bus Powered)
> Remote Wakeup
> MaxPower 100mA
> Interface Descriptor:
> bLength 9
> bDescriptorType 4
> bInterfaceNumber 0
> bAlternateSetting 0
> bNumEndpoints 1
> bInterfaceClass 3 Human Interface Device
> bInterfaceSubClass 1 Boot Interface Subclass
> bInterfaceProtocol 2 Mouse
> iInterface 0
> HID Device Descriptor:
> bLength 9
> bDescriptorType 33
> bcdHID 1.11
> bCountryCode 0 Not supported
> bNumDescriptors 1
> bDescriptorType 34 Report
> wDescriptorLength 64
> Report Descriptors:
> ** UNAVAILABLE **
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x81 EP 1 IN
> bmAttributes 3
> Transfer Type Interrupt
> Synch Type None
> Usage Type Data
> wMaxPacketSize 0x0005 1x 5 bytes
> bInterval 10
> Device Status: 0x0000
> (Bus Powered)
>
> Bus 001 Device 003: ID 0bda:d723 Realtek Semiconductor Corp. [unknown]
> Device Descriptor:
> bLength 18
> bDescriptorType 1
> bcdUSB 2.00
> bDeviceClass 239 Miscellaneous Device
> bDeviceSubClass 2 [unknown]
> bDeviceProtocol 1 Interface Association
> bMaxPacketSize0 64
> idVendor 0x0bda Realtek Semiconductor Corp.
> idProduct 0xd723 [unknown]
> bcdDevice 2.00
> iManufacturer 1 Realtek
> iProduct 2 802.11n WLAN Adapter
> iSerial 3 00e04c000001
> bNumConfigurations 1
> Configuration Descriptor:
> bLength 9
> bDescriptorType 2
> wTotalLength 0x00ec
> bNumInterfaces 3
> bConfigurationValue 1
> iConfiguration 0
> bmAttributes 0xe0
> Self Powered
> Remote Wakeup
> MaxPower 500mA
> Interface Association:
> bLength 8
> bDescriptorType 11
> bFirstInterface 0
> bInterfaceCount 2
> bFunctionClass 224 Wireless
> bFunctionSubClass 1 Radio Frequency
> bFunctionProtocol 1 Bluetooth
> iFunction 4 Bluetooth Radio
> Interface Descriptor:
> bLength 9
> bDescriptorType 4
> bInterfaceNumber 0
> bAlternateSetting 0
> bNumEndpoints 3
> bInterfaceClass 224 Wireless
> bInterfaceSubClass 1 Radio Frequency
> bInterfaceProtocol 1 Bluetooth
> iInterface 4 Bluetooth Radio
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x81 EP 1 IN
> bmAttributes 3
> Transfer Type Interrupt
> Synch Type None
> Usage Type Data
> wMaxPacketSize 0x0010 1x 16 bytes
> bInterval 4
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x02 EP 2 OUT
> bmAttributes 2
> Transfer Type Bulk
> Synch Type None
> Usage Type Data
> wMaxPacketSize 0x0200 1x 512 bytes
> bInterval 0
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x82 EP 2 IN
> bmAttributes 2
> Transfer Type Bulk
> Synch Type None
> Usage Type Data
> wMaxPacketSize 0x0200 1x 512 bytes
> bInterval 0
> Interface Descriptor:
> bLength 9
> bDescriptorType 4
> bInterfaceNumber 1
> bAlternateSetting 0
> bNumEndpoints 2
> bInterfaceClass 224 Wireless
> bInterfaceSubClass 1 Radio Frequency
> bInterfaceProtocol 1 Bluetooth
> iInterface 4 Bluetooth Radio
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x03 EP 3 OUT
> bmAttributes 1
> Transfer Type Isochronous
> Synch Type None
> Usage Type Data
> wMaxPacketSize 0x0000 1x 0 bytes
> bInterval 4
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x83 EP 3 IN
> bmAttributes 1
> Transfer Type Isochronous
> Synch Type None
> Usage Type Data
> wMaxPacketSize 0x0000 1x 0 bytes
> bInterval 4
> Interface Descriptor:
> bLength 9
> bDescriptorType 4
> bInterfaceNumber 1
> bAlternateSetting 1
> bNumEndpoints 2
> bInterfaceClass 224 Wireless
> bInterfaceSubClass 1 Radio Frequency
> bInterfaceProtocol 1 Bluetooth
> iInterface 4 Bluetooth Radio
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x03 EP 3 OUT
> bmAttributes 1
> Transfer Type Isochronous
> Synch Type None
> Usage Type Data
> wMaxPacketSize 0x0009 1x 9 bytes
> bInterval 4
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x83 EP 3 IN
> bmAttributes 1
> Transfer Type Isochronous
> Synch Type None
> Usage Type Data
> wMaxPacketSize 0x0009 1x 9 bytes
> bInterval 4
> Interface Descriptor:
> bLength 9
> bDescriptorType 4
> bInterfaceNumber 1
> bAlternateSetting 2
> bNumEndpoints 2
> bInterfaceClass 224 Wireless
> bInterfaceSubClass 1 Radio Frequency
> bInterfaceProtocol 1 Bluetooth
> iInterface 4 Bluetooth Radio
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x03 EP 3 OUT
> bmAttributes 1
> Transfer Type Isochronous
> Synch Type None
> Usage Type Data
> wMaxPacketSize 0x0011 1x 17 bytes
> bInterval 4
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x83 EP 3 IN
> bmAttributes 1
> Transfer Type Isochronous
> Synch Type None
> Usage Type Data
> wMaxPacketSize 0x0011 1x 17 bytes
> bInterval 4
> Interface Descriptor:
> bLength 9
> bDescriptorType 4
> bInterfaceNumber 1
> bAlternateSetting 3
> bNumEndpoints 2
> bInterfaceClass 224 Wireless
> bInterfaceSubClass 1 Radio Frequency
> bInterfaceProtocol 1 Bluetooth
> iInterface 4 Bluetooth Radio
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x03 EP 3 OUT
> bmAttributes 1
> Transfer Type Isochronous
> Synch Type None
> Usage Type Data
> wMaxPacketSize 0x0019 1x 25 bytes
> bInterval 4
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x83 EP 3 IN
> bmAttributes 1
> Transfer Type Isochronous
> Synch Type None
> Usage Type Data
> wMaxPacketSize 0x0019 1x 25 bytes
> bInterval 4
> Interface Descriptor:
> bLength 9
> bDescriptorType 4
> bInterfaceNumber 1
> bAlternateSetting 4
> bNumEndpoints 2
> bInterfaceClass 224 Wireless
> bInterfaceSubClass 1 Radio Frequency
> bInterfaceProtocol 1 Bluetooth
> iInterface 4 Bluetooth Radio
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x03 EP 3 OUT
> bmAttributes 1
> Transfer Type Isochronous
> Synch Type None
> Usage Type Data
> wMaxPacketSize 0x0021 1x 33 bytes
> bInterval 4
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x83 EP 3 IN
> bmAttributes 1
> Transfer Type Isochronous
> Synch Type None
> Usage Type Data
> wMaxPacketSize 0x0021 1x 33 bytes
> bInterval 4
> Interface Descriptor:
> bLength 9
> bDescriptorType 4
> bInterfaceNumber 1
> bAlternateSetting 5
> bNumEndpoints 2sudo lsusb -v
[sudo] password for hectorm:
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Device Descriptor:
bLength 18
bDescriptorType 1
bcdUSB 2.00
bDeviceClass 9 Hub
bDeviceSubClass 0 [unknown]
bDeviceProtocol 1 Single TT
bMaxPacketSize0 64
idVendor 0x1d6b Linux Foundation
idProduct 0x0002 2.0 root hub
bcdDevice 6.05
iManufacturer 3 Linux 6.5.9-arch2-1 xhci-hcd
iProduct 2 xHCI Host Controller
iSerial 1 0000:00:15.0
bNumConfigurations 1
Configuration Descriptor:
bLength 9
bDescriptorType 2
wTotalLength 0x0019
bNumInterfaces 1
bConfigurationValue 1
iConfiguration 0
bmAttributes 0xe0
Self Powered
Remote Wakeup
MaxPower 0mA
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 0
bAlternateSetting 0
bNumEndpoints 1
bInterfaceClass 9 Hub
bInterfaceSubClass 0 [unknown]
bInterfaceProtocol 0 Full speed (or root) hub
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 3
Transfer Type Interrupt
Synch Type None
Usage Type Data
wMaxPacketSize 0x0004 1x 4 bytes
bInterval 12
Hub Descriptor:
bLength 11
bDescriptorType 41
nNbrPorts 9
wHubCharacteristic 0x000a
No power switching (usb 1.0)
Per-port overcurrent protection
TT think time 8 FS bits
bPwrOn2PwrGood 10 * 2 milli seconds
bHubContrCurrent 0 milli Ampere
DeviceRemovable 0x80 0x02
PortPwrCtrlMask 0xff 0xff
Hub Port Status:
Port 1: 0000.0303 lowspeed power enable connect
Port 2: 0000.0100 power
Port 3: 0000.0100 power
Port 4: 0000.0503 highspeed power enable connect
Port 5: 0000.0100 power
Port 6: 0000.0503 highspeed power enable connect
Port 7: 0000.0100 power
Port 8: 0000.0100 power
Port 9: 0000.0100 power
Device Status: 0x0001
Self Powered
Bus 001 Device 002: ID 30fa:0400 [unknown] [unknown]
Device Descriptor:
bLength 18
bDescriptorType 1
bcdUSB 1.10
bDeviceClass 0 [unknown]
bDeviceSubClass 0 [unknown]
bDeviceProtocol 0
bMaxPacketSize0 8
idVendor 0x30fa [unknown]
idProduct 0x0400 [unknown]
bcdDevice 1.00
iManufacturer 0
iProduct 1 USB OPTICAL MOUSE
iSerial 0
bNumConfigurations 1
Configuration Descriptor:
bLength 9
bDescriptorType 2
wTotalLength 0x0022
bNumInterfaces 1
bConfigurationValue 1
iConfiguration 0
bmAttributes 0xa0
(Bus Powered)
Remote Wakeup
MaxPower 100mA
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 0
bAlternateSetting 0
bNumEndpoints 1
bInterfaceClass 3 Human Interface Device
bInterfaceSubClass 1 Boot Interface Subclass
bInterfaceProtocol 2 Mouse
iInterface 0
HID Device Descriptor:
bLength 9
bDescriptorType 33
bcdHID 1.11
bCountryCode 0 Not supported
bNumDescriptors 1
bDescriptorType 34 Report
wDescriptorLength 64
Report Descriptors:
** UNAVAILABLE **
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 3
Transfer Type Interrupt
Synch Type None
Usage Type Data
wMaxPacketSize 0x0005 1x 5 bytes
bInterval 10
Device Status: 0x0000
(Bus Powered)
Bus 001 Device 003: ID 0bda:d723 Realtek Semiconductor Corp. [unknown]
Device Descriptor:
bLength 18
bDescriptorType 1
bcdUSB 2.00
bDeviceClass 239 Miscellaneous Device
bDeviceSubClass 2 [unknown]
bDeviceProtocol 1 Interface Association
bMaxPacketSize0 64
idVendor 0x0bda Realtek Semiconductor Corp.
idProduct 0xd723 [unknown]
bcdDevice 2.00
iManufacturer 1 Realtek
iProduct 2 802.11n WLAN Adapter
iSerial 3 00e04c000001
bNumConfigurations 1
Configuration Descriptor:
bLength 9
bDescriptorType 2
wTotalLength 0x00ec
bNumInterfaces 3
bConfigurationValue 1
iConfiguration 0
bmAttributes 0xe0
Self Powered
Remote Wakeup
MaxPower 500mA
Interface Association:
bLength 8
bDescriptorType 11
bFirstInterface 0
bInterfaceCount 2
bFunctionClass 224 Wireless
bFunctionSubClass 1 Radio Frequency
bFunctionProtocol 1 Bluetooth
iFunction 4 Bluetooth Radio
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 0
bAlternateSetting 0
bNumEndpoints 3
bInterfaceClass 224 Wireless
bInterfaceSubClass 1 Radio Frequency
bInterfaceProtocol 1 Bluetooth
iInterface 4 Bluetooth Radio
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 3
Transfer Type Interrupt
Synch Type None
Usage Type Data
wMaxPacketSize 0x0010 1x 16 bytes
bInterval 4
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x02 EP 2 OUT
bmAttributes 2
Transfer Type Bulk
Synch Type None
Usage Type Data
wMaxPacketSize 0x0200 1x 512 bytes
bInterval 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x82 EP 2 IN
bmAttributes 2
Transfer Type Bulk
Synch Type None
Usage Type Data
wMaxPacketSize 0x0200 1x 512 bytes
bInterval 0
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 0
bNumEndpoints 2
bInterfaceClass 224 Wireless
bInterfaceSubClass 1 Radio Frequency
bInterfaceProtocol 1 Bluetooth
iInterface 4 Bluetooth Radio
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x03 EP 3 OUT
bmAttributes 1
Transfer Type Isochronous
Synch Type None
Usage Type Data
wMaxPacketSize 0x0000 1x 0 bytes
bInterval 4
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x83 EP 3 IN
bmAttributes 1
Transfer Type Isochronous
Synch Type None
Usage Type Data
wMaxPacketSize 0x0000 1x 0 bytes
bInterval 4
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 1
bNumEndpoints 2
bInterfaceClass 224 Wireless
bInterfaceSubClass 1 Radio Frequency
bInterfaceProtocol 1 Bluetooth
iInterface 4 Bluetooth Radio
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x03 EP 3 OUT
bmAttributes 1
Transfer Type Isochronous
Synch Type None
Usage Type Data
wMaxPacketSize 0x0009 1x 9 bytes
bInterval 4
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x83 EP 3 IN
bmAttributes 1
Transfer Type Isochronous
Synch Type None
Usage Type Data
wMaxPacketSize 0x0009 1x 9 bytes
bInterval 4
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 2
bNumEndpoints 2
bInterfaceClass 224 Wireless
bInterfaceSubClass 1 Radio Frequency
bInterfaceProtocol 1 Bluetooth
iInterface 4 Bluetooth Radio
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x03 EP 3 OUT
bmAttributes 1
Transfer Type Isochronous
Synch Type None
Usage Type Data
wMaxPacketSize 0x0011 1x 17 bytes
bInterval 4
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x83 EP 3 IN
bmAttributes 1
Transfer Type Isochronous
Synch Type None
Usage Type Data
wMaxPacketSize 0x0011 1x 17 bytes
bInterval 4
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 3
bNumEndpoints 2
bInterfaceClass 224 Wireless
bInterfaceSubClass 1 Radio Frequency
bInterfaceProtocol 1 Bluetooth
iInterface 4 Bluetooth Radio
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x03 EP 3 OUT
bmAttributes 1
Transfer Type Isochronous
Synch Type None
Usage Type Data
wMaxPacketSize 0x0019 1x 25 bytes
bInterval 4
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x83 EP 3 IN
bmAttributes 1
Transfer Type Isochronous
Synch Type None
Usage Type Data
wMaxPacketSize 0x0019 1x 25 bytes
bInterval 4
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 4
bNumEndpoints 2
bInterfaceClass 224 Wireless
bInterfaceSubClass 1 Radio Frequency
bInterfaceProtocol 1 Bluetooth
iInterface 4 Bluetooth Radio
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x03 EP 3 OUT
bmAttributes 1
Transfer Type Isochronous
Synch Type None
Usage Type Data
wMaxPacketSize 0x0021 1x 33 bytes
bInterval 4
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x83 EP 3 IN
bmAttributes 1
Transfer Type Isochronous
Synch Type None
Usage Type Data
wMaxPacketSize 0x0021 1x 33 bytes
bInterval 4
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 5
bNumEndpoints 2
bInterfaceClass 224 Wireless
bInterfaceSubClass 1 Radio Frequency
bInterfaceProtocol 1 Bluetooth
iInterface 4 Bluetooth Radio
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x03 EP 3 OUT
bmAttributes 1
Transfer Type Isochronous
Synch Type None
Usage Type Data
wMaxPacketSize 0x0031 1x 49 bytes
bInterval 4
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x83 EP 3 IN
bmAttributes 1
Transfer Type Isochronous
Synch Type None
Usage Type Data
wMaxPacketSize 0x0031 1x 49 bytes
bInterval 4
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 2
bAlternateSetting 0
bNumEndpoints 6
bInterfaceClass 255 Vendor Specific Class
bInterfaceSubClass 255 Vendor Specific Subclass
bInterfaceProtocol 255 Vendor Specific Protocol
iInterface 2 802.11n WLAN Adapter
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x84 EP 4 IN
bmAttributes 2
Transfer Type Bulk
Synch Type None
Usage Type Data
wMaxPacketSize 0x0200 1x 512 bytes
bInterval 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x05 EP 5 OUT
bmAttributes 2
Transfer Type Bulk
Synch Type None
Usage Type Data
wMaxPacketSize 0x0200 1x 512 bytes
bInterval 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x06 EP 6 OUT
bmAttributes 2
Transfer Type Bulk
Synch Type None
Usage Type Data
wMaxPacketSize 0x0200 1x 512 bytes
bInterval 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x87 EP 7 IN
bmAttributes 3
Transfer Type Interrupt
Synch Type None
Usage Type Data
wMaxPacketSize 0x0040 1x 64 bytes
bInterval 3
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x08 EP 8 OUT
bmAttributes 2
Transfer Type Bulk
Synch Type None
Usage Type Data
wMaxPacketSize 0x0200 1x 512 bytes
bInterval 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x09 EP 9 OUT
bmAttributes 2
Transfer Type Bulk
Synch Type None
Usage Type Data
wMaxPacketSize 0x0200 1x 512 bytes
bInterval 0
Device Qualifier (for other device speed):
bLength 10
bDescriptorType 6
bcdUSB 2.00
bDeviceClass 0 [unknown]
bDeviceSubClass 0 [unknown]
bDeviceProtocol 0
bMaxPacketSize0 64
bNumConfigurations 1
Device Status: 0x0001
Self Powered
Bus 001 Device 004: ID 0bdc:0320 Y Media Corp. [unknown]
Device Descriptor:
bLength 18
bDescriptorType 1
bcdUSB 2.00
bDeviceClass 239 Miscellaneous Device
bDeviceSubClass 2 [unknown]
bDeviceProtocol 1 Interface Association
bMaxPacketSize0 64
idVendor 0x0bdc Y Media Corp.
idProduct 0x0320 [unknown]
bcdDevice 1.01
iManufacturer 3 MTD
iProduct 1 USB Camera
iSerial 2 20200618
bNumConfigurations 1
Configuration Descriptor:
bLength 9
bDescriptorType 2
wTotalLength 0x0169
bNumInterfaces 2
bConfigurationValue 1
iConfiguration 4 USB Camera
bmAttributes 0x80
(Bus Powered)
MaxPower 500mA
Interface Association:
bLength 8
bDescriptorType 11
bFirstInterface 0
bInterfaceCount 2
bFunctionClass 14 Video
bFunctionSubClass 3 Video Interface Collection
bFunctionProtocol 0
iFunction 5 USB Camera
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 0
bAlternateSetting 0
bNumEndpoints 1
bInterfaceClass 14 Video
bInterfaceSubClass 1 Video Control
bInterfaceProtocol 0
iInterface 5 USB Camera
VideoControl Interface Descriptor:
bLength 13
bDescriptorType 36
bDescriptorSubtype 1 (HEADER)
bcdUVC 1.00
wTotalLength 0x006b
dwClockFrequency 15.000000MHz
bInCollection 1
baInterfaceNr( 0) 1
VideoControl Interface Descriptor:
bLength 18
bDescriptorType 36
bDescriptorSubtype 2 (INPUT_TERMINAL)
bTerminalID 1
wTerminalType 0x0201 Camera Sensor
bAssocTerminal 0
iTerminal 0
wObjectiveFocalLengthMin 0
wObjectiveFocalLengthMax 0
wOcularFocalLength 0
bControlSize 3
bmControls 0x00002a0e
Auto-Exposure Mode
Auto-Exposure Priority
Exposure Time (Absolute)
Zoom (Absolute)
PanTilt (Absolute)
Roll (Absolute)
VideoControl Interface Descriptor:
bLength 11
bDescriptorType 36
bDescriptorSubtype 5 (PROCESSING_UNIT)
Warning: Descriptor too short
bUnitID 2
bSourceID 1
wMaxMultiplier 0
bControlSize 2
bmControls 0x0000177f
Brightness
Contrast
Hue
Saturation
Sharpness
Gamma
White Balance Temperature
Backlight Compensation
Gain
Power Line Frequency
White Balance Temperature, Auto
iProcessing 0
bmVideoStandards 0x09
None
SECAM - 625/50
VideoControl Interface Descriptor:
bLength 9
bDescriptorType 36
bDescriptorSubtype 3 (OUTPUT_TERMINAL)
bTerminalID 3
wTerminalType 0x0101 USB Streaming
bAssocTerminal 0
bSourceID 2
iTerminal 0
VideoControl Interface Descriptor:
bLength 27
bDescriptorType 36
bDescriptorSubtype 6 (EXTENSION_UNIT)
bUnitID 4
guidExtensionCode {1229a78c-47b4-4094-b0ce-db07386fb938}
bNumControls 2
bNrInPins 1
baSourceID( 0) 1
bControlSize 2
bmControls( 0) 0x00
bmControls( 1) 0x06
iExtension 0
VideoControl Interface Descriptor:
bLength 29
bDescriptorType 36
bDescriptorSubtype 6 (EXTENSION_UNIT)
bUnitID 7
guidExtensionCode {0fb885c3-68c2-4547-90f7-8f47579d95fc}
bNumControls 0
bNrInPins 1
baSourceID( 0) 3
bControlSize 4
bmControls( 0) 0x0f
bmControls( 1) 0x00
bmControls( 2) 0x00
bmControls( 3) 0x00
iExtension 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x83 EP 3 IN
bmAttributes 3
Transfer Type Interrupt
Synch Type None
Usage Type Data
wMaxPacketSize 0x0010 1x 16 bytes
bInterval 6
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 0
bNumEndpoints 0
bInterfaceClass 14 Video
bInterfaceSubClass 2 Video Streaming
bInterfaceProtocol 0
iInterface 0
VideoStreaming Interface Descriptor:
bLength 14
bDescriptorType 36
bDescriptorSubtype 1 (INPUT_HEADER)
bNumFormats 1
wTotalLength 0x005f
bEndpointAddress 0x81 EP 1 IN
bmInfo 0
bTerminalLink 3
bStillCaptureMethod 2
bTriggerSupport 1
bTriggerUsage 0
bControlSize 1
bmaControls( 0) 0
VideoStreaming Interface Descriptor:
bLength 27
bDescriptorType 36
bDescriptorSubtype 4 (FORMAT_UNCOMPRESSED)
bFormatIndex 1
bNumFrameDescriptors 1
guidFormat {32595559-0000-0010-8000-00aa00389b71}
bBitsPerPixel 16
bDefaultFrameIndex 1
bAspectRatioX 0
bAspectRatioY 0
bmInterlaceFlags 0x00
Interlaced stream or variable: No
Fields per frame: 2 fields
Field 1 first: No
Field pattern: Field 1 only
bCopyProtect 0
VideoStreaming Interface Descriptor:
bLength 38
bDescriptorType 36
bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
bFrameIndex 1
bmCapabilities 0x00
Still image unsupported
wWidth 640
wHeight 480
dwMinBitRate 98304000
dwMaxBitRate 147456000
dwMaxVideoFrameBufferSize 614400
dwDefaultFrameInterval 333333
bFrameIntervalType 3
dwFrameInterval( 0) 333333
dwFrameInterval( 1) 400000
dwFrameInterval( 2) 500000
VideoStreaming Interface Descriptor:
bLength 10
bDescriptorType 36
bDescriptorSubtype 3 (STILL_IMAGE_FRAME)
bEndpointAddress 0x00 EP 0 OUT
bNumImageSizePatterns 1
wWidth( 0) 640
wHeight( 0) 480
bNumCompressionPatterns 0
VideoStreaming Interface Descriptor:
bLength 6
bDescriptorType 36
bDescriptorSubtype 13 (COLORFORMAT)
bColorPrimaries 1 (BT.709,sRGB)
bTransferCharacteristics 1 (BT.709)
bMatrixCoefficients 4 (SMPTE 170M (BT.601))
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 1
bNumEndpoints 1
bInterfaceClass 14 Video
bInterfaceSubClass 2 Video Streaming
bInterfaceProtocol 0
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 5
Transfer Type Isochronous
Synch Type Asynchronous
Usage Type Data
wMaxPacketSize 0x0080 1x 128 bytes
bInterval 1
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 2
bNumEndpoints 1
bInterfaceClass 14 Video
bInterfaceSubClass 2 Video Streaming
bInterfaceProtocol 0
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 5
Transfer Type Isochronous
Synch Type Asynchronous
Usage Type Data
wMaxPacketSize 0x0200 1x 512 bytes
bInterval 1
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 3
bNumEndpoints 1
bInterfaceClass 14 Video
bInterfaceSubClass 2 Video Streaming
bInterfaceProtocol 0
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 5
Transfer Type Isochronous
Synch Type Asynchronous
Usage Type Data
wMaxPacketSize 0x0400 1x 1024 bytes
bInterval 1
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 4
bNumEndpoints 1
bInterfaceClass 14 Video
bInterfaceSubClass 2 Video Streaming
bInterfaceProtocol 0
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 5
Transfer Type Isochronous
Synch Type Asynchronous
Usage Type Data
wMaxPacketSize 0x0b00 2x 768 bytes
bInterval 1
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 5
bNumEndpoints 1
bInterfaceClass 14 Video
bInterfaceSubClass 2 Video Streaming
bInterfaceProtocol 0
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 5
Transfer Type Isochronous
Synch Type Asynchronous
Usage Type Data
wMaxPacketSize 0x0c00 2x 1024 bytes
bInterval 1
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 6
bNumEndpoints 1
bInterfaceClass 14 Video
bInterfaceSubClass 2 Video Streaming
bInterfaceProtocol 0
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 5
Transfer Type Isochronous
Synch Type Asynchronous
Usage Type Data
wMaxPacketSize 0x1380 3x 896 bytes
bInterval 1
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 1
bAlternateSetting 7
bNumEndpoints 1
bInterfaceClass 14 Video
bInterfaceSubClass 2 Video Streaming
bInterfaceProtocol 0
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 5
Transfer Type Isochronous
Synch Type Asynchronous
Usage Type Data
wMaxPacketSize 0x1400 3x 1024 bytes
bInterval 1
Device Qualifier (for other device speed):
bLength 10
bDescriptorType 6
bcdUSB 2.00
bDeviceClass 239 Miscellaneous Device
bDeviceSubClass 2 [unknown]
bDeviceProtocol 1 Interface Association
bMaxPacketSize0 64
bNumConfigurations 1
Device Status: 0x0000
(Bus Powered)
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Device Descriptor:
bLength 18
bDescriptorType 1
bcdUSB 3.00
bDeviceClass 9 Hub
bDeviceSubClass 0 [unknown]
bDeviceProtocol 3
bMaxPacketSize0 9
idVendor 0x1d6b Linux Foundation
idProduct 0x0003 3.0 root hub
bcdDevice 6.05
iManufacturer 3 Linux 6.5.9-arch2-1 xhci-hcd
iProduct 2 xHCI Host Controller
iSerial 1 0000:00:15.0
bNumConfigurations 1
Configuration Descriptor:
bLength 9
bDescriptorType 2
wTotalLength 0x001f
bNumInterfaces 1
bConfigurationValue 1
iConfiguration 0
bmAttributes 0xe0
Self Powered
Remote Wakeup
MaxPower 0mA
Interface Descriptor:
bLength 9
bDescriptorType 4
bInterfaceNumber 0
bAlternateSetting 0
bNumEndpoints 1
bInterfaceClass 9 Hub
bInterfaceSubClass 0 [unknown]
bInterfaceProtocol 0 Full speed (or root) hub
iInterface 0
Endpoint Descriptor:
bLength 7
bDescriptorType 5
bEndpointAddress 0x81 EP 1 IN
bmAttributes 3
Transfer Type Interrupt
Synch Type None
Usage Type Data
wMaxPacketSize 0x0004 1x 4 bytes
bInterval 12
bMaxBurst 0
Binary Object Store Descriptor:
bLength 5
bDescriptorType 15
wTotalLength 0x000f
bNumDeviceCaps 1
SuperSpeed USB Device Capability:
bLength 10
bDescriptorType 16
bDevCapabilityType 3
bmAttributes 0x02
Latency Tolerance Messages (LTM) Supported
wSpeedsSupported 0x0008
Device can operate at SuperSpeed (5Gbps)
bFunctionalitySupport 1
Lowest fully-functional device speed is Full Speed (12Mbps)
bU1DevExitLat 10 micro seconds
bU2DevExitLat 512 micro seconds
Hub Descriptor:
bLength 12
bDescriptorType 42
nNbrPorts 7
wHubCharacteristic 0x000a
No power switching (usb 1.0)
Per-port overcurrent protection
bPwrOn2PwrGood 50 * 2 milli seconds
bHubContrCurrent 0 milli Ampere
bHubDecLat 0.0 micro seconds
wHubDelay 0 nano seconds
DeviceRemovable 0x00
Hub Port Status:
Port 1: 0000.02a0 5Gbps power Rx.Detect
Port 2: 0000.02a0 5Gbps power Rx.Detect
Port 3: 0000.02a0 5Gbps power Rx.Detect
Port 4: 0000.02a0 5Gbps power Rx.Detect
Port 5: 0000.02a0 5Gbps power Rx.Detect
Port 6: 0000.02a0 5Gbps power Rx.Detect
Port 7: 0000.02a0 5Gbps power Rx.Detect
Device Status: 0x0001
Self Powered
> bInterfaceClass 224 Wireless
> bInterfaceSubClass 1 Radio Frequency
> bInterfaceProtocol 1 Bluetooth
> iInterface 4 Bluetooth Radio
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x03 EP 3 OUT
> bmAttributes 1
> Transfer Type Isochronous
> Synch Type None
> Usage Type Data
> wMaxPacketSize 0x0031 1x 49 bytes
> bInterval 4
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x83 EP 3 IN
> bmAttributes 1
> Transfer Type Isochronous
> Synch Type None
> Usage Type Data
> wMaxPacketSize 0x0031 1x 49 bytes
> bInterval 4
> Interface Descriptor:
> bLength 9
> bDescriptorType 4
> bInterfaceNumber 2
> bAlternateSetting 0
> bNumEndpoints 6
> bInterfaceClass 255 Vendor Specific Class
> bInterfaceSubClass 255 Vendor Specific Subclass
> bInterfaceProtocol 255 Vendor Specific Protocol
> iInterface 2 802.11n WLAN Adapter
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x84 EP 4 IN
> bmAttributes 2
> Transfer Type Bulk
> Synch Type None
> Usage Type Data
> wMaxPacketSize 0x0200 1x 512 bytes
> bInterval 0
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x05 EP 5 OUT
> bmAttributes 2
> Transfer Type Bulk
> Synch Type None
> Usage Type Data
> wMaxPacketSize 0x0200 1x 512 bytes
> bInterval 0
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x06 EP 6 OUT
> bmAttributes 2
> Transfer Type Bulk
> Synch Type None
> Usage Type Data
> wMaxPacketSize 0x0200 1x 512 bytes
> bInterval 0
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x87 EP 7 IN
> bmAttributes 3
> Transfer Type Interrupt
> Synch Type None
> Usage Type Data
> wMaxPacketSize 0x0040 1x 64 bytes
> bInterval 3
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x08 EP 8 OUT
> bmAttributes 2
> Transfer Type Bulk
> Synch Type None
> Usage Type Data
> wMaxPacketSize 0x0200 1x 512 bytes
> bInterval 0
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x09 EP 9 OUT
> bmAttributes 2
> Transfer Type Bulk
> Synch Type None
> Usage Type Data
> wMaxPacketSize 0x0200 1x 512 bytes
> bInterval 0
> Device Qualifier (for other device speed):
> bLength 10
> bDescriptorType 6
> bcdUSB 2.00
> bDeviceClass 0 [unknown]
> bDeviceSubClass 0 [unknown]
> bDeviceProtocol 0
> bMaxPacketSize0 64
> bNumConfigurations 1
> Device Status: 0x0001
> Self Powered
>
> Bus 001 Device 004: ID 0bdc:0320 Y Media Corp. [unknown]
> Device Descriptor:
> bLength 18
> bDescriptorType 1
> bcdUSB 2.00
> bDeviceClass 239 Miscellaneous Device
> bDeviceSubClass 2 [unknown]
> bDeviceProtocol 1 Interface Association
> bMaxPacketSize0 64
> idVendor 0x0bdc Y Media Corp.
> idProduct 0x0320 [unknown]
> bcdDevice 1.01
> iManufacturer 3 MTD
> iProduct 1 USB Camera
> iSerial 2 20200618
> bNumConfigurations 1
> Configuration Descriptor:
> bLength 9
> bDescriptorType 2
> wTotalLength 0x0169
> bNumInterfaces 2
> bConfigurationValue 1
> iConfiguration 4 USB Camera
> bmAttributes 0x80
> (Bus Powered)
> MaxPower 500mA
> Interface Association:
> bLength 8
> bDescriptorType 11
> bFirstInterface 0
> bInterfaceCount 2
> bFunctionClass 14 Video
> bFunctionSubClass 3 Video Interface Collection
> bFunctionProtocol 0
> iFunction 5 USB Camera
> Interface Descriptor:
> bLength 9
> bDescriptorType 4
> bInterfaceNumber 0
> bAlternateSetting 0
> bNumEndpoints 1
> bInterfaceClass 14 Video
> bInterfaceSubClass 1 Video Control
> bInterfaceProtocol 0
> iInterface 5 USB Camera
> VideoControl Interface Descriptor:
> bLength 13
> bDescriptorType 36
> bDescriptorSubtype 1 (HEADER)
> bcdUVC 1.00
> wTotalLength 0x006b
> dwClockFrequency 15.000000MHz
> bInCollection 1
> baInterfaceNr( 0) 1
> VideoControl Interface Descriptor:
> bLength 18
> bDescriptorType 36
> bDescriptorSubtype 2 (INPUT_TERMINAL)
> bTerminalID 1
> wTerminalType 0x0201 Camera Sensor
> bAssocTerminal 0
> iTerminal 0
> wObjectiveFocalLengthMin 0
> wObjectiveFocalLengthMax 0
> wOcularFocalLength 0
> bControlSize 3
> bmControls 0x00002a0e
> Auto-Exposure Mode
> Auto-Exposure Priority
> Exposure Time (Absolute)
> Zoom (Absolute)
> PanTilt (Absolute)
> Roll (Absolute)
> VideoControl Interface Descriptor:
> bLength 11
> bDescriptorType 36
> bDescriptorSubtype 5 (PROCESSING_UNIT)
> Warning: Descriptor too short
> bUnitID 2
> bSourceID 1
> wMaxMultiplier 0
> bControlSize 2
> bmControls 0x0000177f
> Brightness
> Contrast
> Hue
> Saturation
> Sharpness
> Gamma
> White Balance Temperature
> Backlight Compensation
> Gain
> Power Line Frequency
> White Balance Temperature, Auto
> iProcessing 0
> bmVideoStandards 0x09
> None
> SECAM - 625/50
> VideoControl Interface Descriptor:
> bLength 9
> bDescriptorType 36
> bDescriptorSubtype 3 (OUTPUT_TERMINAL)
> bTerminalID 3
> wTerminalType 0x0101 USB Streaming
> bAssocTerminal 0
> bSourceID 2
> iTerminal 0
> VideoControl Interface Descriptor:
> bLength 27
> bDescriptorType 36
> bDescriptorSubtype 6 (EXTENSION_UNIT)
> bUnitID 4
> guidExtensionCode {1229a78c-47b4-4094-b0ce-db07386fb938}
> bNumControls 2
> bNrInPins 1
> baSourceID( 0) 1
> bControlSize 2
> bmControls( 0) 0x00
> bmControls( 1) 0x06
> iExtension 0
> VideoControl Interface Descriptor:
> bLength 29
> bDescriptorType 36
> bDescriptorSubtype 6 (EXTENSION_UNIT)
> bUnitID 7
> guidExtensionCode {0fb885c3-68c2-4547-90f7-8f47579d95fc}
> bNumControls 0
> bNrInPins 1
> baSourceID( 0) 3
> bControlSize 4
> bmControls( 0) 0x0f
> bmControls( 1) 0x00
> bmControls( 2) 0x00
> bmControls( 3) 0x00
> iExtension 0
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x83 EP 3 IN
> bmAttributes 3
> Transfer Type Interrupt
> Synch Type None
> Usage Type Data
> wMaxPacketSize 0x0010 1x 16 bytes
> bInterval 6
> Interface Descriptor:
> bLength 9
> bDescriptorType 4
> bInterfaceNumber 1
> bAlternateSetting 0
> bNumEndpoints 0
> bInterfaceClass 14 Video
> bInterfaceSubClass 2 Video Streaming
> bInterfaceProtocol 0
> iInterface 0
> VideoStreaming Interface Descriptor:
> bLength 14
> bDescriptorType 36
> bDescriptorSubtype 1 (INPUT_HEADER)
> bNumFormats 1
> wTotalLength 0x005f
> bEndpointAddress 0x81 EP 1 IN
> bmInfo 0
> bTerminalLink 3
> bStillCaptureMethod 2
> bTriggerSupport 1
> bTriggerUsage 0
> bControlSize 1
> bmaControls( 0) 0
> VideoStreaming Interface Descriptor:
> bLength 27
> bDescriptorType 36
> bDescriptorSubtype 4 (FORMAT_UNCOMPRESSED)
> bFormatIndex 1
> bNumFrameDescriptors 1
> guidFormat {32595559-0000-0010-8000-00aa00389b71}
> bBitsPerPixel 16
> bDefaultFrameIndex 1
> bAspectRatioX 0
> bAspectRatioY 0
> bmInterlaceFlags 0x00
> Interlaced stream or variable: No
> Fields per frame: 2 fields
> Field 1 first: No
> Field pattern: Field 1 only
> bCopyProtect 0
> VideoStreaming Interface Descriptor:
> bLength 38
> bDescriptorType 36
> bDescriptorSubtype 5 (FRAME_UNCOMPRESSED)
> bFrameIndex 1
> bmCapabilities 0x00
> Still image unsupported
> wWidth 640
> wHeight 480
> dwMinBitRate 98304000
> dwMaxBitRate 147456000
> dwMaxVideoFrameBufferSize 614400
> dwDefaultFrameInterval 333333
> bFrameIntervalType 3
> dwFrameInterval( 0) 333333
> dwFrameInterval( 1) 400000
> dwFrameInterval( 2) 500000
> VideoStreaming Interface Descriptor:
> bLength 10
> bDescriptorType 36
> bDescriptorSubtype 3 (STILL_IMAGE_FRAME)
> bEndpointAddress 0x00 EP 0 OUT
> bNumImageSizePatterns 1
> wWidth( 0) 640
> wHeight( 0) 480
> bNumCompressionPatterns 0
> VideoStreaming Interface Descriptor:
> bLength 6
> bDescriptorType 36
> bDescriptorSubtype 13 (COLORFORMAT)
> bColorPrimaries 1 (BT.709,sRGB)
> bTransferCharacteristics 1 (BT.709)
> bMatrixCoefficients 4 (SMPTE 170M (BT.601))
> Interface Descriptor:
> bLength 9
> bDescriptorType 4
> bInterfaceNumber 1
> bAlternateSetting 1
> bNumEndpoints 1
> bInterfaceClass 14 Video
> bInterfaceSubClass 2 Video Streaming
> bInterfaceProtocol 0
> iInterface 0
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x81 EP 1 IN
> bmAttributes 5
> Transfer Type Isochronous
> Synch Type Asynchronous
> Usage Type Data
> wMaxPacketSize 0x0080 1x 128 bytes
> bInterval 1
> Interface Descriptor:
> bLength 9
> bDescriptorType 4
> bInterfaceNumber 1
> bAlternateSetting 2
> bNumEndpoints 1
> bInterfaceClass 14 Video
> bInterfaceSubClass 2 Video Streaming
> bInterfaceProtocol 0
> iInterface 0
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x81 EP 1 IN
> bmAttributes 5
> Transfer Type Isochronous
> Synch Type Asynchronous
> Usage Type Data
> wMaxPacketSize 0x0200 1x 512 bytes
> bInterval 1
> Interface Descriptor:
> bLength 9
> bDescriptorType 4
> bInterfaceNumber 1
> bAlternateSetting 3
> bNumEndpoints 1
> bInterfaceClass 14 Video
> bInterfaceSubClass 2 Video Streaming
> bInterfaceProtocol 0
> iInterface 0
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x81 EP 1 IN
> bmAttributes 5
> Transfer Type Isochronous
> Synch Type Asynchronous
> Usage Type Data
> wMaxPacketSize 0x0400 1x 1024 bytes
> bInterval 1
> Interface Descriptor:
> bLength 9
> bDescriptorType 4
> bInterfaceNumber 1
> bAlternateSetting 4
> bNumEndpoints 1
> bInterfaceClass 14 Video
> bInterfaceSubClass 2 Video Streaming
> bInterfaceProtocol 0
> iInterface 0
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x81 EP 1 IN
> bmAttributes 5
> Transfer Type Isochronous
> Synch Type Asynchronous
> Usage Type Data
> wMaxPacketSize 0x0b00 2x 768 bytes
> bInterval 1
> Interface Descriptor:
> bLength 9
> bDescriptorType 4
> bInterfaceNumber 1
> bAlternateSetting 5
> bNumEndpoints 1
> bInterfaceClass 14 Video
> bInterfaceSubClass 2 Video Streaming
> bInterfaceProtocol 0
> iInterface 0
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x81 EP 1 IN
> bmAttributes 5
> Transfer Type Isochronous
> Synch Type Asynchronous
> Usage Type Data
> wMaxPacketSize 0x0c00 2x 1024 bytes
> bInterval 1
> Interface Descriptor:
> bLength 9
> bDescriptorType 4
> bInterfaceNumber 1
> bAlternateSetting 6
> bNumEndpoints 1
> bInterfaceClass 14 Video
> bInterfaceSubClass 2 Video Streaming
> bInterfaceProtocol 0
> iInterface 0
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x81 EP 1 IN
> bmAttributes 5
> Transfer Type Isochronous
> Synch Type Asynchronous
> Usage Type Data
> wMaxPacketSize 0x1380 3x 896 bytes
> bInterval 1
> Interface Descriptor:
> bLength 9
> bDescriptorType 4
> bInterfaceNumber 1
> bAlternateSetting 7
> bNumEndpoints 1
> bInterfaceClass 14 Video
> bInterfaceSubClass 2 Video Streaming
> bInterfaceProtocol 0
> iInterface 0
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x81 EP 1 IN
> bmAttributes 5
> Transfer Type Isochronous
> Synch Type Asynchronous
> Usage Type Data
> wMaxPacketSize 0x1400 3x 1024 bytes
> bInterval 1
> Device Qualifier (for other device speed):
> bLength 10
> bDescriptorType 6
> bcdUSB 2.00
> bDeviceClass 239 Miscellaneous Device
> bDeviceSubClass 2 [unknown]
> bDeviceProtocol 1 Interface Association
> bMaxPacketSize0 64
> bNumConfigurations 1
> Device Status: 0x0000
> (Bus Powered)
>
> Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
> Device Descriptor:
> bLength 18
> bDescriptorType 1
> bcdUSB 3.00
> bDeviceClass 9 Hub
> bDeviceSubClass 0 [unknown]
> bDeviceProtocol 3
> bMaxPacketSize0 9
> idVendor 0x1d6b Linux Foundation
> idProduct 0x0003 3.0 root hub
> bcdDevice 6.05
> iManufacturer 3 Linux 6.5.9-arch2-1 xhci-hcd
> iProduct 2 xHCI Host Controller
> iSerial 1 0000:00:15.0
> bNumConfigurations 1
> Configuration Descriptor:
> bLength 9
> bDescriptorType 2
> wTotalLength 0x001f
> bNumInterfaces 1
> bConfigurationValue 1
> iConfiguration 0
> bmAttributes 0xe0
> Self Powered
> Remote Wakeup
> MaxPower 0mA
> Interface Descriptor:
> bLength 9
> bDescriptorType 4
> bInterfaceNumber 0
> bAlternateSetting 0
> bNumEndpoints 1
> bInterfaceClass 9 Hub
> bInterfaceSubClass 0 [unknown]
> bInterfaceProtocol 0 Full speed (or root) hub
> iInterface 0
> Endpoint Descriptor:
> bLength 7
> bDescriptorType 5
> bEndpointAddress 0x81 EP 1 IN
> bmAttributes 3
> Transfer Type Interrupt
> Synch Type None
> Usage Type Data
> wMaxPacketSize 0x0004 1x 4 bytes
> bInterval 12
> bMaxBurst 0
> Binary Object Store Descriptor:
> bLength 5
> bDescriptorType 15
> wTotalLength 0x000f
> bNumDeviceCaps 1
> SuperSpeed USB Device Capability:
> bLength 10
> bDescriptorType 16
> bDevCapabilityType 3
> bmAttributes 0x02
> Latency Tolerance Messages (LTM) Supported
> wSpeedsSupported 0x0008
> Device can operate at SuperSpeed (5Gbps)
> bFunctionalitySupport 1
> Lowest fully-functional device speed is Full Speed (12Mbps)
> bU1DevExitLat 10 micro seconds
> bU2DevExitLat 512 micro seconds
> Hub Descriptor:
> bLength 12
> bDescriptorType 42
> nNbrPorts 7
> wHubCharacteristic 0x000a
> No power switching (usb 1.0)
> Per-port overcurrent protection
> bPwrOn2PwrGood 50 * 2 milli seconds
> bHubContrCurrent 0 milli Ampere
> bHubDecLat 0.0 micro seconds
> wHubDelay 0 nano seconds
> DeviceRemovable 0x00
> Hub Port Status:
> Port 1: 0000.02a0 5Gbps power Rx.Detect
> Port 2: 0000.02a0 5Gbps power Rx.Detect
> Port 3: 0000.02a0 5Gbps power Rx.Detect
> Port 4: 0000.02a0 5Gbps power Rx.Detect
> Port 5: 0000.02a0 5Gbps power Rx.Detect
> Port 6: 0000.02a0 5Gbps power Rx.Detect
> Port 7: 0000.02a0 5Gbps power Rx.Detect
> Device Status: 0x0001
> Self Powered
> sudo dmesg | grep usbcore
> [ 0.535043] usbcore: registered new interface driver usbfs
> [ 0.535043] usbcore: registered new interface driver hub
> [ 0.535043] usbcore: registered new device driver usb
> [ 0.718607] usbcore: registered new interface driver usbserial_generic
> [ 4.902434] usbcore: registered new interface driver usbhid
> [ 7.413283] usbcore: registered new interface driver btusb
> [ 7.451781] usbcore: registered new interface driver uvcvideo
> [ 8.365245] usbcore: registered new interface driver rtw_8723du
I wanted to thank you for taking some of your time to help me resolve this issue, I appreciate it.
Looks like we your wifi card is a Realtek rtw_8723du which combines wifi + bluetooth functionality. So definitely more sophisticated then what I have used in the past.
This is the manufacturers page: https://www.realtek.com/en/products/communications-network-ics/item/rtl8723du
So if you use the LTS Kernel, then you will need to install a driver like this one from the Arch AUR:
https://aur.archlinux.org/packages/rtl8723du-dkms-git
@dalto I need some wisdom from you. Based on this long post we have figured out that Hectors laptop:
Is using a Realtek rtl8723du wifi\bluetooth combie card which is connected to the USB interface.
The LTS Kernel does not have a driver to support this bluetooth\wifi card.
The 6.5.9-arch2-1 kernel does support the wifi card (But connectivity is unstable and just drops connections randomly).
It seems the best solution here is to install the rtl8723du-dkms-git driver package from the AUR and try this with the LTS Kernel:
Install yay as the AUR helper:
sudo pacman -S yay
Install the rtl8723du-dkms-git driver
yay -S rtl8723du-dkms-git
Reboot laptop and use LTS Kernel and test wifi with the new driver.
Is there another solution we should consider? Thanks
@hrmb26
I did a little more looking around … looks like someone else also had stability issues with the same Realtek model as you.
hrmb26
November 3, 2023, 11:01am
18
I installed it with yay and on the LTS kernel still no wifi
I was doing some reading here:
https://wireless.wiki.kernel.org/en/users/drivers/rtl819x?s[]=rtl8723du
Maybe we try switching to the newer Realtek drivers to see if that helps:
Uninstall the rtl8723du-dkms-git
yay -R rtl8723du-dkms-git
Install the Realtek driver pack updated in April of 2023:
yay -S rtw88-dkms-git
Reboot (hope you have been rebooting when we did the other installs too?)
If this fails, then I would put a new post in the forum asking for suggestions for a dedicated usb wifi card. Right now I have a TP Link in my wifes spare machine. But not sure it is the best choice.
hrmb26
November 5, 2023, 10:52am
20
Good morning, Randy. With the first driver didn’t work now I’ve installed the second one and finally got wifi working on the LTS and tested downloading some updates on steam and didn’t get disconnections.
Sorry I didn’t reply earlier but was kind of busy with work, and today I finally managed to get some time.
EDIT: tried updating the system and got a disconnection.
