Getting audio to work over HDMI

jul.cgn · February 5, 2025, 8:52am

I know there’s this other thread, but I don’t want to be rude and take over OP’s problem.

I’m also trying to make audio over HDMI to work on my laptop.

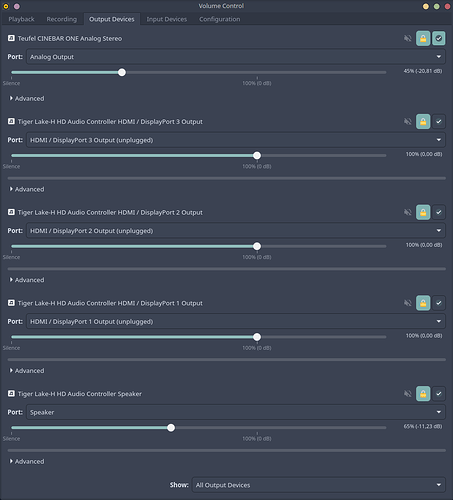

As recommended, I tried turning off internal audio devices via pavucontrol.

But it seems that HDMI Audio is supposed to be channeled via my internal audio device as you can see in my next screenshot, where HDMI channels are reporting ‘unplugged’. And indeed, if I play some audio through these, my TV doesn’t play any audio.

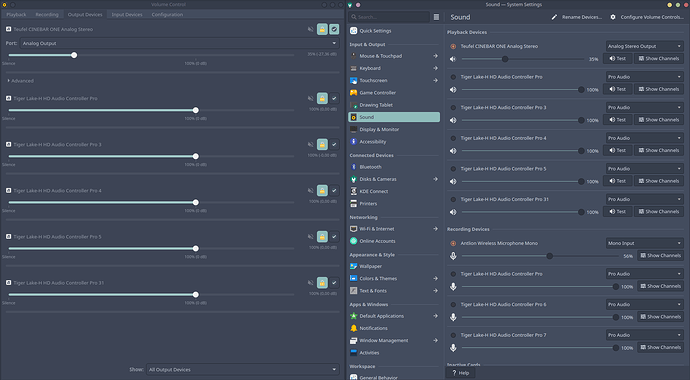

Selecting Pro Audio as the audio profile and playing through any channels ends up with the same result.

Any tips on what I can try?

dbarronoss · February 5, 2025, 9:00am

It just ‘works’ for me. No idea why or why not. I was actually surprised when I did a reinstall and sound started coming out of my monitor (vs my speakers) by default.

jul.cgn · February 5, 2025, 10:05am

I also tried setting snd-intel-dspcfg.dsp_driver=3 or 1 in my kernel params as is mentioned in the framework laptop forums (I don’t have a framework laptop)

I also unplugged everything besides the HDMI cable.

No success. The HDMI audio channels stay ‘unplugged’.

EDIT: Some more info

lspci | grep -i audio
00:1f.3 Multimedia audio controller: Intel Corporation Tiger Lake-H HD Audio Controller (rev 11)

sudo dmesg | grep snd
[    7.107673] snd_hda_intel 0000:00:1f.3: Digital mics found on Skylake+ platform, using SOF driver
[    8.168498] usbcore: registered new interface driver snd-usb-audio
[    8.365016] snd_hda_codec_realtek ehdaudio0D0: ALC289: picked fixup  (pin match)
[    8.365448] snd_hda_codec_realtek ehdaudio0D0: autoconfig for ALC289: line_outs=1 (0x14/0x0/0x0/0x0/0x0) type:speaker
[    8.365450] snd_hda_codec_realtek ehdaudio0D0:    speaker_outs=0 (0x0/0x0/0x0/0x0/0x0)
[    8.365451] snd_hda_codec_realtek ehdaudio0D0:    hp_outs=1 (0x21/0x0/0x0/0x0/0x0)
[    8.365452] snd_hda_codec_realtek ehdaudio0D0:    mono: mono_out=0x0
[    8.365453] snd_hda_codec_realtek ehdaudio0D0:    inputs:
[    8.365454] snd_hda_codec_realtek ehdaudio0D0:      Headset Mic=0x19
[    8.365454] snd_hda_codec_realtek ehdaudio0D0:      Headphone Mic=0x1b

aplay -l
**** List of PLAYBACK Hardware Devices ****
card 0: Audio [USB Audio], device 0: USB Audio [USB Audio]
  Subdevices: 1/1
  Subdevice #0: subdevice #0
card 3: ONE [Teufel CINEBAR ONE], device 0: USB Audio [USB Audio]
  Subdevices: 1/1
  Subdevice #0: subdevice #0
card 4: sofhdadsp [sof-hda-dsp], device 0: HDA Analog (*) []
  Subdevices: 1/1
  Subdevice #0: subdevice #0
card 4: sofhdadsp [sof-hda-dsp], device 3: HDMI1 (*) []
  Subdevices: 1/1
  Subdevice #0: subdevice #0
card 4: sofhdadsp [sof-hda-dsp], device 4: HDMI2 (*) []
  Subdevices: 1/1
  Subdevice #0: subdevice #0
card 4: sofhdadsp [sof-hda-dsp], device 5: HDMI3 (*) []
  Subdevices: 1/1
  Subdevice #0: subdevice #0
card 4: sofhdadsp [sof-hda-dsp], device 31: HDA Analog Deep Buffer (*) []
  Subdevices: 1/1
  Subdevice #0: subdevice #0

inxi -Ax
Audio:
  Device-1: Intel Tiger Lake-H HD Audio vendor: Dell
    driver: sof-audio-pci-intel-tgl bus-ID: 00:1f.3
  Device-2: Anker PowerConf C200
    driver: hid-generic,snd-usb-audio,usbhid,uvcvideo type: USB
    bus-ID: 3-2.1.2.2:15
  Device-3: Realtek USB Audio driver: hid-generic,snd-usb-audio,usbhid
    type: USB bus-ID: 3-2.1.3:10
  Device-4: Antlion Audio Wireless Microphone
    driver: hid-generic,snd-usb-audio,usbhid type: USB bus-ID: 3-2.3.2:14
  Device-5: Lautsprecher Teufel GmbH CINEBAR ONE
    driver: hid-generic,snd-usb-audio,usbhid type: USB bus-ID: 3-2.3.4.4:18
  API: ALSA v: k6.13.1-arch1-1 status: kernel-api
  Server-1: PipeWire v: 1.2.7 status: active

pactl list cards && pactl list sinks
Card #45
        Name: alsa_card.usb-Anker_PowerConf_C200_Anker_PowerConf_C200_ACNV9P1D52666798-02
        Driver: alsa
        Owner Module: n/a
        Properties:
                api.acp.auto-port = "false"
                api.acp.auto-profile = "false"
                api.alsa.card = "2"
                api.alsa.card.longname = "Anker PowerConf C200 Anker PowerConf C200 at usb-0000:00:14.0-2.1.2.2, high spe"
                api.alsa.card.name = "Anker PowerConf C200"
                api.alsa.path = "hw:2"
                api.alsa.use-acp = "true"
                api.dbus.ReserveDevice1 = "Audio2"
                api.dbus.ReserveDevice1.Priority = "-20"
                device.api = "alsa"
                device.bus = "usb"
                device.bus-id = "usb-Anker_PowerConf_C200_Anker_PowerConf_C200_ACNV9P1D52666798-02"
                device.bus_path = "pci-0000:00:14.0-usb-0:2.1.2.2:1.2"
                device.description = "Anker PowerConf C200"
                device.enum.api = "udev"
                device.form_factor = "webcam"
                device.icon_name = "camera-web-analog-usb"
                device.name = "alsa_card.usb-Anker_PowerConf_C200_Anker_PowerConf_C200_ACNV9P1D52666798-02"
                device.nick = "Anker PowerConf C200"
                device.plugged.usec = "7994717"
                device.product.id = "0x3369"
                device.product.name = "Anker PowerConf C200"
                device.serial = "Anker_PowerConf_C200_Anker_PowerConf_C200_ACNV9P1D52666798"
                device.subsystem = "sound"
                sysfs.path = "/devices/pci0000:00/0000:00:14.0/usb3/3-2/3-2.1/3-2.1.2/3-2.1.2.2/3-2.1.2.2:1.2/sound/card2"
                device.vendor.id = "0x291a"
                device.vendor.name = "Anker PowerConf C200"
                media.class = "Audio/Device"
                factory.id = "15"
                client.id = "41"
                object.id = "45"
                object.serial = "45"
                object.path = "alsa:acp:C200"
                alsa.card = "2"
                alsa.card_name = "Anker PowerConf C200"
                alsa.long_card_name = "Anker PowerConf C200 Anker PowerConf C200 at usb-0000:00:14.0-2.1.2.2, high spe"
                alsa.driver_name = "snd_usb_audio"
                alsa.mixer_name = "USB Mixer"
                alsa.components = "USB291a:3369"
                alsa.id = "C200"
                device.string = "2"
        Profiles:
                off: Off (sinks: 0, sources: 0, priority: 0, available: yes)
                input:analog-stereo: Analog Stereo Input (sinks: 0, sources: 1, priority: 65, available: yes)
                input:iec958-stereo: Digital Stereo (IEC958) Input (sinks: 0, sources: 1, priority: 55, available: yes)
                pro-audio: Pro Audio (sinks: 0, sources: 1, priority: 1, available: yes)
        Active Profile: off
        Ports:
                analog-input-mic: Microphone (type: Mic, priority: 8700, latency offset: 0 usec, availability unknown)
                        Properties:
                                port.type = "mic"
                                device.icon_name = "audio-input-microphone"
                                card.profile.port = "0"
                        Part of profile(s): input:analog-stereo
                iec958-stereo-input: Digital Input (S/PDIF) (type: SPDIF, priority: 0, latency offset: 0 usec, availability unknown)
                        Properties:
                                port.type = "spdif"
                                card.profile.port = "1"
                        Part of profile(s): input:iec958-stereo

Card #46
        Name: alsa_card.usb-Generic_USB_Audio_201405280001-00
        Driver: alsa
        Owner Module: n/a
        Properties:
                api.acp.auto-port = "false"
                api.acp.auto-profile = "false"
                api.alsa.card = "0"
                api.alsa.card.longname = "Generic USB Audio at usb-0000:00:14.0-2.1.3, high speed"
                api.alsa.card.name = "USB Audio"
                api.alsa.path = "hw:0"
                api.alsa.use-acp = "true"
                api.dbus.ReserveDevice1 = "Audio0"
                api.dbus.ReserveDevice1.Priority = "-20"
                device.api = "alsa"
                device.bus = "usb"
                device.bus-id = "usb-Generic_USB_Audio_201405280001-00"
                device.bus_path = "pci-0000:00:14.0-usb-0:2.1.3:1.0"
                device.description = "USB Audio"
                device.enum.api = "udev"
                device.icon_name = "audio-card-analog-usb"
                device.name = "alsa_card.usb-Generic_USB_Audio_201405280001-00"
                device.nick = "USB Audio"
                device.plugged.usec = "7983456"
                device.product.id = "0x482a"
                device.product.name = "USB Audio"
                device.serial = "Generic_USB_Audio_201405280001"
                device.subsystem = "sound"
                sysfs.path = "/devices/pci0000:00/0000:00:14.0/usb3/3-2/3-2.1/3-2.1.3/3-2.1.3:1.0/sound/card0"
                device.vendor.id = "0x0bda"
                device.vendor.name = "Realtek Semiconductor Corp."
                media.class = "Audio/Device"
                factory.id = "15"
                client.id = "41"
                object.id = "46"
                object.serial = "46"
                object.path = "alsa:acp:Audio"
                alsa.card = "0"
                alsa.card_name = "USB Audio"
                alsa.long_card_name = "Generic USB Audio at usb-0000:00:14.0-2.1.3, high speed"
                alsa.driver_name = "snd_usb_audio"
                alsa.mixer_name = "USB Mixer"
                alsa.components = "USB0bda:482a"
                alsa.id = "Audio"
                device.string = "0"
        Profiles:
                off: Off (sinks: 0, sources: 0, priority: 0, available: yes)
                output:analog-stereo+input:analog-stereo: Analog Stereo Duplex (sinks: 1, sources: 1, priority: 6565, available: yes)
                output:analog-stereo+input:iec958-stereo: Analog Stereo Output + Digital Stereo (IEC958) Input (sinks: 1, sources: 1, priority: 6555, available: yes)
                output:analog-stereo: Analog Stereo Output (sinks: 1, sources: 0, priority: 6500, available: yes)
                output:iec958-stereo+input:analog-stereo: Digital Stereo (IEC958) Output + Analog Stereo Input (sinks: 1, sources: 1, priority: 5565, available: yes)
                output:iec958-stereo+input:iec958-stereo: Digital Stereo Duplex (IEC958) (sinks: 1, sources: 1, priority: 5555, available: yes)
                output:iec958-stereo: Digital Stereo (IEC958) Output (sinks: 1, sources: 0, priority: 5500, available: yes)
                output:iec958-ac3-surround-51+input:analog-stereo: Digital Surround 5.1 (IEC958/AC3) Output + Analog Stereo Input (sinks: 1, sources: 1, priority: 365, available: yes)
                output:iec958-ac3-surround-51+input:iec958-stereo: Digital Surround 5.1 (IEC958/AC3) Output + Digital Stereo (IEC958) Input (sinks: 1, sources: 1, priority: 355, available: yes)
                output:iec958-ac3-surround-51: Digital Surround 5.1 (IEC958/AC3) Output (sinks: 1, sources: 0, priority: 300, available: yes)
                input:analog-stereo: Analog Stereo Input (sinks: 0, sources: 1, priority: 65, available: yes)
                input:iec958-stereo: Digital Stereo (IEC958) Input (sinks: 0, sources: 1, priority: 55, available: yes)
                pro-audio: Pro Audio (sinks: 1, sources: 1, priority: 1, available: yes)
        Active Profile: off
        Ports:
                analog-input-mic: Microphone (type: Mic, priority: 8700, latency offset: 0 usec, availability unknown)
                        Properties:
                                port.type = "mic"
                                device.icon_name = "audio-input-microphone"
                                card.profile.port = "0"
                        Part of profile(s): input:analog-stereo, output:analog-stereo+input:analog-stereo, output:iec958-stereo+input:analog-stereo, output:iec958-ac3-surround-51+input:analog-stereo
                iec958-stereo-input: Digital Input (S/PDIF) (type: SPDIF, priority: 0, latency offset: 0 usec, availability unknown)
                        Properties:
                                port.type = "spdif"
                                card.profile.port = "1"
                        Part of profile(s): input:iec958-stereo, output:analog-stereo+input:iec958-stereo, output:iec958-stereo+input:iec958-stereo, output:iec958-ac3-surround-51+input:iec958-stereo
                analog-output-headphones: Headphones (type: Headphones, priority: 9900, latency offset: 0 usec, availability unknown)
                        Properties:
                                port.type = "headphones"
                                device.icon_name = "audio-headphones"
                                card.profile.port = "2"
                        Part of profile(s): output:analog-stereo, output:analog-stereo+input:analog-stereo, output:analog-stereo+input:iec958-stereo
                iec958-stereo-output: Digital Output (S/PDIF) (type: SPDIF, priority: 0, latency offset: 0 usec, availability unknown)
                        Properties:
                                port.type = "spdif"
                                card.profile.port = "3"
                        Part of profile(s): output:iec958-stereo, output:iec958-stereo+input:analog-stereo, output:iec958-stereo+input:iec958-stereo

Card #47
        Name: alsa_card.usb-Antlion_Audio_Antlion_Wireless_Microphone-00
        Driver: alsa
        Owner Module: n/a
        Properties:
                api.acp.auto-port = "false"
                api.acp.auto-profile = "false"
                api.alsa.card = "1"
                api.alsa.card.longname = "Antlion Audio Antlion Wireless Microphone at usb-0000:00:14.0-2.3.2, full speed"
                api.alsa.card.name = "Antlion Wireless Microphone"
                api.alsa.path = "hw:1"
                api.alsa.use-acp = "true"
                api.dbus.ReserveDevice1 = "Audio1"
                api.dbus.ReserveDevice1.Priority = "-20"
                device.api = "alsa"
                device.bus = "usb"
                device.bus-id = "usb-Antlion_Audio_Antlion_Wireless_Microphone-00"
                device.bus_path = "pci-0000:00:14.0-usb-0:2.3.2:1.0"
                device.description = "Antlion Wireless Microphone"
                device.enum.api = "udev"
                device.form_factor = "microphone"
                device.icon_name = "audio-input-microphone-analog-usb"
                device.name = "alsa_card.usb-Antlion_Audio_Antlion_Wireless_Microphone-00"
                device.nick = "Antlion Wireless Microphone"
                device.plugged.usec = "7991824"
                device.product.id = "0x0100"
                device.product.name = "Antlion Wireless Microphone"
                device.serial = "Antlion_Audio_Antlion_Wireless_Microphone"
                device.subsystem = "sound"
                sysfs.path = "/devices/pci0000:00/0000:00:14.0/usb3/3-2/3-2.3/3-2.3.2/3-2.3.2:1.0/sound/card1"
                device.vendor.id = "0x2f96"
                device.vendor.name = "Antlion Audio"
                media.class = "Audio/Device"
                factory.id = "15"
                client.id = "41"
                object.id = "47"
                object.serial = "47"
                object.path = "alsa:acp:Microphone"
                alsa.card = "1"
                alsa.card_name = "Antlion Wireless Microphone"
                alsa.long_card_name = "Antlion Audio Antlion Wireless Microphone at usb-0000:00:14.0-2.3.2, full speed"
                alsa.driver_name = "snd_usb_audio"
                alsa.mixer_name = "USB Mixer"
                alsa.components = "USB2f96:0100"
                alsa.id = "Microphone"
                device.string = "1"
        Profiles:
                off: Off (sinks: 0, sources: 0, priority: 0, available: yes)
                pro-audio: Pro Audio (sinks: 0, sources: 1, priority: 1, available: yes)
                input:mono-fallback: Mono Input (sinks: 0, sources: 1, priority: 1, available: yes)
        Active Profile: input:mono-fallback
        Ports:
                analog-input-mic: Microphone (type: Mic, priority: 8700, latency offset: 0 usec, availability unknown)
                        Properties:
                                port.type = "mic"
                                device.icon_name = "audio-input-microphone"
                                card.profile.port = "0"
                        Part of profile(s): input:mono-fallback

Card #48
        Name: alsa_card.usb-Lautsprecher_Teufel_GmbH_Teufel_CINEBAR_ONE_ABCDEF0123456789-00
        Driver: alsa
        Owner Module: n/a
        Properties:
                api.acp.auto-port = "false"
                api.acp.auto-profile = "false"
                api.alsa.card = "3"
                api.alsa.card.longname = "Lautsprecher Teufel GmbH Teufel CINEBAR ONE at usb-0000:00:14.0-2.3.4.4, full s"
                api.alsa.card.name = "Teufel CINEBAR ONE"
                api.alsa.path = "hw:3"
                api.alsa.use-acp = "true"
                api.dbus.ReserveDevice1 = "Audio3"
                api.dbus.ReserveDevice1.Priority = "-20"
                device.api = "alsa"
                device.bus = "usb"
                device.bus-id = "usb-Lautsprecher_Teufel_GmbH_Teufel_CINEBAR_ONE_ABCDEF0123456789-00"
                device.bus_path = "pci-0000:00:14.0-usb-0:2.3.4.4:1.0"
                device.description = "Teufel CINEBAR ONE"
                device.enum.api = "udev"
                device.icon_name = "audio-card-analog-usb"
                device.name = "alsa_card.usb-Lautsprecher_Teufel_GmbH_Teufel_CINEBAR_ONE_ABCDEF0123456789-00"
                device.nick = "Teufel CINEBAR ONE"
                device.plugged.usec = "8161816"
                device.product.id = "0x0027"
                device.product.name = "Teufel CINEBAR ONE"
                device.serial = "Lautsprecher_Teufel_GmbH_Teufel_CINEBAR_ONE_ABCDEF0123456789"
                device.subsystem = "sound"
                sysfs.path = "/devices/pci0000:00/0000:00:14.0/usb3/3-2/3-2.3/3-2.3.4/3-2.3.4.4/3-2.3.4.4:1.0/sound/card3"
                device.vendor.id = "0x2cc2"
                device.vendor.name = "Lautsprecher Teufel GmbH"
                media.class = "Audio/Device"
                factory.id = "15"
                client.id = "41"
                object.id = "48"
                object.serial = "48"
                object.path = "alsa:acp:ONE"
                alsa.card = "3"
                alsa.card_name = "Teufel CINEBAR ONE"
                alsa.long_card_name = "Lautsprecher Teufel GmbH Teufel CINEBAR ONE at usb-0000:00:14.0-2.3.4.4, full s"
                alsa.driver_name = "snd_usb_audio"
                alsa.mixer_name = "USB Mixer"
                alsa.components = "USB2cc2:0027"
                alsa.id = "ONE"
                device.string = "3"
        Profiles:
                off: Off (sinks: 0, sources: 0, priority: 0, available: yes)
                output:analog-stereo+input:mono-fallback: Analog Stereo Output + Mono Input (sinks: 1, sources: 1, priority: 6501, available: yes)
                output:analog-stereo: Analog Stereo Output (sinks: 1, sources: 0, priority: 6500, available: yes)
                output:iec958-stereo+input:mono-fallback: Digital Stereo (IEC958) Output + Mono Input (sinks: 1, sources: 1, priority: 5501, available: yes)
                output:iec958-stereo: Digital Stereo (IEC958) Output (sinks: 1, sources: 0, priority: 5500, available: yes)
                output:iec958-ac3-surround-51+input:mono-fallback: Digital Surround 5.1 (IEC958/AC3) Output + Mono Input (sinks: 1, sources: 1, priority: 301, available: yes)
                output:iec958-ac3-surround-51: Digital Surround 5.1 (IEC958/AC3) Output (sinks: 1, sources: 0, priority: 300, available: yes)
                pro-audio: Pro Audio (sinks: 1, sources: 1, priority: 1, available: yes)
                input:mono-fallback: Mono Input (sinks: 0, sources: 1, priority: 1, available: yes)
        Active Profile: output:analog-stereo
        Ports:
                analog-input-mic: Microphone (type: Mic, priority: 8700, latency offset: 0 usec, availability unknown)
                        Properties:
                                port.type = "mic"
                                device.icon_name = "audio-input-microphone"
                                card.profile.port = "0"
                        Part of profile(s): input:mono-fallback, output:analog-stereo+input:mono-fallback, output:iec958-stereo+input:mono-fallback, output:iec958-ac3-surround-51+input:mono-fallback
                analog-output: Analog Output (type: Analog, priority: 9900, latency offset: 0 usec, availability unknown)
                        Properties:
                                port.type = "analog"
                                card.profile.port = "1"
                        Part of profile(s): output:analog-stereo, output:analog-stereo+input:mono-fallback
                iec958-stereo-output: Digital Output (S/PDIF) (type: SPDIF, priority: 0, latency offset: 0 usec, availability unknown)
                        Properties:
                                port.type = "spdif"
                                card.profile.port = "2"
                        Part of profile(s): output:iec958-stereo, output:iec958-stereo+input:mono-fallback

Card #49
        Name: alsa_card.pci-0000_00_1f.3-platform-skl_hda_dsp_generic
        Driver: alsa
        Owner Module: n/a
        Properties:
                api.acp.auto-port = "false"
                api.acp.auto-profile = "false"
                api.alsa.card = "4"
                api.alsa.card.longname = "Alienware-Alienwarex17R1-1.24.0"
                api.alsa.card.name = "sof-hda-dsp"
                api.alsa.path = "hw:4"
                api.alsa.use-acp = "true"
                api.dbus.ReserveDevice1 = "Audio4"
                api.dbus.ReserveDevice1.Priority = "-20"
                device.api = "alsa"
                device.bus = "pci"
                device.bus_path = "pci-0000:00:1f.3-platform-skl_hda_dsp_generic"
                device.description = "Tiger Lake-H HD Audio Controller"
                device.enum.api = "udev"
                device.icon_name = "audio-card-analog-pci"
                device.name = "alsa_card.pci-0000_00_1f.3-platform-skl_hda_dsp_generic"
                device.nick = "sof-hda-dsp"
                device.plugged.usec = "9189871"
                device.product.id = "0x43c8"
                device.product.name = "Tiger Lake-H HD Audio Controller"
                device.subsystem = "sound"
                sysfs.path = "/devices/pci0000:00/0000:00:1f.3/skl_hda_dsp_generic/sound/card4"
                device.vendor.id = "0x8086"
                device.vendor.name = "Intel Corporation"
                media.class = "Audio/Device"
                factory.id = "15"
                client.id = "41"
                object.id = "49"
                object.serial = "49"
                object.path = "alsa:acp:sofhdadsp"
                alsa.card = "4"
                alsa.card_name = "sof-hda-dsp"
                alsa.long_card_name = "Alienware-Alienwarex17R1-1.24.0"
                alsa.driver_name = "snd_soc_skl_hda_dsp"
                alsa.mixer_name = "Realtek ALC289"
                alsa.components = "HDA:80862812,80860101,00100000 HDA:10ec0289,10280a8f,00100002 cfg-dmics:2"
                alsa.id = "sofhdadsp"
                device.string = "4"
        Profiles:
                off: Off (sinks: 0, sources: 0, priority: 0, available: yes)
                HiFi (HDMI1, HDMI2, HDMI3, Headphones, Headset, Mic1): Play HiFi quality Music (HDMI1, HDMI2, HDMI3, Headphones, Headset, Mic1) (sinks: 4, sources: 2, priority: 10400, available: no)
                HiFi (HDMI1, HDMI2, HDMI3, Headset, Mic1, Speaker): Play HiFi quality Music (HDMI1, HDMI2, HDMI3, Headset, Mic1, Speaker) (sinks: 4, sources: 2, priority: 10300, available: yes)
                HiFi (HDMI1, HDMI2, HDMI3, Headphones, Mic1, Mic2): Play HiFi quality Music (HDMI1, HDMI2, HDMI3, Headphones, Mic1, Mic2) (sinks: 4, sources: 2, priority: 10300, available: no)
                HiFi (HDMI1, HDMI2, HDMI3, Mic1, Mic2, Speaker): Play HiFi quality Music (HDMI1, HDMI2, HDMI3, Mic1, Mic2, Speaker) (sinks: 4, sources: 2, priority: 10200, available: yes)
                pro-audio: Pro Audio (sinks: 5, sources: 3, priority: 1, available: yes)
        Active Profile: HiFi (HDMI1, HDMI2, HDMI3, Mic1, Mic2, Speaker)
        Ports:
                [Out] HDMI3: HDMI / DisplayPort 3 Output (type: HDMI, priority: 700, latency offset: 0 usec, availability group: HDMI/DP,pcm=5, not available)
                        Properties:
                                port.type = "hdmi"
                                port.availability-group = "HDMI/DP,pcm=5"
                                device.icon_name = "video-display"
                                card.profile.port = "0"
                        Part of profile(s): HiFi (HDMI1, HDMI2, HDMI3, Headset, Mic1, Speaker), HiFi (HDMI1, HDMI2, HDMI3, Headphones, Headset, Mic1), HiFi (HDMI1, HDMI2, HDMI3, Mic1, Mic2, Speaker), HiFi (HDMI1, HDMI2, HDMI3, Headphones, Mic1, Mic2)
                [Out] HDMI2: HDMI / DisplayPort 2 Output (type: HDMI, priority: 600, latency offset: 0 usec, availability group: HDMI/DP,pcm=4, not available)
                        Properties:
                                port.type = "hdmi"
                                port.availability-group = "HDMI/DP,pcm=4"
                                device.icon_name = "video-display"
                                card.profile.port = "1"
                        Part of profile(s): HiFi (HDMI1, HDMI2, HDMI3, Headset, Mic1, Speaker), HiFi (HDMI1, HDMI2, HDMI3, Headphones, Headset, Mic1), HiFi (HDMI1, HDMI2, HDMI3, Mic1, Mic2, Speaker), HiFi (HDMI1, HDMI2, HDMI3, Headphones, Mic1, Mic2)
                [Out] HDMI1: HDMI / DisplayPort 1 Output (type: HDMI, priority: 500, latency offset: 0 usec, availability group: HDMI/DP,pcm=3, not available)
                        Properties:
                                port.type = "hdmi"
                                port.availability-group = "HDMI/DP,pcm=3"
                                device.icon_name = "video-display"
                                card.profile.port = "2"
                        Part of profile(s): HiFi (HDMI1, HDMI2, HDMI3, Headset, Mic1, Speaker), HiFi (HDMI1, HDMI2, HDMI3, Headphones, Headset, Mic1), HiFi (HDMI1, HDMI2, HDMI3, Mic1, Mic2, Speaker), HiFi (HDMI1, HDMI2, HDMI3, Headphones, Mic1, Mic2)
                [Out] Speaker: Speaker (type: Speaker, priority: 100, latency offset: 0 usec, availability unknown)
                        Properties:
                                port.type = "speaker"
                                device.icon_name = "audio-speakers"
                                card.profile.port = "3"
                        Part of profile(s): HiFi (HDMI1, HDMI2, HDMI3, Headset, Mic1, Speaker), HiFi (HDMI1, HDMI2, HDMI3, Mic1, Mic2, Speaker)
                [In] Headset: Headset Mono Microphone (type: Headset, priority: 300, latency offset: 0 usec, availability group: Headphone Mic, not available)
                        Properties:
                                port.type = "headset"
                                port.availability-group = "Headphone Mic"
                                device.icon_name = "audio-headset"
                                card.profile.port = "4"
                        Part of profile(s): HiFi (HDMI1, HDMI2, HDMI3, Headset, Mic1, Speaker), HiFi (HDMI1, HDMI2, HDMI3, Headphones, Headset, Mic1)
                [In] Mic1: Digital Microphone (type: Mic, priority: 100, latency offset: 0 usec, availability unknown)
                        Properties:
                                port.type = "mic"
                                device.icon_name = "audio-input-microphone"
                                card.profile.port = "5"
                        Part of profile(s): HiFi (HDMI1, HDMI2, HDMI3, Headset, Mic1, Speaker), HiFi (HDMI1, HDMI2, HDMI3, Headphones, Headset, Mic1), HiFi (HDMI1, HDMI2, HDMI3, Mic1, Mic2, Speaker), HiFi (HDMI1, HDMI2, HDMI3, Headphones, Mic1, Mic2)
                [Out] Headphones: Headphones (type: Headphones, priority: 200, latency offset: 0 usec, availability group: Headphone Mic, not available)
                        Properties:
                                port.type = "headphones"
                                port.availability-group = "Headphone Mic"
                                device.icon_name = "audio-headphones"
                                card.profile.port = "6"
                        Part of profile(s): HiFi (HDMI1, HDMI2, HDMI3, Headphones, Headset, Mic1), HiFi (HDMI1, HDMI2, HDMI3, Headphones, Mic1, Mic2)
                [In] Mic2: Headphones Stereo Microphone (type: Mic, priority: 200, latency offset: 0 usec, availability group: Headphone Mic, not available)
                        Properties:
                                port.type = "mic"
                                port.availability-group = "Headphone Mic"
                                device.icon_name = "audio-input-microphone"
                                card.profile.port = "7"
                        Part of profile(s): HiFi (HDMI1, HDMI2, HDMI3, Mic1, Mic2, Speaker), HiFi (HDMI1, HDMI2, HDMI3, Headphones, Mic1, Mic2)
Sink #67
        State: SUSPENDED
        Name: alsa_output.usb-Lautsprecher_Teufel_GmbH_Teufel_CINEBAR_ONE_ABCDEF0123456789-00.analog-stereo
        Description: Teufel CINEBAR ONE Analog Stereo
        Driver: PipeWire
        Sample Specification: s16le 2ch 48000Hz
        Channel Map: front-left,front-right
        Owner Module: 4294967295
        Mute: no
        Volume: front-left: 22938 /  35% / -27,36 dB,   front-right: 22938 /  35% / -27,36 dB
                balance 0,00
        Base Volume: 65536 / 100% / 0,00 dB
        Monitor Source: alsa_output.usb-Lautsprecher_Teufel_GmbH_Teufel_CINEBAR_ONE_ABCDEF0123456789-00.analog-stereo.monitor
        Latency: 0 usec, configured 0 usec
        Flags: HARDWARE HW_MUTE_CTRL HW_VOLUME_CTRL DECIBEL_VOLUME LATENCY
        Properties:
                alsa.card = "3"
                alsa.card_name = "Teufel CINEBAR ONE"
                alsa.class = "generic"
                alsa.components = "USB2cc2:0027"
                alsa.device = "0"
                alsa.driver_name = "snd_usb_audio"
                alsa.id = "USB Audio"
                alsa.long_card_name = "Lautsprecher Teufel GmbH Teufel CINEBAR ONE at usb-0000:00:14.0-2.3.4.4, full s"
                alsa.mixer_name = "USB Mixer"
                alsa.name = "USB Audio"
                alsa.resolution_bits = "16"
                alsa.subclass = "generic-mix"
                alsa.subdevice = "0"
                alsa.subdevice_name = "subdevice #0"
                alsa.sync.id = "00000000:00000000:00000000:00000000"
                api.alsa.card.longname = "Lautsprecher Teufel GmbH Teufel CINEBAR ONE at usb-0000:00:14.0-2.3.4.4, full s"
                api.alsa.card.name = "Teufel CINEBAR ONE"
                api.alsa.path = "front:3"
                api.alsa.pcm.card = "3"
                api.alsa.pcm.stream = "playback"
                audio.channels = "2"
                audio.position = "FL,FR"
                card.profile.device = "3"
                device.api = "alsa"
                device.class = "sound"
                device.id = "48"
                device.profile.description = "Analog Stereo"
                device.profile.name = "analog-stereo"
                device.routes = "1"
                factory.name = "api.alsa.pcm.sink"
                media.class = "Audio/Sink"
                device.description = "Teufel CINEBAR ONE"
                node.name = "alsa_output.usb-Lautsprecher_Teufel_GmbH_Teufel_CINEBAR_ONE_ABCDEF0123456789-00.analog-stereo"
                node.nick = "Teufel CINEBAR ONE"
                node.pause-on-idle = "false"
                object.path = "alsa:acp:ONE:3:playback"
                port.group = "playback"
                priority.driver = "1009"
                priority.session = "1009"
                factory.id = "19"
                clock.quantum-limit = "8192"
                client.id = "41"
                node.driver = "true"
                node.loop.name = "data-loop.0"
                library.name = "audioconvert/libspa-audioconvert"
                object.id = "67"
                object.serial = "67"
                api.acp.auto-port = "false"
                api.acp.auto-profile = "false"
                api.alsa.card = "3"
                api.alsa.use-acp = "true"
                api.dbus.ReserveDevice1 = "Audio3"
                api.dbus.ReserveDevice1.Priority = "-20"
                device.bus = "usb"
                device.bus-id = "usb-Lautsprecher_Teufel_GmbH_Teufel_CINEBAR_ONE_ABCDEF0123456789-00"
                device.bus_path = "pci-0000:00:14.0-usb-0:2.3.4.4:1.0"
                device.enum.api = "udev"
                device.icon_name = "audio-card-analog-usb"
                device.name = "alsa_card.usb-Lautsprecher_Teufel_GmbH_Teufel_CINEBAR_ONE_ABCDEF0123456789-00"
                device.nick = "Teufel CINEBAR ONE"
                device.plugged.usec = "8161816"
                device.product.id = "0x0027"
                device.product.name = "Teufel CINEBAR ONE"
                device.serial = "Lautsprecher_Teufel_GmbH_Teufel_CINEBAR_ONE_ABCDEF0123456789"
                device.subsystem = "sound"
                sysfs.path = "/devices/pci0000:00/0000:00:14.0/usb3/3-2/3-2.3/3-2.3.4/3-2.3.4.4/3-2.3.4.4:1.0/sound/card3"
                device.vendor.id = "0x2cc2"
                device.vendor.name = "Lautsprecher Teufel GmbH"
                device.string = "3"
        Ports:
                analog-output: Analog Output (type: Analog, priority: 9900, availability unknown)
        Active Port: analog-output
        Formats:
                pcm

Sink #68
        State: SUSPENDED
        Name: alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__HDMI3__sink
        Description: Tiger Lake-H HD Audio Controller HDMI / DisplayPort 3 Output
        Driver: PipeWire
        Sample Specification: s24-32le 2ch 48000Hz
        Channel Map: front-left,front-right
        Owner Module: 4294967295
        Mute: no
        Volume: front-left: 65536 / 100% / 0,00 dB,   front-right: 65536 / 100% / 0,00 dB
                balance 0,00
        Base Volume: 65536 / 100% / 0,00 dB
        Monitor Source: alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__HDMI3__sink.monitor
        Latency: 0 usec, configured 0 usec
        Flags: HARDWARE DECIBEL_VOLUME LATENCY
        Properties:
                alsa.card = "4"
                alsa.card_name = "sof-hda-dsp"
                alsa.class = "generic"
                alsa.components = "HDA:80862812,80860101,00100000 HDA:10ec0289,10280a8f,00100002 cfg-dmics:2"
                alsa.device = "5"
                alsa.driver_name = "snd_soc_skl_hda_dsp"
                alsa.id = "HDMI3 (*)"
                alsa.long_card_name = "Alienware-Alienwarex17R1-1.24.0"
                alsa.mixer_device = "_ucm0009.hw:sofhdadsp"
                alsa.mixer_name = "Realtek ALC289"
                alsa.name = ""
                alsa.resolution_bits = "16"
                alsa.subclass = "generic-mix"
                alsa.subdevice = "0"
                alsa.subdevice_name = "subdevice #0"
                alsa.sync.id = "00000000:00000000:00000000:00000000"
                api.alsa.card.longname = "Alienware-Alienwarex17R1-1.24.0"
                api.alsa.card.name = "sof-hda-dsp"
                api.alsa.open.ucm = "true"
                api.alsa.path = "hw:sofhdadsp,5"
                api.alsa.pcm.card = "4"
                api.alsa.pcm.stream = "playback"
                audio.channels = "2"
                audio.position = "FL,FR"
                card.profile.device = "0"
                device.api = "alsa"
                device.class = "sound"
                device.id = "49"
                device.profile.description = "HDMI / DisplayPort 3 Output"
                device.profile.name = "HiFi: HDMI3: sink"
                device.routes = "1"
                factory.name = "api.alsa.pcm.sink"
                media.class = "Audio/Sink"
                device.description = "Tiger Lake-H HD Audio Controller"
                node.name = "alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__HDMI3__sink"
                node.nick = "HDMI / DisplayPort 3 Output"
                node.pause-on-idle = "false"
                object.path = "alsa:acp:sofhdadsp:0:playback"
                port.group = "playback"
                priority.driver = "664"
                priority.session = "664"
                factory.id = "19"
                clock.quantum-limit = "8192"
                client.id = "41"
                node.driver = "true"
                node.loop.name = "data-loop.0"
                library.name = "audioconvert/libspa-audioconvert"
                object.id = "44"
                object.serial = "68"
                api.acp.auto-port = "false"
                api.acp.auto-profile = "false"
                api.alsa.card = "4"
                api.alsa.use-acp = "true"
                api.dbus.ReserveDevice1 = "Audio4"
                api.dbus.ReserveDevice1.Priority = "-20"
                device.bus = "pci"
                device.bus_path = "pci-0000:00:1f.3-platform-skl_hda_dsp_generic"
                device.enum.api = "udev"
                device.icon_name = "audio-card-analog-pci"
                device.name = "alsa_card.pci-0000_00_1f.3-platform-skl_hda_dsp_generic"
                device.nick = "sof-hda-dsp"
                device.plugged.usec = "9189871"
                device.product.id = "0x43c8"
                device.product.name = "Tiger Lake-H HD Audio Controller"
                device.subsystem = "sound"
                sysfs.path = "/devices/pci0000:00/0000:00:1f.3/skl_hda_dsp_generic/sound/card4"
                device.vendor.id = "0x8086"
                device.vendor.name = "Intel Corporation"
                device.string = "4"
        Ports:
                [Out] HDMI3: HDMI / DisplayPort 3 Output (type: HDMI, priority: 700, availability group: HDMI/DP,pcm=5, not available)
        Active Port: [Out] HDMI3
        Formats:
                pcm

Sink #69
        State: SUSPENDED
        Name: alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__HDMI2__sink
        Description: Tiger Lake-H HD Audio Controller HDMI / DisplayPort 2 Output
        Driver: PipeWire
        Sample Specification: s24-32le 2ch 48000Hz
        Channel Map: front-left,front-right
        Owner Module: 4294967295
        Mute: no
        Volume: front-left: 65536 / 100% / 0,00 dB,   front-right: 65536 / 100% / 0,00 dB
                balance 0,00
        Base Volume: 65536 / 100% / 0,00 dB
        Monitor Source: alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__HDMI2__sink.monitor
        Latency: 0 usec, configured 0 usec
        Flags: HARDWARE DECIBEL_VOLUME LATENCY
        Properties:
                alsa.card = "4"
                alsa.card_name = "sof-hda-dsp"
                alsa.class = "generic"
                alsa.components = "HDA:80862812,80860101,00100000 HDA:10ec0289,10280a8f,00100002 cfg-dmics:2"
                alsa.device = "4"
                alsa.driver_name = "snd_soc_skl_hda_dsp"
                alsa.id = "HDMI2 (*)"
                alsa.long_card_name = "Alienware-Alienwarex17R1-1.24.0"
                alsa.mixer_device = "_ucm0009.hw:sofhdadsp"
                alsa.mixer_name = "Realtek ALC289"
                alsa.name = ""
                alsa.resolution_bits = "16"
                alsa.subclass = "generic-mix"
                alsa.subdevice = "0"
                alsa.subdevice_name = "subdevice #0"
                alsa.sync.id = "00000000:00000000:00000000:00000000"
                api.alsa.card.longname = "Alienware-Alienwarex17R1-1.24.0"
                api.alsa.card.name = "sof-hda-dsp"
                api.alsa.open.ucm = "true"
                api.alsa.path = "hw:sofhdadsp,4"
                api.alsa.pcm.card = "4"
                api.alsa.pcm.stream = "playback"
                audio.channels = "2"
                audio.position = "FL,FR"
                card.profile.device = "1"
                device.api = "alsa"
                device.class = "sound"
                device.id = "49"
                device.profile.description = "HDMI / DisplayPort 2 Output"
                device.profile.name = "HiFi: HDMI2: sink"
                device.routes = "1"
                factory.name = "api.alsa.pcm.sink"
                media.class = "Audio/Sink"
                device.description = "Tiger Lake-H HD Audio Controller"
                node.name = "alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__HDMI2__sink"
                node.nick = "HDMI / DisplayPort 2 Output"
                node.pause-on-idle = "false"
                object.path = "alsa:acp:sofhdadsp:1:playback"
                port.group = "playback"
                priority.driver = "680"
                priority.session = "680"
                factory.id = "19"
                clock.quantum-limit = "8192"
                client.id = "41"
                node.driver = "true"
                node.loop.name = "data-loop.0"
                library.name = "audioconvert/libspa-audioconvert"
                object.id = "59"
                object.serial = "69"
                api.acp.auto-port = "false"
                api.acp.auto-profile = "false"
                api.alsa.card = "4"
                api.alsa.use-acp = "true"
                api.dbus.ReserveDevice1 = "Audio4"
                api.dbus.ReserveDevice1.Priority = "-20"
                device.bus = "pci"
                device.bus_path = "pci-0000:00:1f.3-platform-skl_hda_dsp_generic"
                device.enum.api = "udev"
                device.icon_name = "audio-card-analog-pci"
                device.name = "alsa_card.pci-0000_00_1f.3-platform-skl_hda_dsp_generic"
                device.nick = "sof-hda-dsp"
                device.plugged.usec = "9189871"
                device.product.id = "0x43c8"
                device.product.name = "Tiger Lake-H HD Audio Controller"
                device.subsystem = "sound"
                sysfs.path = "/devices/pci0000:00/0000:00:1f.3/skl_hda_dsp_generic/sound/card4"
                device.vendor.id = "0x8086"
                device.vendor.name = "Intel Corporation"
                device.string = "4"
        Ports:
                [Out] HDMI2: HDMI / DisplayPort 2 Output (type: HDMI, priority: 600, availability group: HDMI/DP,pcm=4, not available)
        Active Port: [Out] HDMI2
        Formats:
                pcm

Sink #70
        State: SUSPENDED
        Name: alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__HDMI1__sink
        Description: Tiger Lake-H HD Audio Controller HDMI / DisplayPort 1 Output
        Driver: PipeWire
        Sample Specification: s24-32le 2ch 48000Hz
        Channel Map: front-left,front-right
        Owner Module: 4294967295
        Mute: no
        Volume: front-left: 65536 / 100% / 0,00 dB,   front-right: 65536 / 100% / 0,00 dB
                balance 0,00
        Base Volume: 65536 / 100% / 0,00 dB
        Monitor Source: alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__HDMI1__sink.monitor
        Latency: 0 usec, configured 0 usec
        Flags: HARDWARE DECIBEL_VOLUME LATENCY
        Properties:
                alsa.card = "4"
                alsa.card_name = "sof-hda-dsp"
                alsa.class = "generic"
                alsa.components = "HDA:80862812,80860101,00100000 HDA:10ec0289,10280a8f,00100002 cfg-dmics:2"
                alsa.device = "3"
                alsa.driver_name = "snd_soc_skl_hda_dsp"
                alsa.id = "HDMI1 (*)"
                alsa.long_card_name = "Alienware-Alienwarex17R1-1.24.0"
                alsa.mixer_device = "_ucm0009.hw:sofhdadsp"
                alsa.mixer_name = "Realtek ALC289"
                alsa.name = ""
                alsa.resolution_bits = "16"
                alsa.subclass = "generic-mix"
                alsa.subdevice = "0"
                alsa.subdevice_name = "subdevice #0"
                alsa.sync.id = "00000000:00000000:00000000:00000000"
                api.alsa.card.longname = "Alienware-Alienwarex17R1-1.24.0"
                api.alsa.card.name = "sof-hda-dsp"
                api.alsa.open.ucm = "true"
                api.alsa.path = "hw:sofhdadsp,3"
                api.alsa.pcm.card = "4"
                api.alsa.pcm.stream = "playback"
                audio.channels = "2"
                audio.position = "FL,FR"
                card.profile.device = "2"
                device.api = "alsa"
                device.class = "sound"
                device.id = "49"
                device.profile.description = "HDMI / DisplayPort 1 Output"
                device.profile.name = "HiFi: HDMI1: sink"
                device.routes = "1"
                factory.name = "api.alsa.pcm.sink"
                media.class = "Audio/Sink"
                device.description = "Tiger Lake-H HD Audio Controller"
                node.name = "alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__HDMI1__sink"
                node.nick = "HDMI / DisplayPort 1 Output"
                node.pause-on-idle = "false"
                object.path = "alsa:acp:sofhdadsp:2:playback"
                port.group = "playback"
                priority.driver = "696"
                priority.session = "696"
                factory.id = "19"
                clock.quantum-limit = "8192"
                client.id = "41"
                node.driver = "true"
                node.loop.name = "data-loop.0"
                library.name = "audioconvert/libspa-audioconvert"
                object.id = "57"
                object.serial = "70"
                api.acp.auto-port = "false"
                api.acp.auto-profile = "false"
                api.alsa.card = "4"
                api.alsa.use-acp = "true"
                api.dbus.ReserveDevice1 = "Audio4"
                api.dbus.ReserveDevice1.Priority = "-20"
                device.bus = "pci"
                device.bus_path = "pci-0000:00:1f.3-platform-skl_hda_dsp_generic"
                device.enum.api = "udev"
                device.icon_name = "audio-card-analog-pci"
                device.name = "alsa_card.pci-0000_00_1f.3-platform-skl_hda_dsp_generic"
                device.nick = "sof-hda-dsp"
                device.plugged.usec = "9189871"
                device.product.id = "0x43c8"
                device.product.name = "Tiger Lake-H HD Audio Controller"
                device.subsystem = "sound"
                sysfs.path = "/devices/pci0000:00/0000:00:1f.3/skl_hda_dsp_generic/sound/card4"
                device.vendor.id = "0x8086"
                device.vendor.name = "Intel Corporation"
                device.string = "4"
        Ports:
                [Out] HDMI1: HDMI / DisplayPort 1 Output (type: HDMI, priority: 500, availability group: HDMI/DP,pcm=3, not available)
        Active Port: [Out] HDMI1
        Formats:
                pcm

Sink #71
        State: SUSPENDED
        Name: alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__Speaker__sink
        Description: Tiger Lake-H HD Audio Controller Speaker
        Driver: PipeWire
        Sample Specification: s32le 2ch 48000Hz
        Channel Map: front-left,front-right
        Owner Module: 4294967295
        Mute: no
        Volume: front-left: 36027 /  55% / -15,59 dB,   front-right: 36027 /  55% / -15,59 dB
                balance 0,00
        Base Volume: 65536 / 100% / 0,00 dB
        Monitor Source: alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__Speaker__sink.monitor
        Latency: 0 usec, configured 0 usec
        Flags: HARDWARE HW_MUTE_CTRL HW_VOLUME_CTRL DECIBEL_VOLUME LATENCY
        Properties:
                alsa.card = "4"
                alsa.card_name = "sof-hda-dsp"
                alsa.class = "generic"
                alsa.components = "HDA:80862812,80860101,00100000 HDA:10ec0289,10280a8f,00100002 cfg-dmics:2"
                alsa.device = "0"
                alsa.driver_name = "snd_soc_skl_hda_dsp"
                alsa.id = "HDA Analog (*)"
                alsa.long_card_name = "Alienware-Alienwarex17R1-1.24.0"
                alsa.mixer_device = "_ucm0009.hw:sofhdadsp"
                alsa.mixer_name = "Realtek ALC289"
                alsa.name = ""
                alsa.resolution_bits = "16"
                alsa.subclass = "generic-mix"
                alsa.subdevice = "0"
                alsa.subdevice_name = "subdevice #0"
                alsa.sync.id = "00000000:00000000:00000000:00000000"
                api.alsa.card.longname = "Alienware-Alienwarex17R1-1.24.0"
                api.alsa.card.name = "sof-hda-dsp"
                api.alsa.open.ucm = "true"
                api.alsa.path = "hw:sofhdadsp"
                api.alsa.pcm.card = "4"
                api.alsa.pcm.stream = "playback"
                audio.channels = "2"
                audio.position = "FL,FR"
                card.profile.device = "3"
                device.api = "alsa"
                device.class = "sound"
                device.id = "49"
                device.profile.description = "Speaker"
                device.profile.name = "HiFi: Speaker: sink"
                device.routes = "1"
                factory.name = "api.alsa.pcm.sink"
                media.class = "Audio/Sink"
                device.description = "Tiger Lake-H HD Audio Controller"
                node.name = "alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__Speaker__sink"
                node.nick = "Speaker"
                node.pause-on-idle = "false"
                object.path = "alsa:acp:sofhdadsp:3:playback"
                port.group = "playback"
                priority.driver = "1000"
                priority.session = "1000"
                factory.id = "19"
                clock.quantum-limit = "8192"
                client.id = "41"
                node.driver = "true"
                node.loop.name = "data-loop.0"
                library.name = "audioconvert/libspa-audioconvert"
                object.id = "58"
                object.serial = "71"
                api.acp.auto-port = "false"
                api.acp.auto-profile = "false"
                api.alsa.card = "4"
                api.alsa.use-acp = "true"
                api.dbus.ReserveDevice1 = "Audio4"
                api.dbus.ReserveDevice1.Priority = "-20"
                device.bus = "pci"
                device.bus_path = "pci-0000:00:1f.3-platform-skl_hda_dsp_generic"
                device.enum.api = "udev"
                device.icon_name = "audio-card-analog-pci"
                device.name = "alsa_card.pci-0000_00_1f.3-platform-skl_hda_dsp_generic"
                device.nick = "sof-hda-dsp"
                device.plugged.usec = "9189871"
                device.product.id = "0x43c8"
                device.product.name = "Tiger Lake-H HD Audio Controller"
                device.subsystem = "sound"
                sysfs.path = "/devices/pci0000:00/0000:00:1f.3/skl_hda_dsp_generic/sound/card4"
                device.vendor.id = "0x8086"
                device.vendor.name = "Intel Corporation"
                device.string = "4"
        Ports:
                [Out] Speaker: Speaker (type: Speaker, priority: 100, availability unknown)
        Active Port: [Out] Speaker
        Formats:
                pcm

eso · February 5, 2025, 3:11pm

@jul.cgn ,
Read this with criticism. When I have to use TV speakers I run a script to change pipewire to pulseaudio.

Edit 1 c/o @jul.cgn
So, from the default pipewire:

yay -S pulseaudio
# Y to replace pipewire
yay -S pulsemixer

cat ./pipe2pulse.sh  # chmod +x once and insert to autostart
#!/bin/bash
systemctl --user stop pipewire.socket
sleep 2
systemctl --user stop pipewire.service
sleep 1
systemctl --user start pulseaudio.service
systemctl --user start pulseaudio.socket

check what is active

inxi -A
Audio:
  Device-1: Intel Ice Lake-LP Smart Sound Audio driver: snd_hda_intel
  API: ALSA v: k6.12.12-1-lts status: kernel-api
  Server-1: PulseAudio v: 17.0-43-g3e2bb status: active

pulsemixer / F3 to select output

jul.cgn · February 7, 2025, 3:26pm

I tried this but it doesn’t work. It’s the same problem. Thanks anyway.

jul.cgn · February 7, 2025, 4:08pm

I just booted the live install medium of linux mint and then it does work! However, I think it has to do with the nvidia driver. During the live system, I’m on the nouveau driver, but on EOS I’m on nvidia-dkms.

lspci -k | grep -EA3 'VGA|3D|Display'
00:02.0 VGA compatible controller: Intel Corporation TigerLake-H GT1 [UHD Graphics] (rev 01)
DeviceName: Onboard - Video
Subsystem: Dell TigerLake-H GT1 [UHD Graphics]
Kernel driver in use: i915
--
01:00.0 VGA compatible controller: NVIDIA Corporation GA104M [GeForce RTX 3080 Mobile / Max-Q 8GB/16GB] (rev a1)
Subsystem: Dell GA104M [GeForce RTX 3080 Mobile / Max-Q 8GB/16GB]
Kernel driver in use: nouveau
Kernel modules: nvidiafb, nouveau

Notice how it says HDMI 0 [LG TV] here:

aplay -l
**** List of PLAYBACK Hardware Devices ****
card 0: NVidia [HDA NVidia], device 3: HDMI 0 [LG TV]
  Subdevices: 1/1
  Subdevice #0: subdevice #0
card 0: NVidia [HDA NVidia], device 7: HDMI 1 [HDMI 1]
  Subdevices: 1/1
  Subdevice #0: subdevice #0
card 0: NVidia [HDA NVidia], device 8: HDMI 2 [HDMI 2]
  Subdevices: 1/1
  Subdevice #0: subdevice #0
card 0: NVidia [HDA NVidia], device 9: HDMI 3 [HDMI 3]
  Subdevices: 1/1
  Subdevice #0: subdevice #0
card 1: Audio [USB Audio], device 0: USB Audio [USB Audio]
  Subdevices: 1/1
  Subdevice #0: subdevice #0
card 4: ONE [Teufel CINEBAR ONE], device 0: USB Audio [USB Audio]
  Subdevices: 1/1
  Subdevice #0: subdevice #0
card 5: sofhdadsp [sof-hda-dsp], device 0: HDA Analog (*) []
  Subdevices: 1/1
  Subdevice #0: subdevice #0
card 5: sofhdadsp [sof-hda-dsp], device 3: HDMI1 (*) []
  Subdevices: 1/1
  Subdevice #0: subdevice #0
card 5: sofhdadsp [sof-hda-dsp], device 4: HDMI2 (*) []
  Subdevices: 1/1
  Subdevice #0: subdevice #0
card 5: sofhdadsp [sof-hda-dsp], device 5: HDMI3 (*) []
  Subdevices: 1/1
  Subdevice #0: subdevice #0
card 5: sofhdadsp [sof-hda-dsp], device 31: HDA Analog Deep Buffer (*) []
  Subdevices: 1/1
  Subdevice #0: subdevice #0

some more infos:

lspci | grep -i audio
00:1f.3 Multimedia audio controller: Intel Corporation Tiger Lake-H HD Audio Controller (rev 11)
01:00.1 Audio device: NVIDIA Corporation GA104 High Definition Audio Controller (rev a1)

sudo dmesg | grep snd
[   11.577690] snd_hda_intel 0000:00:1f.3: DSP detected with PCI class/subclass/prog-if info 0x040100
[   11.577714] snd_hda_intel 0000:00:1f.3: Digital mics found on Skylake+ platform, using SOF driver
[   11.577756] snd_hda_intel 0000:01:00.1: enabling device (0000 -> 0002)
[   11.577862] snd_hda_intel 0000:01:00.1: Disabling MSI
[   11.577866] snd_hda_intel 0000:01:00.1: Handle vga_switcheroo audio client
[   12.641114] usbcore: registered new interface driver snd-usb-audio
[   12.759288] snd_hda_intel 0000:01:00.1: bound 0000:01:00.0 (ops nv50_audio_component_bind_ops [nouveau])
[   12.759567] snd_hda_intel 0000:00:1f.3: DSP detected with PCI class/subclass/prog-if info 0x040100
[   12.759584] snd_hda_intel 0000:00:1f.3: Digital mics found on Skylake+ platform, using SOF driver
[   12.762442] snd_hda_intel 0000:00:1f.3: DSP detected with PCI class/subclass/prog-if info 0x040100
[   12.762460] snd_hda_intel 0000:00:1f.3: Digital mics found on Skylake+ platform, using SOF driver
[   12.764826] snd_hda_intel 0000:00:1f.3: DSP detected with PCI class/subclass/prog-if info 0x040100
[   12.764849] snd_hda_intel 0000:00:1f.3: Digital mics found on Skylake+ platform, using SOF driver
[   12.766157] snd_hda_intel 0000:00:1f.3: DSP detected with PCI class/subclass/prog-if info 0x040100
[   12.766169] snd_hda_intel 0000:00:1f.3: Digital mics found on Skylake+ platform, using SOF driver
[   13.019407] snd_hda_codec_realtek ehdaudio0D0: autoconfig for ALC289: line_outs=1 (0x14/0x0/0x0/0x0/0x0) type:speaker
[   13.019410] snd_hda_codec_realtek ehdaudio0D0:    speaker_outs=0 (0x0/0x0/0x0/0x0/0x0)
[   13.019411] snd_hda_codec_realtek ehdaudio0D0:    hp_outs=1 (0x21/0x0/0x0/0x0/0x0)
[   13.019412] snd_hda_codec_realtek ehdaudio0D0:    mono: mono_out=0x0
[   13.019413] snd_hda_codec_realtek ehdaudio0D0:    inputs:
[   13.019413] snd_hda_codec_realtek ehdaudio0D0:      Headset Mic=0x19
[   13.019414] snd_hda_codec_realtek ehdaudio0D0:      Headphone Mic=0x1b

inxi -Ax
Audio:
  Device-1: Intel Tiger Lake-H HD Audio vendor: Dell
    driver: sof-audio-pci-intel-tgl bus-ID: 00:1f.3
  Device-2: NVIDIA GA104 High Definition Audio driver: snd_hda_intel
    v: kernel bus-ID: 01:00.1
  Device-3: Anker PowerConf C200
    driver: hid-generic,snd-usb-audio,usbhid,uvcvideo type: USB
    bus-ID: 3-2.1.2.2:15
  Device-4: Realtek USB Audio driver: hid-generic,snd-usb-audio,usbhid
    type: USB bus-ID: 3-2.1.3:10
  Device-5: Antlion Audio Wireless Microphone
    driver: hid-generic,snd-usb-audio,usbhid type: USB bus-ID: 3-2.3.2:14
  Device-6: Lautsprecher Teufel GmbH CINEBAR ONE
    driver: hid-generic,snd-usb-audio,usbhid type: USB bus-ID: 3-2.3.4.4:18
  API: ALSA v: k6.8.0-51-generic status: kernel-api
  Server-1: PipeWire v: 1.0.5 status: active

pactl list cards && pactl list sinks
Card #49
Name: alsa_card.pci-0000_01_00.1
Driver: alsa
Owner Module: n/a
Properties:
api.acp.auto-port = "false"
api.acp.auto-profile = "false"
api.alsa.card = "0"
api.alsa.card.longname = "HDA NVidia at 0x84080000 irq 17"
api.alsa.card.name = "HDA NVidia"
api.alsa.path = "hw:0"
api.alsa.use-acp = "true"
api.dbus.ReserveDevice1 = "Audio0"
device.api = "alsa"
device.bus = "pci"
device.bus_path = "pci-0000:01:00.1"
device.description = "GA104 High Definition Audio Controller"
device.enum.api = "udev"
device.icon_name = "audio-card-analog-pci"
device.name = "alsa_card.pci-0000_01_00.1"
device.nick = "HDA NVidia"
device.plugged.usec = "12756105"
device.product.id = "0x228b"
device.product.name = "GA104 High Definition Audio Controller"
device.subsystem = "sound"
sysfs.path = "/devices/pci0000:00/0000:00:01.0/0000:01:00.1/sound/card0"
device.vendor.id = "0x10de"
device.vendor.name = "NVIDIA Corporation"
media.class = "Audio/Device"
factory.id = "14"
client.id = "35"
object.id = "49"
object.serial = "49"
object.path = "alsa:pcm:0"
alsa.card = "0"
alsa.card_name = "HDA NVidia"
alsa.long_card_name = "HDA NVidia at 0x84080000 irq 17"
alsa.driver_name = "snd_hda_intel"
alsa.mixer_name = "Nvidia GPU 9e HDMI/DP"
alsa.components = "HDA:10de009e,10de0000,00100100"
alsa.id = "NVidia"
device.string = "0"
Profiles:
off: Off (sinks: 0, sources: 0, priority: 0, available: yes)
output:hdmi-stereo: Digital Stereo (HDMI) Output (sinks: 1, sources: 0, priority: 5900, available: yes)
output:hdmi-stereo-extra1: Digital Stereo (HDMI 2) Output (sinks: 1, sources: 0, priority: 5700, available: no)
output:hdmi-stereo-extra2: Digital Stereo (HDMI 3) Output (sinks: 1, sources: 0, priority: 5700, available: no)
output:hdmi-stereo-extra3: Digital Stereo (HDMI 4) Output (sinks: 1, sources: 0, priority: 5700, available: no)
output:hdmi-surround: Digital Surround 5.1 (HDMI) Output (sinks: 1, sources: 0, priority: 800, available: yes)
output:hdmi-surround71: Digital Surround 7.1 (HDMI) Output (sinks: 1, sources: 0, priority: 800, available: yes)
output:hdmi-surround-extra1: Digital Surround 5.1 (HDMI 2) Output (sinks: 1, sources: 0, priority: 600, available: no)
output:hdmi-surround71-extra1: Digital Surround 7.1 (HDMI 2) Output (sinks: 1, sources: 0, priority: 600, available: no)
output:hdmi-surround-extra2: Digital Surround 5.1 (HDMI 3) Output (sinks: 1, sources: 0, priority: 600, available: no)
output:hdmi-surround71-extra2: Digital Surround 7.1 (HDMI 3) Output (sinks: 1, sources: 0, priority: 600, available: no)
output:hdmi-surround-extra3: Digital Surround 5.1 (HDMI 4) Output (sinks: 1, sources: 0, priority: 600, available: no)
output:hdmi-surround71-extra3: Digital Surround 7.1 (HDMI 4) Output (sinks: 1, sources: 0, priority: 600, available: no)
pro-audio: Pro Audio (sinks: 4, sources: 0, priority: 1, available: yes)
Active Profile: output:hdmi-stereo
Ports:
hdmi-output-0: HDMI / DisplayPort (type: HDMI, priority: 5900, latency offset: 0 usec, availability group: Legacy 1, available)
Properties:
port.type = "hdmi"
port.availability-group = "Legacy 1"
device.icon_name = "video-display"
card.profile.port = "0"
device.product.name = "LG TV"
Part of profile(s): output:hdmi-stereo, output:hdmi-surround, output:hdmi-surround71
hdmi-output-1: HDMI / DisplayPort 2 (type: HDMI, priority: 5800, latency offset: 0 usec, availability group: Legacy 2, not available)
Properties:
port.type = "hdmi"
port.availability-group = "Legacy 2"
device.icon_name = "video-display"
card.profile.port = "1"
Part of profile(s): output:hdmi-stereo-extra1, output:hdmi-surround-extra1, output:hdmi-surround71-extra1
hdmi-output-2: HDMI / DisplayPort 3 (type: HDMI, priority: 5700, latency offset: 0 usec, availability group: Legacy 3, not available)
Properties:
port.type = "hdmi"
port.availability-group = "Legacy 3"
device.icon_name = "video-display"
card.profile.port = "2"
Part of profile(s): output:hdmi-stereo-extra2, output:hdmi-surround-extra2, output:hdmi-surround71-extra2
hdmi-output-3: HDMI / DisplayPort 4 (type: HDMI, priority: 5600, latency offset: 0 usec, availability group: Legacy 4, not available)
Properties:
port.type = "hdmi"
port.availability-group = "Legacy 4"
device.icon_name = "video-display"
card.profile.port = "3"
Part of profile(s): output:hdmi-stereo-extra3, output:hdmi-surround-extra3, output:hdmi-surround71-extra3

Card #50
Name: alsa_card.usb-Anker_PowerConf_C200_Anker_PowerConf_C200_ACNV9P1D52666798-02
Driver: alsa
Owner Module: n/a
Properties:
api.acp.auto-port = "false"
api.acp.auto-profile = "false"
api.alsa.card = "3"
api.alsa.card.longname = "Anker PowerConf C200 Anker PowerConf C200 at usb-0000:00:14.0-2.1.2.2, high spe"
api.alsa.card.name = "Anker PowerConf C200"
api.alsa.path = "hw:3"
api.alsa.use-acp = "true"
api.dbus.ReserveDevice1 = "Audio3"
device.api = "alsa"
device.bus = "usb"
device.bus-id = "usb-Anker_PowerConf_C200_Anker_PowerConf_C200_ACNV9P1D52666798-02"
device.bus_path = "pci-0000:00:14.0-usb-0:2.1.2.2:1.2"
device.description = "Anker PowerConf C200"
device.enum.api = "udev"
device.form_factor = "webcam"
device.icon_name = "camera-web-analog-usb"
device.name = "alsa_card.usb-Anker_PowerConf_C200_Anker_PowerConf_C200_ACNV9P1D52666798-02"
device.nick = "Anker PowerConf C200"
device.plugged.usec = "12463526"
device.product.id = "0x3369"
device.product.name = "Anker PowerConf C200"
device.serial = "Anker_PowerConf_C200_Anker_PowerConf_C200_ACNV9P1D52666798"
device.subsystem = "sound"
sysfs.path = "/devices/pci0000:00/0000:00:14.0/usb3/3-2/3-2.1/3-2.1.2/3-2.1.2.2/3-2.1.2.2:1.2/sound/card3"
device.vendor.id = "0x291a"
device.vendor.name = "Anker PowerConf C200"
media.class = "Audio/Device"
factory.id = "14"
client.id = "35"
object.id = "50"
object.serial = "50"
object.path = "alsa:pcm:3"
alsa.card = "3"
alsa.card_name = "Anker PowerConf C200"
alsa.long_card_name = "Anker PowerConf C200 Anker PowerConf C200 at usb-0000:00:14.0-2.1.2.2, high spe"
alsa.driver_name = "snd_usb_audio"
alsa.mixer_name = "USB Mixer"
alsa.components = "USB291a:3369"
alsa.id = "C200"
device.string = "3"
Profiles:
off: Off (sinks: 0, sources: 0, priority: 0, available: yes)
input:analog-stereo: Analog Stereo Input (sinks: 0, sources: 1, priority: 65, available: yes)
input:iec958-stereo: Digital Stereo (IEC958) Input (sinks: 0, sources: 1, priority: 55, available: yes)
pro-audio: Pro Audio (sinks: 0, sources: 1, priority: 1, available: yes)
Active Profile: input:analog-stereo
Ports:
analog-input-mic: Microphone (type: Mic, priority: 8700, latency offset: 0 usec, availability unknown)
Properties:
port.type = "mic"
device.icon_name = "audio-input-microphone"
card.profile.port = "0"
Part of profile(s): input:analog-stereo
iec958-stereo-input: Digital Input (S/PDIF) (type: SPDIF, priority: 0, latency offset: 0 usec, availability unknown)
Properties:
port.type = "spdif"
card.profile.port = "1"
Part of profile(s): input:iec958-stereo

Card #51
Name: alsa_card.usb-Generic_USB_Audio_201405280001-00
Driver: alsa
Owner Module: n/a
Properties:
api.acp.auto-port = "false"
api.acp.auto-profile = "false"
api.alsa.card = "1"
api.alsa.card.longname = "Generic USB Audio at usb-0000:00:14.0-2.1.3, high speed"
api.alsa.card.name = "USB Audio"
api.alsa.path = "hw:1"
api.alsa.use-acp = "true"
api.dbus.ReserveDevice1 = "Audio1"
device.api = "alsa"
device.bus = "usb"
device.bus-id = "usb-Generic_USB_Audio_201405280001-00"
device.bus_path = "pci-0000:00:14.0-usb-0:2.1.3:1.0"
device.description = "USB Audio"
device.enum.api = "udev"
device.icon_name = "audio-card-analog-usb"
device.name = "alsa_card.usb-Generic_USB_Audio_201405280001-00"
device.nick = "USB Audio"
device.plugged.usec = "12452509"
device.product.id = "0x482a"
device.product.name = "USB Audio"
device.serial = "Generic_USB_Audio_201405280001"
device.subsystem = "sound"
sysfs.path = "/devices/pci0000:00/0000:00:14.0/usb3/3-2/3-2.1/3-2.1.3/3-2.1.3:1.0/sound/card1"
device.vendor.id = "0x0bda"
device.vendor.name = "Realtek Semiconductor Corp."
media.class = "Audio/Device"
factory.id = "14"
client.id = "35"
object.id = "51"
object.serial = "51"
object.path = "alsa:pcm:1"
alsa.card = "1"
alsa.card_name = "USB Audio"
alsa.long_card_name = "Generic USB Audio at usb-0000:00:14.0-2.1.3, high speed"
alsa.driver_name = "snd_usb_audio"
alsa.mixer_name = "USB Mixer"
alsa.components = "USB0bda:482a"
alsa.id = "Audio"
device.string = "1"
Profiles:
off: Off (sinks: 0, sources: 0, priority: 0, available: yes)
output:analog-stereo+input:analog-stereo: Analog Stereo Duplex (sinks: 1, sources: 1, priority: 6565, available: yes)
output:analog-stereo+input:iec958-stereo: Analog Stereo Output + Digital Stereo (IEC958) Input (sinks: 1, sources: 1, priority: 6555, available: yes)
output:analog-stereo: Analog Stereo Output (sinks: 1, sources: 0, priority: 6500, available: yes)
output:iec958-stereo+input:analog-stereo: Digital Stereo (IEC958) Output + Analog Stereo Input (sinks: 1, sources: 1, priority: 5565, available: yes)
output:iec958-stereo+input:iec958-stereo: Digital Stereo Duplex (IEC958) (sinks: 1, sources: 1, priority: 5555, available: yes)
output:iec958-stereo: Digital Stereo (IEC958) Output (sinks: 1, sources: 0, priority: 5500, available: yes)
input:analog-stereo: Analog Stereo Input (sinks: 0, sources: 1, priority: 65, available: yes)
input:iec958-stereo: Digital Stereo (IEC958) Input (sinks: 0, sources: 1, priority: 55, available: yes)
pro-audio: Pro Audio (sinks: 1, sources: 1, priority: 1, available: yes)
Active Profile: output:analog-stereo+input:analog-stereo
Ports:
analog-input-mic: Microphone (type: Mic, priority: 8700, latency offset: 0 usec, availability unknown)
Properties:
port.type = "mic"
device.icon_name = "audio-input-microphone"
card.profile.port = "0"
Part of profile(s): input:analog-stereo, output:analog-stereo+input:analog-stereo, output:iec958-stereo+input:analog-stereo
iec958-stereo-input: Digital Input (S/PDIF) (type: SPDIF, priority: 0, latency offset: 0 usec, availability unknown)
Properties:
port.type = "spdif"
card.profile.port = "1"
Part of profile(s): input:iec958-stereo, output:analog-stereo+input:iec958-stereo, output:iec958-stereo+input:iec958-stereo
analog-output-headphones: Headphones (type: Headphones, priority: 9900, latency offset: 0 usec, availability unknown)
Properties:
port.type = "headphones"
device.icon_name = "audio-headphones"
card.profile.port = "2"
Part of profile(s): output:analog-stereo, output:analog-stereo+input:analog-stereo, output:analog-stereo+input:iec958-stereo
iec958-stereo-output: Digital Output (S/PDIF) (type: SPDIF, priority: 0, latency offset: 0 usec, availability unknown)
Properties:
port.type = "spdif"
card.profile.port = "3"
Part of profile(s): output:iec958-stereo, output:iec958-stereo+input:analog-stereo, output:iec958-stereo+input:iec958-stereo

Card #52
Name: alsa_card.usb-Antlion_Audio_Antlion_Wireless_Microphone-00
Driver: alsa
Owner Module: n/a
Properties:
api.acp.auto-port = "false"
api.acp.auto-profile = "false"
api.alsa.card = "2"
api.alsa.card.longname = "Antlion Audio Antlion Wireless Microphone at usb-0000:00:14.0-2.3.2, full speed"
api.alsa.card.name = "Antlion Wireless Microphone"
api.alsa.path = "hw:2"
api.alsa.use-acp = "true"
api.dbus.ReserveDevice1 = "Audio2"
device.api = "alsa"
device.bus = "usb"
device.bus-id = "usb-Antlion_Audio_Antlion_Wireless_Microphone-00"
device.bus_path = "pci-0000:00:14.0-usb-0:2.3.2:1.0"
device.description = "Antlion Wireless Microphone"
device.enum.api = "udev"
device.form_factor = "microphone"
device.icon_name = "audio-input-microphone-analog-usb"
device.name = "alsa_card.usb-Antlion_Audio_Antlion_Wireless_Microphone-00"
device.nick = "Antlion Wireless Microphone"
device.plugged.usec = "12460625"
device.product.id = "0x0100"
device.product.name = "Antlion Wireless Microphone"
device.serial = "Antlion_Audio_Antlion_Wireless_Microphone"
device.subsystem = "sound"
sysfs.path = "/devices/pci0000:00/0000:00:14.0/usb3/3-2/3-2.3/3-2.3.2/3-2.3.2:1.0/sound/card2"
device.vendor.id = "0x2f96"
device.vendor.name = "Antlion Audio"
media.class = "Audio/Device"
factory.id = "14"
client.id = "35"
object.id = "52"
object.serial = "52"
object.path = "alsa:pcm:2"
alsa.card = "2"
alsa.card_name = "Antlion Wireless Microphone"
alsa.long_card_name = "Antlion Audio Antlion Wireless Microphone at usb-0000:00:14.0-2.3.2, full speed"
alsa.driver_name = "snd_usb_audio"
alsa.mixer_name = "USB Mixer"
alsa.components = "USB2f96:0100"
alsa.id = "Microphone"
device.string = "2"
Profiles:
off: Off (sinks: 0, sources: 0, priority: 0, available: yes)
pro-audio: Pro Audio (sinks: 0, sources: 1, priority: 1, available: yes)
input:mono-fallback: Mono Input (sinks: 0, sources: 1, priority: 1, available: yes)
Active Profile: input:mono-fallback
Ports:
analog-input-mic: Microphone (type: Mic, priority: 8700, latency offset: 0 usec, availability unknown)
Properties:
port.type = "mic"
device.icon_name = "audio-input-microphone"
card.profile.port = "0"
Part of profile(s): input:mono-fallback

Card #53
Name: alsa_card.usb-Lautsprecher_Teufel_GmbH_Teufel_CINEBAR_ONE_ABCDEF0123456789-00
Driver: alsa
Owner Module: n/a
Properties:
api.acp.auto-port = "false"
api.acp.auto-profile = "false"
api.alsa.card = "4"
api.alsa.card.longname = "Lautsprecher Teufel GmbH Teufel CINEBAR ONE at usb-0000:00:14.0-2.3.4.4, full s"
api.alsa.card.name = "Teufel CINEBAR ONE"
api.alsa.path = "hw:4"
api.alsa.use-acp = "true"
api.dbus.ReserveDevice1 = "Audio4"
device.api = "alsa"
device.bus = "usb"
device.bus-id = "usb-Lautsprecher_Teufel_GmbH_Teufel_CINEBAR_ONE_ABCDEF0123456789-00"
device.bus_path = "pci-0000:00:14.0-usb-0:2.3.4.4:1.0"
device.description = "Teufel CINEBAR ONE"
device.enum.api = "udev"
device.icon_name = "audio-card-analog-usb"
device.name = "alsa_card.usb-Lautsprecher_Teufel_GmbH_Teufel_CINEBAR_ONE_ABCDEF0123456789-00"
device.nick = "Teufel CINEBAR ONE"
device.plugged.usec = "12634325"
device.product.id = "0x0027"
device.product.name = "Teufel CINEBAR ONE"
device.serial = "Lautsprecher_Teufel_GmbH_Teufel_CINEBAR_ONE_ABCDEF0123456789"
device.subsystem = "sound"
sysfs.path = "/devices/pci0000:00/0000:00:14.0/usb3/3-2/3-2.3/3-2.3.4/3-2.3.4.4/3-2.3.4.4:1.0/sound/card4"
device.vendor.id = "0x2cc2"
device.vendor.name = "Lautsprecher Teufel GmbH"
media.class = "Audio/Device"
factory.id = "14"
client.id = "35"
object.id = "53"
object.serial = "53"
object.path = "alsa:pcm:4"
alsa.card = "4"
alsa.card_name = "Teufel CINEBAR ONE"
alsa.long_card_name = "Lautsprecher Teufel GmbH Teufel CINEBAR ONE at usb-0000:00:14.0-2.3.4.4, full s"
alsa.driver_name = "snd_usb_audio"
alsa.mixer_name = "USB Mixer"
alsa.components = "USB2cc2:0027"
alsa.id = "ONE"
device.string = "4"
Profiles:
off: Off (sinks: 0, sources: 0, priority: 0, available: yes)
output:analog-stereo+input:mono-fallback: Analog Stereo Output + Mono Input (sinks: 1, sources: 1, priority: 6501, available: yes)
output:analog-stereo: Analog Stereo Output (sinks: 1, sources: 0, priority: 6500, available: yes)
output:iec958-stereo+input:mono-fallback: Digital Stereo (IEC958) Output + Mono Input (sinks: 1, sources: 1, priority: 5501, available: yes)
output:iec958-stereo: Digital Stereo (IEC958) Output (sinks: 1, sources: 0, priority: 5500, available: yes)
pro-audio: Pro Audio (sinks: 1, sources: 1, priority: 1, available: yes)
input:mono-fallback: Mono Input (sinks: 0, sources: 1, priority: 1, available: yes)
Active Profile: output:iec958-stereo+input:mono-fallback
Ports:
analog-input-mic: Microphone (type: Mic, priority: 8700, latency offset: 0 usec, availability unknown)
Properties:
port.type = "mic"
device.icon_name = "audio-input-microphone"
card.profile.port = "0"
Part of profile(s): input:mono-fallback, output:analog-stereo+input:mono-fallback, output:iec958-stereo+input:mono-fallback
analog-output: Analog Output (type: Analog, priority: 9900, latency offset: 0 usec, availability unknown)
Properties:
port.type = "analog"
card.profile.port = "1"
Part of profile(s): output:analog-stereo, output:analog-stereo+input:mono-fallback
iec958-stereo-output: Digital Output (S/PDIF) (type: SPDIF, priority: 0, latency offset: 0 usec, availability unknown)
Properties:
port.type = "spdif"
card.profile.port = "2"
Part of profile(s): output:iec958-stereo, output:iec958-stereo+input:mono-fallback

Card #54
Name: alsa_card.pci-0000_00_1f.3-platform-skl_hda_dsp_generic
Driver: alsa
Owner Module: n/a
Properties:
api.acp.auto-port = "false"
api.acp.auto-profile = "false"
api.alsa.card = "5"
api.alsa.card.longname = "Alienware-Alienwarex17R1-1.24.0"
api.alsa.card.name = "sof-hda-dsp"
api.alsa.path = "hw:5"
api.alsa.use-acp = "true"
api.dbus.ReserveDevice1 = "Audio5"
device.api = "alsa"
device.bus = "pci"
device.bus_path = "pci-0000:00:1f.3-platform-skl_hda_dsp_generic"
device.description = "Tiger Lake-H HD Audio Controller"
device.enum.api = "udev"
device.icon_name = "audio-card-analog-pci"
device.name = "alsa_card.pci-0000_00_1f.3-platform-skl_hda_dsp_generic"
device.nick = "sof-hda-dsp"
device.plugged.usec = "13848499"
device.product.id = "0x43c8"
device.product.name = "Tiger Lake-H HD Audio Controller"
device.subsystem = "sound"
sysfs.path = "/devices/pci0000:00/0000:00:1f.3/skl_hda_dsp_generic/sound/card5"
device.vendor.id = "0x8086"
device.vendor.name = "Intel Corporation"
media.class = "Audio/Device"
factory.id = "14"
client.id = "35"
object.id = "54"
object.serial = "54"
object.path = "alsa:pcm:5"
alsa.card = "5"
alsa.card_name = "sof-hda-dsp"
alsa.long_card_name = "Alienware-Alienwarex17R1-1.24.0"
alsa.driver_name = "snd_soc_skl_hda_dsp"
alsa.mixer_name = "Realtek ALC289"
alsa.components = "HDA:80862812,80860101,00100000 HDA:10ec0289,10280a8f,00100002 cfg-dmics:2"
alsa.id = "sofhdadsp"
device.string = "5"
Profiles:
off: Off (sinks: 0, sources: 0, priority: 0, available: yes)
HiFi: Play HiFi quality Music (sinks: 4, sources: 2, priority: 8000, available: yes)
pro-audio: Pro Audio (sinks: 5, sources: 3, priority: 1, available: yes)
Active Profile: HiFi
Ports:
[Out] HDMI3: HDMI / DisplayPort 3 Output (type: HDMI, priority: 700, latency offset: 0 usec, availability group: HDMI/DP,pcm=5, not available)
Properties:
port.type = "hdmi"
port.availability-group = "HDMI/DP,pcm=5"
device.icon_name = "video-display"
card.profile.port = "0"
Part of profile(s): HiFi
[Out] HDMI2: HDMI / DisplayPort 2 Output (type: HDMI, priority: 600, latency offset: 0 usec, availability group: HDMI/DP,pcm=4, not available)
Properties:
port.type = "hdmi"
port.availability-group = "HDMI/DP,pcm=4"
device.icon_name = "video-display"
card.profile.port = "1"
Part of profile(s): HiFi
[Out] HDMI1: HDMI / DisplayPort 1 Output (type: HDMI, priority: 500, latency offset: 0 usec, availability group: HDMI/DP,pcm=3, not available)
Properties:
port.type = "hdmi"
port.availability-group = "HDMI/DP,pcm=3"
device.icon_name = "video-display"
card.profile.port = "2"
Part of profile(s): HiFi
[Out] Speaker: Speaker (type: Speaker, priority: 100, latency offset: 0 usec, availability unknown)
Properties:
port.type = "speaker"
device.icon_name = "audio-speakers"
card.profile.port = "3"
Part of profile(s): HiFi
[Out] Headphones: Headphones (type: Headphones, priority: 200, latency offset: 0 usec, availability group: Headphone Mic, not available)
Properties:
port.type = "headphones"
port.availability-group = "Headphone Mic"
device.icon_name = "audio-headphones"
card.profile.port = "4"
Part of profile(s): HiFi
[In] Headset: Headset Mono Microphone (type: Headset, priority: 300, latency offset: 0 usec, availability group: Headphone Mic, not available)
Properties:
port.type = "headset"
port.availability-group = "Headphone Mic"
device.icon_name = "audio-headset"
card.profile.port = "5"
Part of profile(s): HiFi
[In] Mic2: Headphones Stereo Microphone (type: Mic, priority: 200, latency offset: 0 usec, availability group: Headphone Mic, not available)
Properties:
port.type = "mic"
port.availability-group = "Headphone Mic"
device.icon_name = "audio-input-microphone"
card.profile.port = "6"
Part of profile(s): HiFi
[In] Mic1: Digital Microphone (type: Mic, priority: 100, latency offset: 0 usec, availability unknown)
Properties:
port.type = "mic"
device.icon_name = "audio-input-microphone"
card.profile.port = "7"
Part of profile(s): HiFi
Sink #66
State: SUSPENDED
Name: alsa_output.usb-Generic_USB_Audio_201405280001-00.analog-stereo
Description: USB Audio Analog Stereo
Driver: PipeWire
Sample Specification: s24le 2ch 48000Hz
Channel Map: front-left,front-right
Owner Module: 4294967295
Mute: no
Volume: front-left: 26214 /  40% / -23.88 dB,   front-right: 26214 /  40% / -23.88 dB
       balance 0.00
Base Volume: 65536 / 100% / 0.00 dB
Monitor Source: alsa_output.usb-Generic_USB_Audio_201405280001-00.analog-stereo.monitor
Latency: 0 usec, configured 0 usec
Flags: HARDWARE HW_MUTE_CTRL HW_VOLUME_CTRL DECIBEL_VOLUME LATENCY
Properties:
alsa.card = "1"
alsa.card_name = "USB Audio"
alsa.class = "generic"
alsa.components = "USB0bda:482a"
alsa.device = "0"
alsa.driver_name = "snd_usb_audio"
alsa.id = "Audio"
alsa.long_card_name = "Generic USB Audio at usb-0000:00:14.0-2.1.3, high speed"
alsa.mixer_name = "USB Mixer"
alsa.name = "USB Audio"
alsa.resolution_bits = "16"
alsa.subclass = "generic-mix"
alsa.subdevice = "0"
alsa.subdevice_name = "subdevice #0"
api.alsa.card.longname = "Generic USB Audio at usb-0000:00:14.0-2.1.3, high speed"
api.alsa.card.name = "USB Audio"
api.alsa.path = "front:1"
api.alsa.pcm.card = "1"
api.alsa.pcm.stream = "playback"
audio.channels = "2"
audio.position = "FL,FR"
card.profile.device = "4"
device.api = "alsa"
device.class = "sound"
device.id = "51"
device.profile.description = "Analog Stereo"
device.profile.name = "analog-stereo"
device.routes = "1"
factory.name = "api.alsa.pcm.sink"
media.class = "Audio/Sink"
device.description = "USB Audio"
node.name = "alsa_output.usb-Generic_USB_Audio_201405280001-00.analog-stereo"
node.nick = "USB Audio"
node.pause-on-idle = "false"
object.path = "alsa:pcm:1:front:1:playback"
priority.driver = "1009"
priority.session = "1009"
factory.id = "18"
clock.quantum-limit = "8192"
client.id = "35"
node.driver = "true"
factory.mode = "merge"
audio.adapt.follower = ""
library.name = "audioconvert/libspa-audioconvert"
object.id = "66"
object.serial = "66"
api.acp.auto-port = "false"
api.acp.auto-profile = "false"
api.alsa.card = "1"
api.alsa.use-acp = "true"
api.dbus.ReserveDevice1 = "Audio1"
device.bus = "usb"
device.bus-id = "usb-Generic_USB_Audio_201405280001-00"
device.bus_path = "pci-0000:00:14.0-usb-0:2.1.3:1.0"
device.enum.api = "udev"
device.icon_name = "audio-card-analog-usb"
device.name = "alsa_card.usb-Generic_USB_Audio_201405280001-00"
device.nick = "USB Audio"
device.plugged.usec = "12452509"
device.product.id = "0x482a"
device.product.name = "USB Audio"
device.serial = "Generic_USB_Audio_201405280001"
device.subsystem = "sound"
sysfs.path = "/devices/pci0000:00/0000:00:14.0/usb3/3-2/3-2.1/3-2.1.3/3-2.1.3:1.0/sound/card1"
device.vendor.id = "0x0bda"
device.vendor.name = "Realtek Semiconductor Corp."
device.string = "1"
Ports:
analog-output-headphones: Headphones (type: Headphones, priority: 9900, availability unknown)
Active Port: analog-output-headphones
Formats:
pcm

Sink #71
State: SUSPENDED
Name: alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__hw_sofhdadsp_5__sink
Description: Tiger Lake-H HD Audio Controller HDMI / DisplayPort 3 Output
Driver: PipeWire
Sample Specification: s24-32le 2ch 48000Hz
Channel Map: front-left,front-right
Owner Module: 4294967295
Mute: no
Volume: front-left: 65536 / 100% / 0.00 dB,   front-right: 65536 / 100% / 0.00 dB
       balance 0.00
Base Volume: 65536 / 100% / 0.00 dB
Monitor Source: alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__hw_sofhdadsp_5__sink.monitor
Latency: 0 usec, configured 0 usec
Flags: HARDWARE DECIBEL_VOLUME LATENCY
Properties:
alsa.card = "5"
alsa.card_name = "sof-hda-dsp"
alsa.class = "generic"
alsa.components = "HDA:80862812,80860101,00100000 HDA:10ec0289,10280a8f,00100002 cfg-dmics:2"
alsa.device = "5"
alsa.driver_name = "snd_soc_skl_hda_dsp"
alsa.id = "sofhdadsp"
alsa.long_card_name = "Alienware-Alienwarex17R1-1.24.0"
alsa.mixer_device = "_ucm000B.hw:sofhdadsp"
alsa.mixer_name = "Realtek ALC289"
alsa.name = ""
alsa.resolution_bits = "16"
alsa.subclass = "generic-mix"
alsa.subdevice = "0"
alsa.subdevice_name = "subdevice #0"
api.alsa.card.longname = "Alienware-Alienwarex17R1-1.24.0"
api.alsa.card.name = "sof-hda-dsp"
api.alsa.open.ucm = "true"
api.alsa.path = "hw:sofhdadsp,5"
api.alsa.pcm.card = "5"
api.alsa.pcm.stream = "playback"
audio.channels = "2"
audio.position = "FL,FR"
card.profile.device = "0"
device.api = "alsa"
device.class = "sound"
device.id = "54"
device.profile.description = "HDMI / DisplayPort 3 Output"
device.profile.name = "HiFi: hw:sofhdadsp,5: sink"
device.routes = "1"
factory.name = "api.alsa.pcm.sink"
media.class = "Audio/Sink"
device.description = "Tiger Lake-H HD Audio Controller"
node.name = "alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__hw_sofhdadsp_5__sink"
node.nick = "HDMI / DisplayPort 3 Output"
node.pause-on-idle = "false"
object.path = "alsa:pcm:5:hw:sofhdadsp,5:playback"
priority.driver = "664"
priority.session = "664"
factory.id = "18"
clock.quantum-limit = "8192"
client.id = "35"
node.driver = "true"
factory.mode = "merge"
audio.adapt.follower = ""
library.name = "audioconvert/libspa-audioconvert"
object.id = "62"
object.serial = "71"
api.acp.auto-port = "false"
api.acp.auto-profile = "false"
api.alsa.card = "5"
api.alsa.use-acp = "true"
api.dbus.ReserveDevice1 = "Audio5"
device.bus = "pci"
device.bus_path = "pci-0000:00:1f.3-platform-skl_hda_dsp_generic"
device.enum.api = "udev"
device.icon_name = "audio-card-analog-pci"
device.name = "alsa_card.pci-0000_00_1f.3-platform-skl_hda_dsp_generic"
device.nick = "sof-hda-dsp"
device.plugged.usec = "13848499"
device.product.id = "0x43c8"
device.product.name = "Tiger Lake-H HD Audio Controller"
device.subsystem = "sound"
sysfs.path = "/devices/pci0000:00/0000:00:1f.3/skl_hda_dsp_generic/sound/card5"
device.vendor.id = "0x8086"
device.vendor.name = "Intel Corporation"
device.string = "5"
Ports:
[Out] HDMI3: HDMI / DisplayPort 3 Output (type: HDMI, priority: 700, availability group: HDMI/DP,pcm=5, not available)
Active Port: [Out] HDMI3
Formats:
pcm

Sink #72
State: SUSPENDED
Name: alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__hw_sofhdadsp_4__sink
Description: Tiger Lake-H HD Audio Controller HDMI / DisplayPort 2 Output
Driver: PipeWire
Sample Specification: s24-32le 2ch 48000Hz
Channel Map: front-left,front-right
Owner Module: 4294967295
Mute: no
Volume: front-left: 65536 / 100% / 0.00 dB,   front-right: 65536 / 100% / 0.00 dB
       balance 0.00
Base Volume: 65536 / 100% / 0.00 dB
Monitor Source: alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__hw_sofhdadsp_4__sink.monitor
Latency: 0 usec, configured 0 usec
Flags: HARDWARE DECIBEL_VOLUME LATENCY
Properties:
alsa.card = "5"
alsa.card_name = "sof-hda-dsp"
alsa.class = "generic"
alsa.components = "HDA:80862812,80860101,00100000 HDA:10ec0289,10280a8f,00100002 cfg-dmics:2"
alsa.device = "4"
alsa.driver_name = "snd_soc_skl_hda_dsp"
alsa.id = "sofhdadsp"
alsa.long_card_name = "Alienware-Alienwarex17R1-1.24.0"
alsa.mixer_device = "_ucm000B.hw:sofhdadsp"
alsa.mixer_name = "Realtek ALC289"
alsa.name = ""
alsa.resolution_bits = "16"
alsa.subclass = "generic-mix"
alsa.subdevice = "0"
alsa.subdevice_name = "subdevice #0"
api.alsa.card.longname = "Alienware-Alienwarex17R1-1.24.0"
api.alsa.card.name = "sof-hda-dsp"
api.alsa.open.ucm = "true"
api.alsa.path = "hw:sofhdadsp,4"
api.alsa.pcm.card = "5"
api.alsa.pcm.stream = "playback"
audio.channels = "2"
audio.position = "FL,FR"
card.profile.device = "1"
device.api = "alsa"
device.class = "sound"
device.id = "54"
device.profile.description = "HDMI / DisplayPort 2 Output"
device.profile.name = "HiFi: hw:sofhdadsp,4: sink"
device.routes = "1"
factory.name = "api.alsa.pcm.sink"
media.class = "Audio/Sink"
device.description = "Tiger Lake-H HD Audio Controller"
node.name = "alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__hw_sofhdadsp_4__sink"
node.nick = "HDMI / DisplayPort 2 Output"
node.pause-on-idle = "false"
object.path = "alsa:pcm:5:hw:sofhdadsp,4:playback"
priority.driver = "680"
priority.session = "680"
factory.id = "18"
clock.quantum-limit = "8192"
client.id = "35"
node.driver = "true"
factory.mode = "merge"
audio.adapt.follower = ""
library.name = "audioconvert/libspa-audioconvert"
object.id = "63"
object.serial = "72"
api.acp.auto-port = "false"
api.acp.auto-profile = "false"
api.alsa.card = "5"
api.alsa.use-acp = "true"
api.dbus.ReserveDevice1 = "Audio5"
device.bus = "pci"
device.bus_path = "pci-0000:00:1f.3-platform-skl_hda_dsp_generic"
device.enum.api = "udev"
device.icon_name = "audio-card-analog-pci"
device.name = "alsa_card.pci-0000_00_1f.3-platform-skl_hda_dsp_generic"
device.nick = "sof-hda-dsp"
device.plugged.usec = "13848499"
device.product.id = "0x43c8"
device.product.name = "Tiger Lake-H HD Audio Controller"
device.subsystem = "sound"
sysfs.path = "/devices/pci0000:00/0000:00:1f.3/skl_hda_dsp_generic/sound/card5"
device.vendor.id = "0x8086"
device.vendor.name = "Intel Corporation"
device.string = "5"
Ports:
[Out] HDMI2: HDMI / DisplayPort 2 Output (type: HDMI, priority: 600, availability group: HDMI/DP,pcm=4, not available)
Active Port: [Out] HDMI2
Formats:
pcm

Sink #73
State: SUSPENDED
Name: alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__hw_sofhdadsp_3__sink
Description: Tiger Lake-H HD Audio Controller HDMI / DisplayPort 1 Output
Driver: PipeWire
Sample Specification: s24-32le 2ch 48000Hz
Channel Map: front-left,front-right
Owner Module: 4294967295
Mute: no
Volume: front-left: 65536 / 100% / 0.00 dB,   front-right: 65536 / 100% / 0.00 dB
       balance 0.00
Base Volume: 65536 / 100% / 0.00 dB
Monitor Source: alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__hw_sofhdadsp_3__sink.monitor
Latency: 0 usec, configured 0 usec
Flags: HARDWARE DECIBEL_VOLUME LATENCY
Properties:
alsa.card = "5"
alsa.card_name = "sof-hda-dsp"
alsa.class = "generic"
alsa.components = "HDA:80862812,80860101,00100000 HDA:10ec0289,10280a8f,00100002 cfg-dmics:2"
alsa.device = "3"
alsa.driver_name = "snd_soc_skl_hda_dsp"
alsa.id = "sofhdadsp"
alsa.long_card_name = "Alienware-Alienwarex17R1-1.24.0"
alsa.mixer_device = "_ucm000B.hw:sofhdadsp"
alsa.mixer_name = "Realtek ALC289"
alsa.name = ""
alsa.resolution_bits = "16"
alsa.subclass = "generic-mix"
alsa.subdevice = "0"
alsa.subdevice_name = "subdevice #0"
api.alsa.card.longname = "Alienware-Alienwarex17R1-1.24.0"
api.alsa.card.name = "sof-hda-dsp"
api.alsa.open.ucm = "true"
api.alsa.path = "hw:sofhdadsp,3"
api.alsa.pcm.card = "5"
api.alsa.pcm.stream = "playback"
audio.channels = "2"
audio.position = "FL,FR"
card.profile.device = "2"
device.api = "alsa"
device.class = "sound"
device.id = "54"
device.profile.description = "HDMI / DisplayPort 1 Output"
device.profile.name = "HiFi: hw:sofhdadsp,3: sink"
device.routes = "1"
factory.name = "api.alsa.pcm.sink"
media.class = "Audio/Sink"
device.description = "Tiger Lake-H HD Audio Controller"
node.name = "alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__hw_sofhdadsp_3__sink"
node.nick = "HDMI / DisplayPort 1 Output"
node.pause-on-idle = "false"
object.path = "alsa:pcm:5:hw:sofhdadsp,3:playback"
priority.driver = "696"
priority.session = "696"
factory.id = "18"
clock.quantum-limit = "8192"
client.id = "35"
node.driver = "true"
factory.mode = "merge"
audio.adapt.follower = ""
library.name = "audioconvert/libspa-audioconvert"
object.id = "61"
object.serial = "73"
api.acp.auto-port = "false"
api.acp.auto-profile = "false"
api.alsa.card = "5"
api.alsa.use-acp = "true"
api.dbus.ReserveDevice1 = "Audio5"
device.bus = "pci"
device.bus_path = "pci-0000:00:1f.3-platform-skl_hda_dsp_generic"
device.enum.api = "udev"
device.icon_name = "audio-card-analog-pci"
device.name = "alsa_card.pci-0000_00_1f.3-platform-skl_hda_dsp_generic"
device.nick = "sof-hda-dsp"
device.plugged.usec = "13848499"
device.product.id = "0x43c8"
device.product.name = "Tiger Lake-H HD Audio Controller"
device.subsystem = "sound"
sysfs.path = "/devices/pci0000:00/0000:00:1f.3/skl_hda_dsp_generic/sound/card5"
device.vendor.id = "0x8086"
device.vendor.name = "Intel Corporation"
device.string = "5"
Ports:
[Out] HDMI1: HDMI / DisplayPort 1 Output (type: HDMI, priority: 500, availability group: HDMI/DP,pcm=3, not available)
Active Port: [Out] HDMI1
Formats:
pcm

Sink #74
State: SUSPENDED
Name: alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__hw_sofhdadsp__sink
Description: Tiger Lake-H HD Audio Controller Speaker + Headphones
Driver: PipeWire
Sample Specification: s32le 2ch 48000Hz
Channel Map: front-left,front-right
Owner Module: 4294967295
Mute: no
Volume: front-left: 26214 /  40% / -23.88 dB,   front-right: 26214 /  40% / -23.88 dB
       balance 0.00
Base Volume: 65536 / 100% / 0.00 dB
Monitor Source: alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__hw_sofhdadsp__sink.monitor
Latency: 0 usec, configured 0 usec
Flags: HARDWARE HW_MUTE_CTRL HW_VOLUME_CTRL DECIBEL_VOLUME LATENCY
Properties:
alsa.card = "5"
alsa.card_name = "sof-hda-dsp"
alsa.class = "generic"
alsa.components = "HDA:80862812,80860101,00100000 HDA:10ec0289,10280a8f,00100002 cfg-dmics:2"
alsa.device = "0"
alsa.driver_name = "snd_soc_skl_hda_dsp"
alsa.id = "sofhdadsp"
alsa.long_card_name = "Alienware-Alienwarex17R1-1.24.0"
alsa.mixer_device = "_ucm000B.hw:sofhdadsp"
alsa.mixer_name = "Realtek ALC289"
alsa.name = ""
alsa.resolution_bits = "16"
alsa.subclass = "generic-mix"
alsa.subdevice = "0"
alsa.subdevice_name = "subdevice #0"
api.alsa.card.longname = "Alienware-Alienwarex17R1-1.24.0"
api.alsa.card.name = "sof-hda-dsp"
api.alsa.open.ucm = "true"
api.alsa.path = "hw:sofhdadsp"
api.alsa.pcm.card = "5"
api.alsa.pcm.stream = "playback"
audio.channels = "2"
audio.position = "FL,FR"
card.profile.device = "3"
device.api = "alsa"
device.class = "sound"
device.id = "54"
device.profile.description = "Speaker + Headphones"
device.profile.name = "HiFi: hw:sofhdadsp: sink"
device.routes = "2"
factory.name = "api.alsa.pcm.sink"
media.class = "Audio/Sink"
device.description = "Tiger Lake-H HD Audio Controller"
node.name = "alsa_output.pci-0000_00_1f.3-platform-skl_hda_dsp_generic.HiFi__hw_sofhdadsp__sink"
node.nick = "Speaker + Headphones"
node.pause-on-idle = "false"
object.path = "alsa:pcm:5:hw:sofhdadsp:playback"
priority.driver = "1000"
priority.session = "1000"
factory.id = "18"
clock.quantum-limit = "8192"
client.id = "35"
node.driver = "true"
factory.mode = "merge"
audio.adapt.follower = ""
library.name = "audioconvert/libspa-audioconvert"
object.id = "69"
object.serial = "74"
api.acp.auto-port = "false"
api.acp.auto-profile = "false"
api.alsa.card = "5"
api.alsa.use-acp = "true"
api.dbus.ReserveDevice1 = "Audio5"
device.bus = "pci"
device.bus_path = "pci-0000:00:1f.3-platform-skl_hda_dsp_generic"
device.enum.api = "udev"
device.icon_name = "audio-card-analog-pci"
device.name = "alsa_card.pci-0000_00_1f.3-platform-skl_hda_dsp_generic"
device.nick = "sof-hda-dsp"
device.plugged.usec = "13848499"
device.product.id = "0x43c8"
device.product.name = "Tiger Lake-H HD Audio Controller"
device.subsystem = "sound"
sysfs.path = "/devices/pci0000:00/0000:00:1f.3/skl_hda_dsp_generic/sound/card5"
device.vendor.id = "0x8086"
device.vendor.name = "Intel Corporation"
device.string = "5"
Ports:
[Out] Speaker: Speaker (type: Speaker, priority: 100, availability unknown)
[Out] Headphones: Headphones (type: Headphones, priority: 200, availability group: Headphone Mic, not available)
Active Port: [Out] Speaker
Formats:
pcm

Sink #150
State: SUSPENDED
Name: alsa_output.usb-Lautsprecher_Teufel_GmbH_Teufel_CINEBAR_ONE_ABCDEF0123456789-00.iec958-stereo
Description: Teufel CINEBAR ONE Digital Stereo (IEC958)
Driver: PipeWire
Sample Specification: s16le 2ch 48000Hz
Channel Map: front-left,front-right
Owner Module: 4294967295
Mute: no
Volume: front-left: 26214 /  40% / -23.88 dB,   front-right: 26214 /  40% / -23.88 dB
       balance 0.00
Base Volume: 65536 / 100% / 0.00 dB
Monitor Source: alsa_output.usb-Lautsprecher_Teufel_GmbH_Teufel_CINEBAR_ONE_ABCDEF0123456789-00.iec958-stereo.monitor
Latency: 0 usec, configured 0 usec
Flags: HARDWARE DECIBEL_VOLUME LATENCY SET_FORMATS
Properties:
alsa.card = "4"
alsa.card_name = "Teufel CINEBAR ONE"
alsa.class = "generic"
alsa.components = "USB2cc2:0027"
alsa.device = "0"
alsa.driver_name = "snd_usb_audio"
alsa.id = "ONE"
alsa.long_card_name = "Lautsprecher Teufel GmbH Teufel CINEBAR ONE at usb-0000:00:14.0-2.3.4.4, full s"
alsa.mixer_name = "USB Mixer"
alsa.name = "USB Audio"
alsa.resolution_bits = "16"
alsa.subclass = "generic-mix"
alsa.subdevice = "0"
alsa.subdevice_name = "subdevice #0"
api.alsa.card.longname = "Lautsprecher Teufel GmbH Teufel CINEBAR ONE at usb-0000:00:14.0-2.3.4.4, full s"
api.alsa.card.name = "Teufel CINEBAR ONE"
api.alsa.path = "iec958:4"
api.alsa.pcm.card = "4"
api.alsa.pcm.stream = "playback"
audio.channels = "2"
audio.position = "FL,FR"
card.profile.device = "4"
device.api = "alsa"
device.class = "sound"
device.id = "53"
device.profile.description = "Digital Stereo (IEC958)"
device.profile.name = "iec958-stereo"
device.routes = "1"
factory.name = "api.alsa.pcm.sink"
media.class = "Audio/Sink"
device.description = "Teufel CINEBAR ONE"
node.name = "alsa_output.usb-Lautsprecher_Teufel_GmbH_Teufel_CINEBAR_ONE_ABCDEF0123456789-00.iec958-stereo"
node.nick = "Teufel CINEBAR ONE"
node.pause-on-idle = "false"
object.path = "alsa:pcm:4:iec958:4:playback"
priority.driver = "1008"
priority.session = "1008"
factory.id = "18"
clock.quantum-limit = "8192"
client.id = "35"
node.driver = "true"
factory.mode = "merge"
audio.adapt.follower = ""
library.name = "audioconvert/libspa-audioconvert"
object.id = "64"
object.serial = "150"
api.acp.auto-port = "false"
api.acp.auto-profile = "false"
api.alsa.card = "4"
api.alsa.use-acp = "true"
api.dbus.ReserveDevice1 = "Audio4"
device.bus = "usb"
device.bus-id = "usb-Lautsprecher_Teufel_GmbH_Teufel_CINEBAR_ONE_ABCDEF0123456789-00"
device.bus_path = "pci-0000:00:14.0-usb-0:2.3.4.4:1.0"
device.enum.api = "udev"
device.icon_name = "audio-card-analog-usb"
device.name = "alsa_card.usb-Lautsprecher_Teufel_GmbH_Teufel_CINEBAR_ONE_ABCDEF0123456789-00"
device.nick = "Teufel CINEBAR ONE"
device.plugged.usec = "12634325"
device.product.id = "0x0027"
device.product.name = "Teufel CINEBAR ONE"
device.serial = "Lautsprecher_Teufel_GmbH_Teufel_CINEBAR_ONE_ABCDEF0123456789"
device.subsystem = "sound"
sysfs.path = "/devices/pci0000:00/0000:00:14.0/usb3/3-2/3-2.3/3-2.3.4/3-2.3.4.4/3-2.3.4.4:1.0/sound/card4"
device.vendor.id = "0x2cc2"
device.vendor.name = "Lautsprecher Teufel GmbH"
device.string = "4"
Ports:
iec958-stereo-output: Digital Output (S/PDIF) (type: SPDIF, priority: 0, availability unknown)
Active Port: iec958-stereo-output
Formats:
pcm

Sink #243
State: SUSPENDED
Name: alsa_output.pci-0000_01_00.1.hdmi-stereo
Description: GA104 High Definition Audio Controller Digital Stereo (HDMI)
Driver: PipeWire
Sample Specification: s32le 2ch 48000Hz
Channel Map: front-left,front-right
Owner Module: 4294967295
Mute: no
Volume: front-left: 65536 / 100% / 0.00 dB,   front-right: 65536 / 100% / 0.00 dB
       balance 0.00
Base Volume: 65536 / 100% / 0.00 dB
Monitor Source: alsa_output.pci-0000_01_00.1.hdmi-stereo.monitor
Latency: 0 usec, configured 0 usec
Flags: HARDWARE DECIBEL_VOLUME LATENCY SET_FORMATS
Properties:
alsa.card = "0"
alsa.card_name = "HDA NVidia"
alsa.class = "generic"
alsa.components = "HDA:10de009e,10de0000,00100100"
alsa.device = "3"
alsa.driver_name = "snd_hda_intel"
alsa.id = "NVidia"
alsa.long_card_name = "HDA NVidia at 0x84080000 irq 17"
alsa.mixer_name = "Nvidia GPU 9e HDMI/DP"
alsa.name = "HDMI 0"
alsa.resolution_bits = "16"
alsa.subclass = "generic-mix"
alsa.subdevice = "0"
alsa.subdevice_name = "subdevice #0"
api.alsa.card.longname = "HDA NVidia at 0x84080000 irq 17"
api.alsa.card.name = "HDA NVidia"
api.alsa.path = "hdmi:0"
api.alsa.pcm.card = "0"
api.alsa.pcm.stream = "playback"
audio.channels = "2"
audio.position = "FL,FR"
card.profile.device = "4"
device.api = "alsa"
device.class = "sound"
device.id = "49"
device.profile.description = "Digital Stereo (HDMI)"
device.profile.name = "hdmi-stereo"
device.routes = "1"
factory.name = "api.alsa.pcm.sink"
media.class = "Audio/Sink"
device.description = "GA104 High Definition Audio Controller"
node.name = "alsa_output.pci-0000_01_00.1.hdmi-stereo"
node.nick = "HDMI 0"
node.pause-on-idle = "false"
object.path = "alsa:pcm:0:hdmi:0:playback"
priority.driver = "696"
priority.session = "696"
factory.id = "18"
clock.quantum-limit = "8192"
client.id = "35"
node.driver = "true"
factory.mode = "merge"
audio.adapt.follower = ""
library.name = "audioconvert/libspa-audioconvert"
object.id = "106"
object.serial = "243"
api.acp.auto-port = "false"
api.acp.auto-profile = "false"
api.alsa.card = "0"
api.alsa.use-acp = "true"
api.dbus.ReserveDevice1 = "Audio0"
device.bus = "pci"
device.bus_path = "pci-0000:01:00.1"
device.enum.api = "udev"
device.icon_name = "audio-card-analog-pci"
device.name = "alsa_card.pci-0000_01_00.1"
device.nick = "HDA NVidia"
device.plugged.usec = "12756105"
device.product.id = "0x228b"
device.product.name = "GA104 High Definition Audio Controller"
device.subsystem = "sound"
sysfs.path = "/devices/pci0000:00/0000:00:01.0/0000:01:00.1/sound/card0"
device.vendor.id = "0x10de"
device.vendor.name = "NVIDIA Corporation"
device.string = "0"
Ports:
hdmi-output-0: HDMI / DisplayPort (type: HDMI, priority: 5900, availability group: Legacy 1, available)
Active Port: hdmi-output-0
Formats:
pcm

jul.cgn · February 7, 2025, 5:30pm

A little bit of progress:

I found this thread on nvidia forums (that thread is really complicated and probably outdated) and when I do

sudo su

echo 1 > /sys/bus/pci/devices/0000:00:01.0/rescan

lspci -H1
00:00.0 Host bridge: Intel Corporation 11th Gen Core Processor Host Bridge/DRAM Registers (rev 05)
00:01.0 PCI bridge: Intel Corporation 11th Gen Core Processor PCIe Controller #1 (rev 05)
00:02.0 VGA compatible controller: Intel Corporation TigerLake-H GT1 [UHD Graphics] (rev 01)
00:04.0 Signal processing controller: Intel Corporation TigerLake-LP Dynamic Tuning Processor Participant (rev 05)
00:06.0 PCI bridge: Intel Corporation 11th Gen Core Processor PCIe Controller #0 (rev 05)
00:0a.0 Signal processing controller: Intel Corporation Tigerlake Telemetry Aggregator Driver (rev 01)
00:12.0 Serial controller: Intel Corporation Tiger Lake-H Integrated Sensor Hub (rev 11)
00:14.0 USB controller: Intel Corporation Tiger Lake-H USB 3.2 Gen 2x1 xHCI Host Controller (rev 11)
00:14.2 RAM memory: Intel Corporation Tiger Lake-H Shared SRAM (rev 11)
00:15.0 Serial bus controller: Intel Corporation Tiger Lake-H Serial IO I2C Controller #0 (rev 11)
00:16.0 Communication controller: Intel Corporation Tiger Lake-H Management Engine Interface (rev 11)
00:1c.0 PCI bridge: Intel Corporation Tiger Lake-H PCI Express Root Port #5 (rev 11)
00:1c.5 PCI bridge: Intel Corporation Device 43bd (rev 11)
00:1f.0 ISA bridge: Intel Corporation HM570 LPC/eSPI Controller (rev 11)
00:1f.3 Multimedia audio controller: Intel Corporation Tiger Lake-H HD Audio Controller (rev 11)
00:1f.4 SMBus: Intel Corporation Tiger Lake-H SMBus Controller (rev 11)
00:1f.5 Serial bus controller: Intel Corporation Tiger Lake-H SPI Controller (rev 11)
01:00.0 VGA compatible controller: NVIDIA Corporation GA104M [GeForce RTX 3080 Mobile / Max-Q 8GB/16GB] (rev a1)
01:00.1 Audio device: NVIDIA Corporation GA104 High Definition Audio Controller (rev a1)
02:00.0 Non-Volatile memory controller: Sandisk Corp WD PC SN810 / Black SN850 NVMe SSD (rev 01)
3c:00.0 Ethernet controller: Realtek Semiconductor Co., Ltd. Killer E3000 2.5GbE Controller (rev 06)
3d:00.0 Network controller: Intel Corporation Wi-Fi 6E(802.11ax) AX210/AX1675* 2x2 [Typhoon Peak] (rev 1a)

The nvidia audio device shows up!

sudo dmesg
[  950.261574] pci 0000:01:00.1: [10de:228b] type 00 class 0x040300 PCIe Endpoint
[  950.261589] pci 0000:01:00.1: BAR 0 [mem 0x84080000-0x84083fff]
[  950.261771] pci 0000:01:00.1: Adding to iommu group 15
[  950.519962] pci 0000:01:00.1: BAR 0 [mem 0x84080000-0x84083fff]: assigned
[  950.519971] pci 0000:01:00.1: extending delay after power-on from D3hot to 20 msec
[  950.520021] pci 0000:01:00.1: D0 power state depends on 0000:01:00.0
[  950.520071] snd_hda_intel 0000:01:00.1: enabling device (0000 -> 0002)
[  950.520112] snd_hda_intel 0000:01:00.1: Disabling MSI
[  950.520114] snd_hda_intel 0000:01:00.1: Handle vga_switcheroo audio client
[  950.565077] input: HDA NVidia HDMI/DP,pcm=3 as /devices/pci0000:00/0000:00:01.0/0000:01:00.1/sound/card5/input37
[  950.565148] input: HDA NVidia HDMI/DP,pcm=7 as /devices/pci0000:00/0000:00:01.0/0000:01:00.1/sound/card5/input38
[  950.565220] input: HDA NVidia HDMI/DP,pcm=8 as /devices/pci0000:00/0000:00:01.0/0000:01:00.1/sound/card5/input39
[  950.565243] input: HDA NVidia HDMI/DP,pcm=9 as /devices/pci0000:00/0000:00:01.0/0000:01:00.1/sound/card5/input40

However, it’s not showing up in aplay -l and pavucontrol.
