Hi guys.
I’m having these random, short system freezes while using my laptop. It sometimes results in double typing of a letter while using the terminal, or freeze and then speedup of the voice coming from Discord while smartworking.
I searched though journalctl and dmesg, but I couldn’t find anything useful, neither something like a kernel-panic or a UI-related problem.
Can someone point me out to a solution or an hint? It can be very annoying sometimes, especially while typing.
Give us some info
inxi -Fxxxz
and maybe
journalctl -b -p err
Sorry, didn’t know which command I had to run to give you some insights.
inxi -Fxxxz:
System:
Kernel: 5.9.1-arch1-1 x86_64 bits: 64 compiler: gcc v: 10.2.0
Desktop: i3 4.18.2 info: i3bar dm: LightDM 1.30.0 Distro: EndeavourOS
Machine:
Type: Laptop System: HP product: HP Pavilion Gaming Laptop 15-dk0xxx
v: Type1ProductConfigId serial: <filter> Chassis: type: 10
serial: <filter>
Mobo: HP model: 85FC v: 42.42 serial: <filter> UEFI: Insyde v: F.33
date: 07/16/2020
Battery:
ID-1: BAT1 charge: 49.0 Wh condition: 49.0/52.5 Wh (93%) volts: 13.1/11.6
model: Hewlett-Packard PABAS0241231 type: Li-ion serial: <filter>
status: Full
CPU:
Info: 6-Core model: Intel Core i7-9750H bits: 64 type: MT MCP
arch: Kaby Lake rev: A L2 cache: 12.0 MiB
flags: avx avx2 lm nx pae sse sse2 sse3 sse4_1 sse4_2 ssse3 vmx
bogomips: 62431
Speed: 900 MHz min/max: 800/4500 MHz Core speeds (MHz): 1: 900 2: 900
3: 900 4: 900 5: 900 6: 900 7: 900 8: 900 9: 900 10: 900 11: 900 12: 900
Graphics:
Device-1: Intel UHD Graphics 630 vendor: Hewlett-Packard driver: i915
v: kernel bus ID: 00:02.0 chip ID: 8086:3e9b
Device-2: NVIDIA TU117M [GeForce GTX 1650 Mobile / Max-Q]
vendor: Hewlett-Packard driver: nvidia v: 455.28 bus ID: 01:00.0
chip ID: 10de:1f91
Device-3: Chicony HP Wide Vision HD Camera type: USB driver: uvcvideo
bus ID: 1-5:3 chip ID: 04f2:b627
Display: x11 server: X.Org 1.20.9 compositor: xcompmgr
driver: modesetting,nvidia resolution: 1920x1080~60Hz s-dpi: 96
OpenGL: renderer: GeForce GTX 1650/PCIe/SSE2 v: 4.6.0 NVIDIA 455.28
direct render: Yes
Audio:
Device-1: Intel Cannon Lake PCH cAVS vendor: Hewlett-Packard
driver: snd_hda_intel v: kernel bus ID: 00:1f.3 chip ID: 8086:a348
Device-2: SteelSeries ApS type: USB
driver: hid-generic,snd-usb-audio,usbhid bus ID: 1-2.3:9
chip ID: 1038:1294
Sound Server: ALSA v: k5.9.1-arch1-1
Network:
Device-1: Realtek RTL8111/8168/8411 PCI Express Gigabit Ethernet
vendor: Hewlett-Packard driver: r8168 v: 8.048.03-NAPI port: 4000
bus ID: 03:00.0 chip ID: 10ec:8168
IF: eno1 state: down mac: <filter>
Device-2: Realtek RTL8822BE 802.11a/b/g/n/ac WiFi adapter
vendor: Hewlett-Packard driver: rtw_8822be v: N/A port: 3000
bus ID: 05:00.0 chip ID: 10ec:b822
IF: wlan0 state: up mac: <filter>
IF-ID-1: docker0 state: down mac: <filter>
IF-ID-2: tun0 state: unknown speed: 10 Mbps duplex: full mac: N/A
Drives:
Local Storage: total: 1.14 TiB used: 45.45 GiB (3.9%)
ID-1: /dev/nvme0n1 vendor: Samsung model: MZVLB256HAHQ-000H1
size: 238.47 GiB speed: 31.6 Gb/s lanes: 4 serial: <filter> rev: EXD70H1Q
scheme: GPT
ID-2: /dev/sda vendor: Seagate model: ST1000LM049-2GH172 size: 931.51 GiB
speed: 6.0 Gb/s rotation: 7200 rpm serial: <filter> rev: RPM2 scheme: GPT
RAID:
Hardware-1: Intel 82801 Mobile SATA Controller [RAID mode] driver: ahci
v: 3.0 port: 6060 bus ID: 00:17.0 chip ID: 8086.282a rev: 10
Partition:
ID-1: / size: 216.68 GiB used: 45.45 GiB (21.0%) fs: ext4
dev: /dev/nvme0n1p2
Swap:
ID-1: swap-1 type: partition size: 17.02 GiB used: 0 KiB (0.0%)
priority: -2 dev: /dev/nvme0n1p3
Sensors:
System Temperatures: cpu: 46.0 C mobo: 29.8 C gpu: nvidia temp: 39 C
Fan Speeds (RPM): N/A
Info:
Processes: 266 Uptime: 3h 25m Memory: 15.48 GiB used: 1.26 GiB (8.1%)
Init: systemd v: 246 Compilers: gcc: 10.2.0 Packages: 1020 pacman: 1013
snap: 7 Shell: Zsh v: 5.8 running in: xfce4-terminal inxi: 3.1.08
journalctl -b -p err:
-- Logs begin at Fri 2020-10-02 18:19:06 CEST, end at Tue 2020-10-27 15:02:44 CET. --
ott 27 11:37:28 PCABS systemd-udevd[332]: could not read from '/sys/module/pcc_cpufreq/initstate': No such device
ott 27 11:37:30 PCABS kernel: usb 1-2.3: 4:1: cannot set freq 48000 to ep 0x2
ott 27 11:37:30 PCABS kernel: usb 1-2.3: 4:2: cannot set freq 48000 to ep 0x2
ott 27 11:37:30 PCABS kernel: usb 1-2.3: 2:3: cannot get min/max values for control 2 (id 2)
ott 27 11:37:44 PCABS NetworkManager[732]: <error> [1603795064.3459] device (wlan0): addrconf6: failed to start neighbor discovery: failure creating libndp socket: Address family not supported by protocol (97)
ott 27 11:38:33 PCABS pulseaudio[1559]: ALSA woke us up to write new data to the device, but there was actually nothing to write.
ott 27 11:38:33 PCABS pulseaudio[1559]: Most likely this is a bug in the ALSA driver 'snd_usb_audio'. Please report this issue to the ALSA developers.
ott 27 11:38:33 PCABS pulseaudio[1559]: We were woken up with POLLOUT set -- however a subsequent snd_pcm_avail() returned 0 or another value < min_avail.
It froze like twice while writing this reply, ran journalctl -b -p err but it gives me the same output.
Well, according to last 3 it’s something wrong with pulseaudio / alsa, also explains sound stuff…
Not really sure here.
Try LTS Kernel, perhaps it will go better
Found that in HP section table, for similar laptop of Archwiki:
Intel HDA driver: snd_hda_intel ; pulseaudio requires a line to explicitly load an alsa sink for the speaker sound card
Anyone know what exactly they mean here about alsa sink?
Probably something like
load-module module-alsa-sink
load-module module-alsa-source device=hw:1,0
Normally modules are autoloaded by udev.
However I don’t know much about pulse stuff…
Do you have sof-firmware installed. This looks like one of those Intel audio chips that require sof-firmware. Usually the audio is not working at all or something’s not working? Maybe install it and see if this is the issue?
Edit: You’ll need to reboot I think to have it load the modules.
Installed right now, I’ll try it during the day and report back. If this doesn’t work, I’ll try LTS kernel as @keybreak suggested.
I don’t know if sof-firmware did the trick, but now it’s two days without any stuttering. For reference, I downloaded TLPUI too and disabled USB autosuspension (I’m always using Steelseries USB headset) and tweaked the power management a bit.
Thanks guys!
What does journalctl -b -p err show now?
Sorry for the late answer, but I had a couple of busy days at work/home!
journalctl -b -p err
-- Logs begin at Fri 2020-10-02 18:19:06 CEST, end at Tue 2020-11-03 09:41:09 CET. --
nov 03 09:06:57 PCABS NetworkManager[677]: <error> [1604390817.9858] device (wlan0): addrconf6: failed to start neighbor discovery: failure creating libndp socket: Address family not supported by protocol (97)
That’s it!
I’m back here because the issue came back after latest kernel updates. So I decided to switch to LTS and I’m getting this in journalctl -b -p err
-- Logs begin at Fri 2020-10-02 18:19:06 CEST. --
nov 10 10:55:02 PCABS kernel: usb 1-3.3: 4:1: cannot set freq 48000 to ep 0x2
nov 10 10:55:02 PCABS kernel: usb 1-3.3: 4:2: cannot set freq 48000 to ep 0x2
nov 10 10:55:02 PCABS kernel: usb 1-3.3: 2:0: cannot get min/max values for control 2 (id 2)
nov 10 10:55:03 PCABS systemd-udevd[327]: controlC1: /usr/lib/udev/rules.d/78-sound-card.rules:5 Failed to write ATTR{/sys/devices/pci0000:00/0000:00:14.0/usb1/1-3/1-3.3/1-3.3:1.0/sound/card1/controlC1/../uevent}, ignoring: No such file or directory
So I think it related to the USB audio card of the headset. These errors are not triggered when on latest non-LTS kernel.
EDIT: Adding some dmesg | grep usb logs (on LTS, for now):
[ 3.083153] usb 1-3.3: new full-speed USB device number 6 using xhci_hcd
[ 3.246571] usb 1-3.3: New USB device found, idVendor=1038, idProduct=1294, bcdDevice= 1.11
[ 3.246573] usb 1-3.3: New USB device strings: Mfr=4, Product=5, SerialNumber=0
[ 3.246574] usb 1-3.3: Product: Arctis Pro Wireless
[ 3.246575] usb 1-3.3: Manufacturer: SteelSeries
...
[ 4.134910] hid-generic 0003:1038:1290.0001: hiddev0,hidraw0: USB HID v1.11 Device [SteelSeries Arctis Pro Wireless] on usb-0000:00:14.0-3.2/input0
[ 4.134985] hid-generic 0003:1038:1290.0002: hiddev1,hidraw1: USB HID v1.11 Device [SteelSeries Arctis Pro Wireless] on usb-0000:00:14.0-3.2/input1
[ 4.135813] input: SteelSeries Arctis Pro Wireless Consumer Control as /devices/pci0000:00/0000:00:14.0/usb1/1-3/1-3.3/1-3.3:1.5/0003:1038:1294.0003/input/input15
[ 4.213360] input: SteelSeries Arctis Pro Wireless as /devices/pci0000:00/0000:00:14.0/usb1/1-3/1-3.3/1-3.3:1.5/0003:1038:1294.0003/input/input16
[ 4.213650] hid-generic 0003:1038:1294.0003: input,hiddev2,hidraw2: USB HID v1.11 Device [SteelSeries Arctis Pro Wireless] on usb-0000:00:14.0-3.3/input5
[ 4.408438] usb 1-3.3: 4:1: cannot set freq 48000 to ep 0x2
[ 4.409487] usb 1-3.3: 4:2: cannot set freq 48000 to ep 0x2
[ 4.410604] usb 1-3.3: 2:0: cannot get min/max values for control 2 (id 2)
[ 4.410668] usbcore: registered new interface driver snd-usb-audio
[ 4.430001] usb 1-3.3: USB disconnect, device number 6
[ 5.283139] usb 1-3.3: new full-speed USB device number 7 using xhci_hcd
[ 5.455157] usb 1-3.3: New USB device found, idVendor=1038, idProduct=1294, bcdDevice= 1.11
[ 5.455158] usb 1-3.3: New USB device strings: Mfr=4, Product=5, SerialNumber=0
[ 5.455159] usb 1-3.3: Product: Arctis Pro Wireless
[ 5.455160] usb 1-3.3: Manufacturer: SteelSeries
[ 5.752626] input: SteelSeries Arctis Pro Wireless Consumer Control as /devices/pci0000:00/0000:00:14.0/usb1/1-3/1-3.3/1-3.3:1.5/0003:1038:1294.0005/input/input28
[ 5.813351] input: SteelSeries Arctis Pro Wireless as /devices/pci0000:00/0000:00:14.0/usb1/1-3/1-3.3/1-3.3:1.5/0003:1038:1294.0005/input/input29
[ 5.813669] hid-generic 0003:1038:1294.0005: input,hiddev2,hidraw3: USB HID v1.11 Device [SteelSeries Arctis Pro Wireless] on usb-0000:00:14.0-3.3/input5
I will try to use non-LTS kernel ASAP and report back if it doesn’t trigger those errors.
EDIT2: Now I’m getting the same usb errors on 5.9.6-arch1-1. Very strange.
Did you also install the headers for the kernel?
Yep, installed both, LTS and non-LTS headers.
I am no sound expert but alsa has been glitchy lately. These look like the system is trying to use an output frequency not supported by the headset.

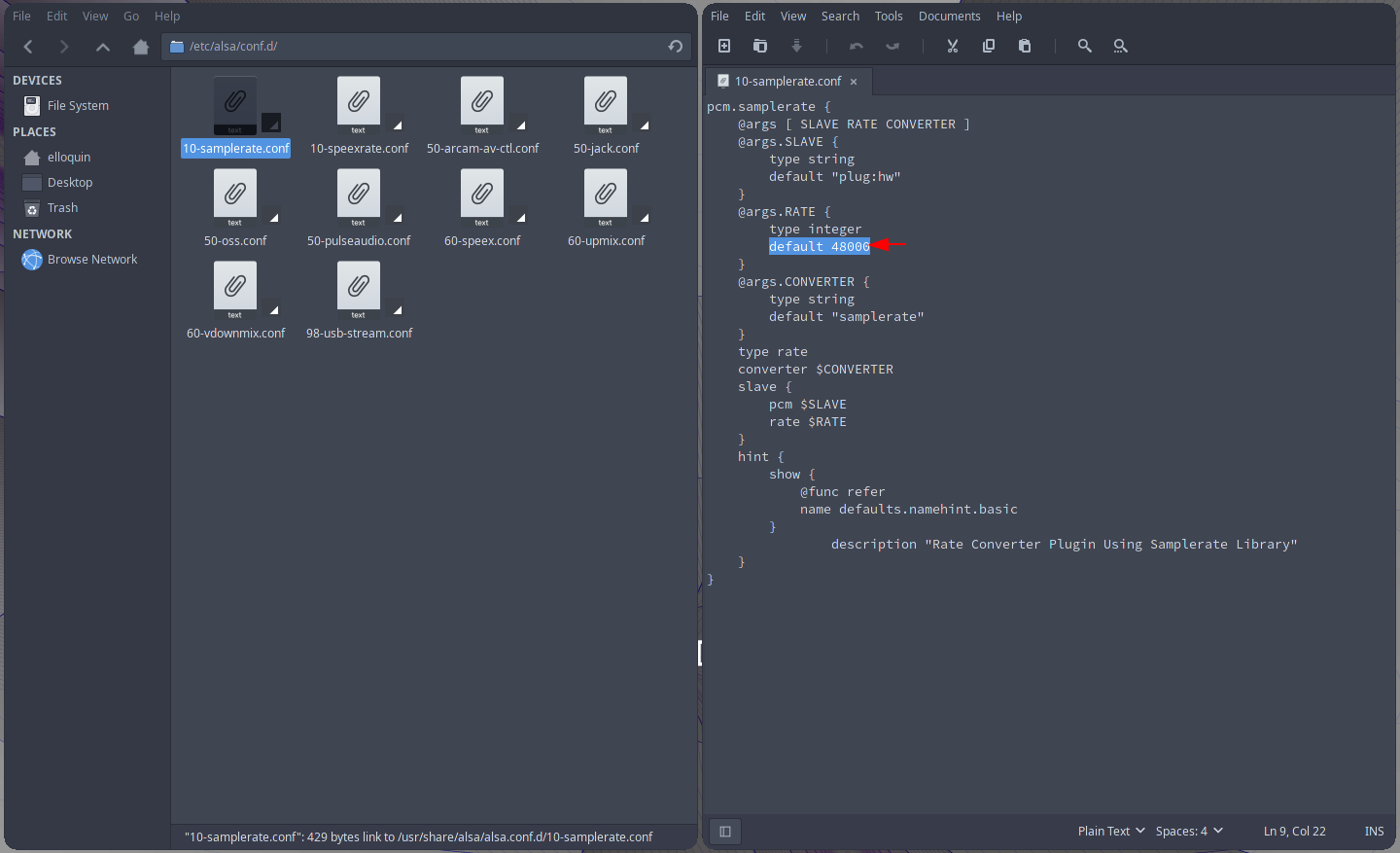

Ok so it looks like the default value is set to 48khz. I think this is just a warning as it should default to a different value.
High quality resampling
When software mixing is enabled, ALSA is forced to resample everything to the same frequency (48 kHz by default when supported). By default, it will try to use the speexrate converter to do so, and fallback to low-quality linear interpolation if it is not available[6]. Thus, if you are getting poor sound quality due to bad resampling, the problem can be solved by simply installing the alsa-plugins package.
For even higher quality resampling, you can change the default rate converter to speexrate_medium or speexrate_best. Both perform well enough that in practice it does not matter which one you choose, so using the best converter is usually not worth the extra CPU cycles it requires.
To change the default converter place the following contents in your ~/.asoundrc or /etc/asound.conf:
Still digging
edit-I need the model of steelseries headset you are using @Pipodi
edit2-Sorry you gave it in the output above.
Ok so the maximum supported frequency for that headset is 40Khz according to the manufacturer.
You could try to see if changing the following value makes those warnings/errors go away here:
As I said I am no expert so maybe wait for someone else to give advice.
eidt 3- last one i promise. Disable TLP to make sure it is not putting that USB device to sleep.
@Pipodi
I wonder if the sof-firmware needs to be installed also when you are booted into the lts kernel? I guess you could check that. Not sure if it is system wide when installed.
Edit: Did you install alsa-plugins as the message said?
You could add USB audio card to the TLP USB suspend blacklist and restarting tlp service
Yup sure could. Only recommended disabling TLP altogether to see if it helped then would have circled back to do just that. Thank you @ricklinux
I’m pretty sure I’ve disabled the USB power suspend from TLPUI, but now I’ve disable TLP service completely. I’ll try this “extreme” solution for a couple of days and then I’ll try to re-activate something. Maybe I’ll post my TLP config later, so we can debug and spot something wrong.
