White lines in new EOS KDE install

Hi,

So I have been using KDE since a week or so and I seem to have strange white lines quickly appearing and disappearing (horizontally). I did a full system upgrade. Note that I had the same problem in Pop OS KDE as well.

I first thought it was firefox, but then I switched to vivaldi and the issue remains. It is really strange. I have not tried to use gnome to see if the issue persists. Is there another solution?

$ inxi -Faz
System:
  Kernel: 5.15.47-1-lts arch: x86_64 bits: 64 compiler: gcc v: 12.1.0
    parameters: BOOT_IMAGE=/boot/vmlinuz-linux-lts
    root=UUID=cfba0edd-4eea-43a7-8da5-29c6f8874801 rw loglevel=3 nowatchdog
    nvme_load=YES
  Desktop: KDE Plasma v: 5.25.1 tk: Qt v: 5.15.5 wm: kwin_x11 vt: 1
    dm: SDDM Distro: EndeavourOS base: Arch Linux
Machine:
  Type: Desktop Mobo: ASUSTeK model: PRIME B450M-A v: Rev X.0x
    serial: <superuser required> UEFI: American Megatrends v: 3211
    date: 08/10/2021
CPU:
  Info: model: AMD Ryzen 5 2400G with Radeon Vega Graphics bits: 64
    type: MT MCP arch: Zen built: 2017-19 process: GF 14nm family: 0x17 (23)
    model-id: 0x11 (17) stepping: 0 microcode: 0x8101016
  Topology: cpus: 1x cores: 4 tpc: 2 threads: 8 smt: enabled cache:
    L1: 384 KiB desc: d-4x32 KiB; i-4x64 KiB L2: 2 MiB desc: 4x512 KiB
    L3: 4 MiB desc: 1x4 MiB
  Speed (MHz): avg: 3015 high: 3518 min/max: 1600/3600 boost: enabled
    scaling: driver: acpi-cpufreq governor: schedutil cores: 1: 2827 2: 2966
    3: 2918 4: 3188 5: 2896 6: 2870 7: 2937 8: 3518 bogomips: 57495
  Flags: avx avx2 ht lm nx pae sse sse2 sse3 sse4_1 sse4_2 sse4a ssse3 svm
  Vulnerabilities:
  Type: itlb_multihit status: Not affected
  Type: l1tf status: Not affected
  Type: mds status: Not affected
  Type: meltdown status: Not affected
  Type: spec_store_bypass
    mitigation: Speculative Store Bypass disabled via prctl and seccomp
  Type: spectre_v1
    mitigation: usercopy/swapgs barriers and __user pointer sanitization
  Type: spectre_v2
    mitigation: Retpolines, IBPB: conditional, STIBP: disabled, RSB filling
  Type: srbds status: Not affected
  Type: tsx_async_abort status: Not affected
Graphics:
  Device-1: AMD Raven Ridge [Radeon Vega Series / Radeon Mobile Series]
    vendor: ASUSTeK PRIME driver: amdgpu v: kernel arch: GCN 5 process: GF 14nm
    built: 2017-20 pcie: gen: 3 speed: 8 GT/s lanes: 16 ports:
    active: HDMI-A-1 empty: DP-1,DVI-D-1 bus-ID: 09:00.0 chip-ID: 1002:15dd
    class-ID: 0300
  Display: x11 server: X.Org v: 21.1.3 compositor: kwin_x11 driver: X:
    loaded: amdgpu unloaded: modesetting alternate: fbdev,vesa gpu: amdgpu
    display-ID: :0 screens: 1
  Screen-1: 0 s-res: 3840x2160 s-dpi: 96 s-size: 1016x571mm (40.00x22.48")
    s-diag: 1165mm (45.88")
  Monitor-1: HDMI-A-1 mapped: HDMI-A-0 model: Dell P2415Q serial: <filter>
    built: 2018 res: 3840x2160 hz: 60 dpi: 185 gamma: 1.2
    size: 527x296mm (20.75x11.65") diag: 604mm (23.8") ratio: 16:9 modes:
    max: 3840x2160 min: 720x400
  OpenGL: renderer: AMD Radeon Vega 11 Graphics (raven LLVM 13.0.1 DRM 3.42
  5.15.47-1-lts)
    v: 4.6 Mesa 22.1.2 direct render: Yes
Audio:
  Device-1: Creative Labs Sound Core3D [Sound Blaster Recon3D / Z-Series]
    driver: snd_hda_intel v: kernel pcie: gen: 1 speed: 2.5 GT/s lanes: 1
    bus-ID: 06:00.0 chip-ID: 1102:0012 class-ID: 0403
  Device-2: AMD Raven/Raven2/Fenghuang HDMI/DP Audio
    vendor: ASUSTeK PRIME B450M-A driver: snd_hda_intel v: kernel pcie: gen: 3
    speed: 8 GT/s lanes: 16 bus-ID: 09:00.1 chip-ID: 1002:15de class-ID: 0403
  Device-3: AMD Family 17h/19h HD Audio vendor: ASUSTeK PRIME B450M-A
    driver: snd_hda_intel v: kernel pcie: gen: 3 speed: 8 GT/s lanes: 16
    bus-ID: 09:00.6 chip-ID: 1022:15e3 class-ID: 0403
  Sound Server-1: ALSA v: k5.15.47-1-lts running: yes
  Sound Server-2: PulseAudio v: 16.0 running: no
  Sound Server-3: PipeWire v: 0.3.52 running: yes
Network:
  Device-1: Realtek RTL8111/8168/8411 PCI Express Gigabit Ethernet
    vendor: ASUSTeK PRIME B450M-A driver: r8169 v: kernel pcie: gen: 1
    speed: 2.5 GT/s lanes: 1 port: f000 bus-ID: 07:00.0 chip-ID: 10ec:8168
    class-ID: 0200
  IF: enp7s0 state: up speed: 100 Mbps duplex: full mac: <filter>
Drives:
  Local Storage: total: 931.51 GiB used: 172.4 GiB (18.5%)
  SMART Message: Unable to run smartctl. Root privileges required.
  ID-1: /dev/nvme0n1 maj-min: 259:0 vendor: Kingston model: SA2000M81000G
    size: 931.51 GiB block-size: physical: 512 B logical: 512 B
    speed: 31.6 Gb/s lanes: 4 type: SSD serial: <filter> rev: S5Z42105
    temp: 40.9 C scheme: GPT
Partition:
  ID-1: / raw-size: 40 GiB size: 39.08 GiB (97.69%) used: 12.11 GiB (31.0%)
    fs: ext4 dev: /dev/nvme0n1p4 maj-min: 259:4
  ID-2: /boot/efi raw-size: 512 MiB size: 511 MiB (99.80%)
    used: 312 KiB (0.1%) fs: vfat dev: /dev/nvme0n1p2 maj-min: 259:2
  ID-3: /home raw-size: 650.17 GiB size: 638.9 GiB (98.27%)
    used: 158.76 GiB (24.8%) fs: ext4 dev: /dev/nvme0n1p5 maj-min: 259:5
Swap:
  Kernel: swappiness: 60 (default) cache-pressure: 100 (default)
  ID-1: swap-1 type: partition size: 8 GiB used: 1.54 GiB (19.2%)
    priority: -2 dev: /dev/nvme0n1p3 maj-min: 259:3
Sensors:
  System Temperatures: cpu: N/A mobo: N/A gpu: amdgpu temp: 45.0 C
  Fan Speeds (RPM): N/A
Info:
  Processes: 271 Uptime: 3h 0m wakeups: 0 Memory: 5.7 GiB
  used: 4.78 GiB (84.0%) Init: systemd v: 251 default: graphical
  tool: systemctl Compilers: gcc: 12.1.0 clang: 13.0.1 Packages: pacman: 1250
  lib: 425 Shell: Bash v: 5.1.16 running-in: konsole inxi: 3.3.18
$ xrandr
Screen 0: minimum 320 x 200, current 3840 x 2160, maximum 16384 x 16384
HDMI-A-0 connected primary 3840x2160+0+0 (normal left inverted right x axis y axis) 527mm x 296mm
   3840x2160     60.00*+  60.00    50.00    59.94    30.00    25.00    24.00    29.97    23.98
   2560x1440     59.95
   1920x1200     60.00
   1920x1080     60.00    50.00    59.94    30.00    25.00    24.00    29.97    23.98
   1600x1200     60.00
   1680x1050     60.00
   1600x900      60.00
   1280x1024     75.02    60.02
   1440x900      60.00
   1280x800      60.00
   1152x864      75.00
   1280x720      60.00    50.00    59.94
   1024x768      75.03    60.00
   800x600       75.00    60.32
   720x576       50.00
   720x480       60.00    59.94
   640x480       75.00    60.00    59.94
   720x400       70.08
DVI-D-0 disconnected (normal left inverted right x axis y axis)
DisplayPort-0 disconnected (normal left inverted right x axis y axis)

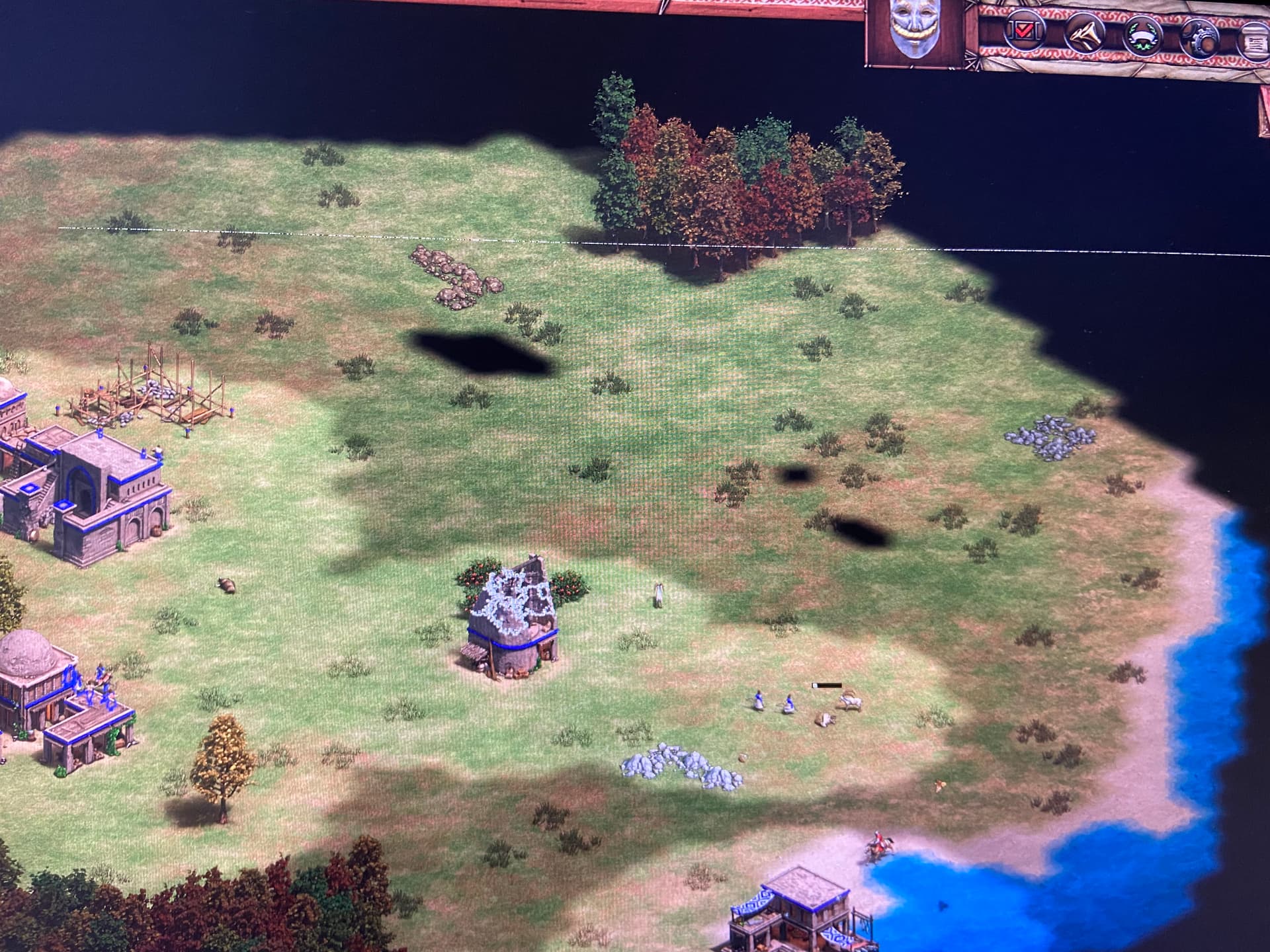

IMG-0099

a picture of what I mean (my AOE2 HD game crashed but I got to make a picture just before though).

Is this only with gaming or do you have it with streaming videos (Youtube, Netflix etc) as well?

also streaming, browsing, etc. Even now when watching an .mkv and having Firefox open. Don’t recall experiencing this in XCFE before.

Can you confirm it’s not the monitor?

yes. I changed the hdmi cable recently and have not seen this when I use it in combination with my work laptop running on windows either.

knocking some serious wood here but I think the issue is somehow solved using the advice from this thread [Solved] Strange graphic problem - #7 by ringo

sudo pacman -R linux linux-headers
grub-mkconfig -o /boot/grub/grub.cfg

Currently doing the same thing I did yesterday and no lines or distortions.

I see you aren’t using any kernel parameters in the default grub command line. I think with the 2400g you may need to experiment with some for this issue possibly.

Edit: maybe you get lucky with using just lts kernel?

thank you. The different opposed to my post of yesterday is that I seem to be using an updated kernel now, although lts:

$ uname -r
5.15.48-1-lts

Maybe that solved it. Anyways, very happy it is gone. Extremely satisfied with EOS and this forum!

2 Likes
