need help,
iam using L2TP vpn environment for my office , its working fine on pcwindows 10 and pcgame using archlinux chimera os with luckily work fine.
but on pcworkstation Endeavouros i cannot get it works.
some os and libs i thing related to l2tp version info from pcgame
Linux chimeraos 6.12.9-chos1-chimeraos-1 installation iso around feb 2025
ib32-libnm 1.50.1-1
libnm 1.50.1-2
libnma 1.10.6-3
libnma-common 1.10.6-3
libndp 1.9-1
libteam 1.32-2
networkmanager 1.50.1-2
networkmanager-l2tp 1.20.20-3
networkmanager-qt 6.10.0-1
ppp 2.5.2-1
nm-connection-editor 1.36.0-1
plasma-nm 6.2.5-1
strongswan 5.9.14-1
xl2tpd 1.3.18-2

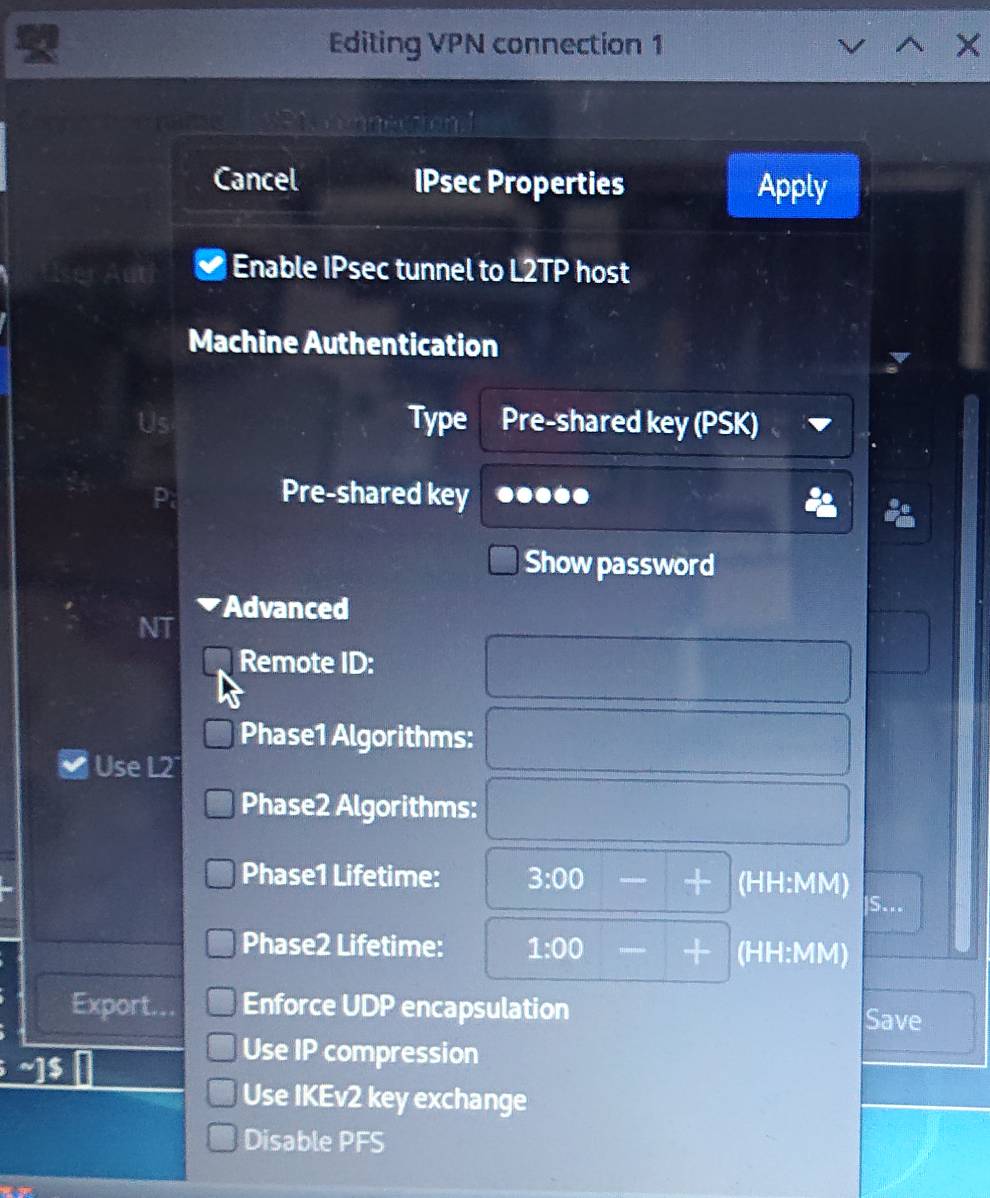

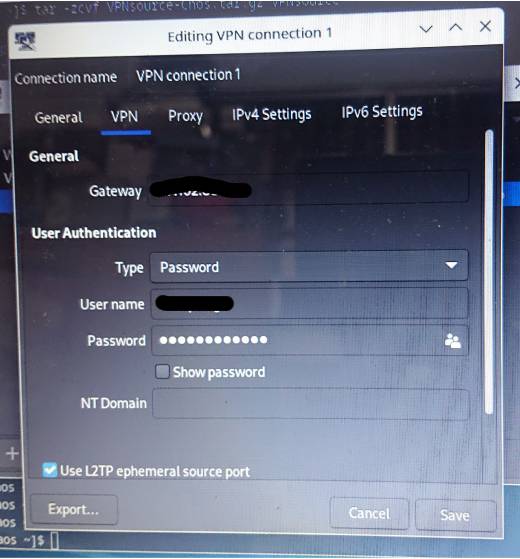

scr vpn setting
captured vpn profile
[connection]
id=VPN connection 1
uuid=c7d22961-3ba7-4a7e-b974-41a6f4206177
type=vpn
autoconnect=false
timestamp=1736839208
[vpn]
ephemeral-port=yes
gateway=11x.xxx.xxx.xxx
ipsec-enabled=yes
ipsec-psk-flags=0
machine-auth-type=psk
password-flags=0
user=xxxxxxx
user-auth-type=password
service-type=org.freedesktop.NetworkManager.l2tp
[vpn-secrets]
ipsec-psk=*****
password=******
[ipv4]
method=auto
[ipv6]
addr-gen-mode=stable-privacy
method=auto
[proxy]
captured auto generated conf from networkmanager l2tp
ipsec
config setup
conn c7d22961-3ba7-4a7e-b974-41a6f4206177
auto=add
type=transport
authby=secret
left=10x.xxx.xxx.xxx
rightprotoport=udp/l2tp
right=11x.xxx.xxx.xxx
rightid=%any
ike=aes256-sha2_256-modp2048,aes256-sha2_256-modp1536,aes256-sha2_256-modp1024,aes256-sha1-modp2048,aes256-sha1-modp1536,aes256-sha1-modp1024,aes256-sha1-ecp384,aes128-sha1-modp1024,aes128-sha1-ecp256,3des-sha1-modp2048,3des-sha1-modp1024!
esp=aes256-sha1,aes128-sha1,3des-sha1!
keyexchange=ikev1
ppp
ipparam nm-l2tp-service-c7d22961-3ba7-4a7e-b974-41a6f4206177
nodetach
usepeerdns
noipdefault
nodefaultroute
noauth
noccp
user "xxxxxx"
lcp-echo-failure 0
lcp-echo-interval 0
plugin /usr/lib/pppd/2.5.2/nm-l2tp-pppd-plugin.so
mru 1400
mtu 1400
xl2tpd
[global]
access control = yes
port = 0
[lac l2tp]
lns = 11x.xxx.xxx.xxx
pppoptfile = /var/run/nm-l2tp-c7d22961-3ba7-4a7e-b974-41a6f4206177/ppp-options
autodial = yes
tunnel rws = 8
tx bps = 100000000
rx bps = 100000000
networkmanager logs pcgame
Jun 08 04:48:30 chimeraos NetworkManager[479]: <info> [1749383310.5540] vpn[0x59b063db2900,c7d22961-3ba7-4a7e-b974-41a6f4206177,"VPN connection 1"]: starting l2tp
Jun 08 04:48:30 chimeraos NetworkManager[479]: <info> [1749383310.5542] audit: op="connection-activate" uuid="c7d22961-3ba7-4a7e-b974-41a6f4206177" name="VPN connection 1" pid=914 uid=1000 result="success"
Jun 08 04:48:30 chimeraos nm-l2tp-service[2849]: nm-l2tp-service (version 1.20.20) starting...
Jun 08 04:48:30 chimeraos nm-l2tp-service[2849]: /usr/bin/ipsec status > /dev/null 2>&1
Jun 08 04:48:30 chimeraos nm-l2tp-service[2849]: /usr/bin/ipsec start --conf /var/run/nm-l2tp-c7d22961-3ba7-4a7e-b974-41a6f4206177/ipsec.conf --debug
Jun 08 04:48:30 chimeraos NetworkManager[2867]: Starting strongSwan 5.9.14 IPsec [starter]...
Jun 08 04:48:30 chimeraos NetworkManager[2867]: Loading config setup
Jun 08 04:48:30 chimeraos NetworkManager[2867]: Loading conn 'c7d22961-3ba7-4a7e-b974-41a6f4206177'
Jun 08 04:48:30 chimeraos ipsec_starter[2867]: Starting strongSwan 5.9.14 IPsec [starter]...
Jun 08 04:48:30 chimeraos ipsec_starter[2867]: Loading config setup
Jun 08 04:48:30 chimeraos ipsec_starter[2867]: Loading conn 'c7d22961-3ba7-4a7e-b974-41a6f4206177'
Jun 08 04:48:30 chimeraos ipsec_starter[2870]: Attempting to start charon...
Jun 08 04:48:30 chimeraos charon[2872]: 00[DMN] Starting IKE charon daemon (strongSwan 5.9.14, Linux 6.12.9-chos1-chimeraos-1, x86_64)
Jun 08 04:48:30 chimeraos charon[2872]: 00[CFG] PKCS11 module '<name>' lacks library path
Jun 08 04:48:30 chimeraos charon[2872]: 00[LIB] providers loaded by OpenSSL: legacy default
Jun 08 04:48:30 chimeraos charon[2872]: 00[CFG] install DNS servers in '/etc/resolv.conf'
Jun 08 04:48:30 chimeraos charon[2872]: 00[CFG] attr-sql plugin: database URI not set
Jun 08 04:48:30 chimeraos charon[2872]: 00[NET] using forecast interface wlp3s0
Jun 08 04:48:30 chimeraos charon[2872]: 00[CFG] joining forecast multicast groups: 224.0.0.1,224.0.0.22,224.0.0.251,224.0.0.252,239.255.255.250
Jun 08 04:48:30 chimeraos charon[2872]: 00[CFG] loading ca certificates from '/etc/ipsec.d/cacerts'
Jun 08 04:48:30 chimeraos charon[2872]: 00[CFG] loading aa certificates from '/etc/ipsec.d/aacerts'
Jun 08 04:48:30 chimeraos charon[2872]: 00[CFG] loading ocsp signer certificates from '/etc/ipsec.d/ocspcerts'
Jun 08 04:48:30 chimeraos charon[2872]: 00[CFG] loading attribute certificates from '/etc/ipsec.d/acerts'
Jun 08 04:48:30 chimeraos charon[2872]: 00[CFG] loading crls from '/etc/ipsec.d/crls'
Jun 08 04:48:30 chimeraos charon[2872]: 00[CFG] loading secrets from '/etc/ipsec.secrets'
Jun 08 04:48:30 chimeraos charon[2872]: 00[CFG] loading secrets from '/etc/ipsec.d/ipsec.nm-l2tp.secrets'
Jun 08 04:48:30 chimeraos charon[2872]: 00[CFG] loaded IKE secret for %any
Jun 08 04:48:30 chimeraos charon[2872]: 00[CFG] sql plugin: database URI not set
Jun 08 04:48:30 chimeraos charon[2872]: 00[CFG] opening triplet file /etc/ipsec.d/triplets.dat failed: No such file or directory
Jun 08 04:48:30 chimeraos charon[2872]: 00[CFG] loaded 0 RADIUS server configurations
Jun 08 04:48:30 chimeraos charon[2872]: 00[CFG] HA config misses local/remote address
Jun 08 04:48:30 chimeraos charon[2872]: 00[CFG] no script for ext-auth script defined, disabled
Jun 08 04:48:30 chimeraos charon[2872]: 00[LIB] loaded plugins: charon ldap pkcs11 aesni aes des rc2 sha2 sha3 sha1 md5 mgf1 random nonce x509 revocation constraints pubkey pkcs1 pkcs7 pkcs12 pgp dnskey sshkey pem openssl pkcs8 fips-prf gmp curve25519 agent chapoly xcbc cmac hmac kdf gcm ntru drbg newhope bliss curl mysql sqlite attr kernel-netlink resolve socket-default bypass-lan connmark forecast farp stroke vici updown eap-identity eap-sim eap-aka eap-aka-3gpp2 eap-simaka-pseudonym eap-simaka-reauth eap-md5 eap-gtc eap-mschapv2 eap-dynamic eap-radius eap-tls eap-ttls eap-peap xauth-generic xauth-eap xauth-pam xauth-noauth dhcp radattr unity counters
Jun 08 04:48:30 chimeraos charon[2872]: 00[LIB] dropped capabilities, running as uid 0, gid 0
Jun 08 04:48:30 chimeraos charon[2872]: 00[JOB] spawning 16 worker threads
Jun 08 04:48:30 chimeraos charon[2872]: 05[IKE] installed bypass policy for xxx.xxx.xxx.0/24
Jun 08 04:48:30 chimeraos charon[2872]: 05[IKE] installed bypass policy for fd18:c0db:1796::/64
Jun 08 04:48:30 chimeraos charon[2872]: 05[IKE] installed bypass policy for fe80::/64
Jun 08 04:48:30 chimeraos ipsec_starter[2870]: charon (2872) started after 40 ms
Jun 08 04:48:30 chimeraos charon[2872]: 12[CFG] received stroke: add connection 'c7d22961-3ba7-4a7e-b974-41a6f4206177'
Jun 08 04:48:30 chimeraos charon[2872]: 12[CFG] added configuration 'c7d22961-3ba7-4a7e-b974-41a6f4206177'
Jun 08 04:48:31 chimeraos charon[2872]: 14[CFG] rereading secrets
Jun 08 04:48:31 chimeraos charon[2872]: 14[CFG] loading secrets from '/etc/ipsec.secrets'
Jun 08 04:48:31 chimeraos charon[2872]: 14[CFG] loading secrets from '/etc/ipsec.d/ipsec.nm-l2tp.secrets'
Jun 08 04:48:31 chimeraos charon[2872]: 14[CFG] loaded IKE secret for %any
Jun 08 04:48:31 chimeraos nm-l2tp-service[2849]: /usr/bin/ipsec up c7d22961-3ba7-4a7e-b974-41a6f4206177
Jun 08 04:48:31 chimeraos charon[2872]: 06[CFG] received stroke: initiate 'c7d22961-3ba7-4a7e-b974-41a6f4206177'
Jun 08 04:48:31 chimeraos charon[2872]: 08[IKE] initiating Main Mode IKE_SA c7d22961-3ba7-4a7e-b974-41a6f4206177[1] to 11x.xxx.xxx.xxx
Jun 08 04:48:31 chimeraos charon[2872]: 08[IKE] initiating Main Mode IKE_SA c7d22961-3ba7-4a7e-b974-41a6f4206177[1] to 11x.xxx.xxx.xxx
Jun 08 04:48:31 chimeraos charon[2872]: 08[ENC] generating ID_PROT request 0 [ SA V V V V V ]
Jun 08 04:48:31 chimeraos charon[2872]: 08[NET] sending packet: from 10x.xxx.xxx.xxx[500] to 11x.xxx.xxx.xxx[500] (532 bytes)
Jun 08 04:48:31 chimeraos charon[2872]: 05[NET] received packet: from 11x.xxx.xxx.xxx[500] to 10x.xxx.xxx.xxx[500] (160 bytes)
Jun 08 04:48:31 chimeraos charon[2872]: 05[ENC] parsed ID_PROT response 0 [ SA V V V V ]
Jun 08 04:48:31 chimeraos charon[2872]: 05[IKE] received NAT-T (RFC 3947) vendor ID
Jun 08 04:48:31 chimeraos charon[2872]: 05[IKE] received XAuth vendor ID
Jun 08 04:48:31 chimeraos charon[2872]: 05[IKE] received DPD vendor ID
Jun 08 04:48:31 chimeraos charon[2872]: 05[IKE] received FRAGMENTATION vendor ID
Jun 08 04:48:31 chimeraos charon[2872]: 05[CFG] selected proposal: IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024
Jun 08 04:48:31 chimeraos charon[2872]: 05[ENC] generating ID_PROT request 0 [ KE No NAT-D NAT-D ]
Jun 08 04:48:31 chimeraos charon[2872]: 05[NET] sending packet: from 10x.xxx.xxx.xxx[500] to 11x.xxx.xxx.xxx[500] (244 bytes)
Jun 08 04:48:32 chimeraos charon[2872]: 09[NET] received packet: from 11x.xxx.xxx.xxx[500] to 10x.xxx.xxx.xxx[500] (236 bytes)
Jun 08 04:48:32 chimeraos charon[2872]: 09[ENC] parsed ID_PROT response 0 [ KE No NAT-D NAT-D ]
Jun 08 04:48:32 chimeraos charon[2872]: 09[IKE] local host is behind NAT, sending keep alives
Jun 08 04:48:32 chimeraos charon[2872]: 09[ENC] generating ID_PROT request 0 [ ID HASH ]
Jun 08 04:48:32 chimeraos charon[2872]: 09[NET] sending packet: from 10x.xxx.xxx.xxx[4500] to 11x.xxx.xxx.xxx[4500] (76 bytes)
Jun 08 04:48:32 chimeraos charon[2872]: 03[NET] received packet: from 11x.xxx.xxx.xxx[4500] to 10x.xxx.xxx.xxx[4500] (76 bytes)
Jun 08 04:48:32 chimeraos charon[2872]: 03[ENC] parsed ID_PROT response 0 [ ID HASH ]
Jun 08 04:48:32 chimeraos charon[2872]: 03[IKE] IKE_SA c7d22961-3ba7-4a7e-b974-41a6f4206177[1] established between 10x.xxx.xxx.xxx[10x.xxx.xxx.xxx]...11x.xxx.xxx.xxx[11x.xxx.xxx.xxx]
Jun 08 04:48:32 chimeraos charon[2872]: 03[IKE] IKE_SA c7d22961-3ba7-4a7e-b974-41a6f4206177[1] established between 10x.xxx.xxx.xxx[10x.xxx.xxx.xxx]...11x.xxx.xxx.xxx[11x.xxx.xxx.xxx]
Jun 08 04:48:32 chimeraos charon[2872]: 03[IKE] scheduling reauthentication in 9956s
Jun 08 04:48:32 chimeraos charon[2872]: 03[IKE] maximum IKE_SA lifetime 10496s
Jun 08 04:48:32 chimeraos charon[2872]: 03[ENC] generating QUICK_MODE request 3624994336 [ HASH SA No ID ID NAT-OA NAT-OA ]
Jun 08 04:48:32 chimeraos charon[2872]: 03[NET] sending packet: from 10x.xxx.xxx.xxx[4500] to 11x.xxx.xxx.xxx[4500] (252 bytes)
Jun 08 04:48:32 chimeraos charon[2872]: 10[NET] received packet: from 11x.xxx.xxx.xxx[4500] to 10x.xxx.xxx.xxx[4500] (92 bytes)
Jun 08 04:48:32 chimeraos charon[2872]: 10[ENC] parsed INFORMATIONAL_V1 request 2942535343 [ HASH N(INITIAL_CONTACT) ]
Jun 08 04:48:32 chimeraos charon[2872]: 13[NET] received packet: from 11x.xxx.xxx.xxx[4500] to 10x.xxx.xxx.xxx[4500] (188 bytes)
Jun 08 04:48:32 chimeraos charon[2872]: 13[ENC] parsed QUICK_MODE response 3624994336 [ HASH SA No ID ID NAT-OA NAT-OA ]
Jun 08 04:48:32 chimeraos charon[2872]: 13[CFG] selected proposal: ESP:AES_CBC_256/HMAC_SHA1_96/NO_EXT_SEQ
Jun 08 04:48:32 chimeraos charon[2872]: 13[IKE] CHILD_SA c7d22961-3ba7-4a7e-b974-41a6f4206177{1} established with SPIs c258d3ce_i 0b16a9fb_o and TS 10x.xxx.xxx.xxx/32 === 11x.xxx.xxx.xxx/32[udp/l2f]
Jun 08 04:48:32 chimeraos charon[2872]: 13[IKE] CHILD_SA c7d22961-3ba7-4a7e-b974-41a6f4206177{1} established with SPIs c258d3ce_i 0b16a9fb_o and TS 10x.xxx.xxx.xxx/32 === 11x.xxx.xxx.xxx/32[udp/l2f]
Jun 08 04:48:32 chimeraos charon[2872]: 13[ENC] generating QUICK_MODE request 3624994336 [ HASH ]
Jun 08 04:48:32 chimeraos charon[2872]: 13[NET] sending packet: from 10x.xxx.xxx.xxx[4500] to 11x.xxx.xxx.xxx[4500] (60 bytes)
Jun 08 04:48:32 chimeraos NetworkManager[2917]: initiating Main Mode IKE_SA c7d22961-3ba7-4a7e-b974-41a6f4206177[1] to 11x.xxx.xxx.xxx
Jun 08 04:48:32 chimeraos NetworkManager[2917]: generating ID_PROT request 0 [ SA V V V V V ]
Jun 08 04:48:32 chimeraos NetworkManager[2917]: sending packet: from 10x.xxx.xxx.xxx[500] to 11x.xxx.xxx.xxx[500] (532 bytes)
Jun 08 04:48:32 chimeraos NetworkManager[2917]: received packet: from 11x.xxx.xxx.xxx[500] to 10x.xxx.xxx.xxx[500] (160 bytes)
Jun 08 04:48:32 chimeraos NetworkManager[2917]: parsed ID_PROT response 0 [ SA V V V V ]
Jun 08 04:48:32 chimeraos NetworkManager[2917]: received NAT-T (RFC 3947) vendor ID
Jun 08 04:48:32 chimeraos NetworkManager[2917]: received XAuth vendor ID
Jun 08 04:48:32 chimeraos NetworkManager[2917]: received DPD vendor ID
Jun 08 04:48:32 chimeraos NetworkManager[2917]: received FRAGMENTATION vendor ID
Jun 08 04:48:32 chimeraos NetworkManager[2917]: selected proposal: IKE:AES_CBC_128/HMAC_SHA1_96/PRF_HMAC_SHA1/MODP_1024
Jun 08 04:48:32 chimeraos NetworkManager[2917]: generating ID_PROT request 0 [ KE No NAT-D NAT-D ]
Jun 08 04:48:32 chimeraos NetworkManager[2917]: sending packet: from 10x.xxx.xxx.xxx[500] to 11x.xxx.xxx.xxx[500] (244 bytes)
Jun 08 04:48:32 chimeraos NetworkManager[2917]: received packet: from 11x.xxx.xxx.xxx[500] to 10x.xxx.xxx.xxx[500] (236 bytes)
Jun 08 04:48:32 chimeraos NetworkManager[2917]: parsed ID_PROT response 0 [ KE No NAT-D NAT-D ]
Jun 08 04:48:32 chimeraos NetworkManager[2917]: local host is behind NAT, sending keep alives
Jun 08 04:48:32 chimeraos NetworkManager[2917]: generating ID_PROT request 0 [ ID HASH ]
Jun 08 04:48:32 chimeraos NetworkManager[2917]: sending packet: from 10x.xxx.xxx.xxx[4500] to 11x.xxx.xxx.xxx[4500] (76 bytes)
Jun 08 04:48:32 chimeraos NetworkManager[2917]: received packet: from 11x.xxx.xxx.xxx[4500] to 10x.xxx.xxx.xxx[4500] (76 bytes)
Jun 08 04:48:32 chimeraos NetworkManager[2917]: parsed ID_PROT response 0 [ ID HASH ]
Jun 08 04:48:32 chimeraos NetworkManager[2917]: IKE_SA c7d22961-3ba7-4a7e-b974-41a6f4206177[1] established between 10x.xxx.xxx.xxx[10x.xxx.xxx.xxx]...11x.xxx.xxx.xxx[11x.xxx.xxx.xxx]
Jun 08 04:48:32 chimeraos NetworkManager[2917]: scheduling reauthentication in 9956s
Jun 08 04:48:32 chimeraos NetworkManager[2917]: maximum IKE_SA lifetime 10496s
Jun 08 04:48:32 chimeraos NetworkManager[2917]: generating QUICK_MODE request 3624994336 [ HASH SA No ID ID NAT-OA NAT-OA ]
Jun 08 04:48:32 chimeraos NetworkManager[2917]: sending packet: from 10x.xxx.xxx.xxx[4500] to 11x.xxx.xxx.xxx[4500] (252 bytes)
Jun 08 04:48:32 chimeraos NetworkManager[2917]: received packet: from 11x.xxx.xxx.xxx[4500] to 10x.xxx.xxx.xxx[4500] (92 bytes)
Jun 08 04:48:32 chimeraos NetworkManager[2917]: parsed INFORMATIONAL_V1 request 2942535343 [ HASH N(INITIAL_CONTACT) ]
Jun 08 04:48:32 chimeraos NetworkManager[2917]: received packet: from 11x.xxx.xxx.xxx[4500] to 10x.xxx.xxx.xxx[4500] (188 bytes)
Jun 08 04:48:32 chimeraos NetworkManager[2917]: parsed QUICK_MODE response 3624994336 [ HASH SA No ID ID NAT-OA NAT-OA ]
Jun 08 04:48:32 chimeraos NetworkManager[2917]: selected proposal: ESP:AES_CBC_256/HMAC_SHA1_96/NO_EXT_SEQ
Jun 08 04:48:32 chimeraos NetworkManager[2917]: CHILD_SA c7d22961-3ba7-4a7e-b974-41a6f4206177{1} established with SPIs c258d3ce_i 0b16a9fb_o and TS 10x.xxx.xxx.xxx/32 === 11x.xxx.xxx.xxx/32[udp/l2f]
Jun 08 04:48:32 chimeraos NetworkManager[2917]: connection 'c7d22961-3ba7-4a7e-b974-41a6f4206177' established successfully
Jun 08 04:48:32 chimeraos nm-l2tp-service[2849]: strongSwan IPsec connection is up.
Jun 08 04:48:32 chimeraos nm-l2tp-service[2849]: /usr/bin/xl2tpd -D -c /var/run/nm-l2tp-c7d22961-3ba7-4a7e-b974-41a6f4206177/xl2tpd.conf -C /var/run/nm-l2tp-c7d22961-3ba7-4a7e-b974-41a6f4206177/xl2tpd-control -p /var/run/nm-l2tp-c7d22961-3ba7-4a7e-b974-41a6f4206177/xl2tpd.pid
Jun 08 04:48:32 chimeraos nm-l2tp-service[2849]: xl2tpd started with pid 2923
Jun 08 04:48:32 chimeraos NetworkManager[2923]: xl2tpd[2923]: Not looking for kernel SAref support.
Jun 08 04:48:32 chimeraos NetworkManager[2923]: xl2tpd[2923]: Using l2tp kernel support.
Jun 08 04:48:32 chimeraos NetworkManager[2923]: xl2tpd[2923]: xl2tpd version xl2tpd-1.3.18 started on chimeraos PID:2923
Jun 08 04:48:32 chimeraos NetworkManager[2923]: xl2tpd[2923]: Written by Mark Spencer, Copyright (C) 1998, Adtran, Inc.
Jun 08 04:48:32 chimeraos NetworkManager[2923]: xl2tpd[2923]: Forked by Scott Balmos and David Stipp, (C) 2001
Jun 08 04:48:32 chimeraos NetworkManager[2923]: xl2tpd[2923]: Inherited by Jeff McAdams, (C) 2002
Jun 08 04:48:32 chimeraos NetworkManager[2923]: xl2tpd[2923]: Forked again by Xelerance (www.xelerance.com) (C) 2006-2016
Jun 08 04:48:32 chimeraos NetworkManager[2923]: xl2tpd[2923]: Listening on IP address 0.0.0.0, port 43152
Jun 08 04:48:32 chimeraos NetworkManager[2923]: xl2tpd[2923]: Connecting to host 11x.xxx.xxx.xxx, port 1701
Jun 08 04:48:32 chimeraos NetworkManager[2923]: xl2tpd[2923]: Connection established to 11x.xxx.xxx.xxx, 1701. Local: 46891, Remote: 7482 (ref=0/0).
Jun 08 04:48:32 chimeraos NetworkManager[2923]: xl2tpd[2923]: Calling on tunnel 46891
Jun 08 04:48:32 chimeraos NetworkManager[2923]: xl2tpd[2923]: Call established with 11x.xxx.xxx.xxx, Local: 62003, Remote: 1, Serial: 1 (ref=0/0)
Jun 08 04:48:32 chimeraos NetworkManager[2923]: xl2tpd[2923]: start_pppd: I'm running:
Jun 08 04:48:32 chimeraos NetworkManager[2923]: xl2tpd[2923]: "/usr/sbin/pppd"
Jun 08 04:48:32 chimeraos NetworkManager[2923]: xl2tpd[2923]: "plugin"
Jun 08 04:48:32 chimeraos NetworkManager[2923]: xl2tpd[2923]: "pppol2tp.so"
Jun 08 04:48:32 chimeraos NetworkManager[2923]: xl2tpd[2923]: "pppol2tp"
Jun 08 04:48:32 chimeraos NetworkManager[2923]: xl2tpd[2923]: "7"
Jun 08 04:48:32 chimeraos NetworkManager[2923]: xl2tpd[2923]: "passive"
Jun 08 04:48:32 chimeraos NetworkManager[2923]: xl2tpd[2923]: "nodetach"
Jun 08 04:48:32 chimeraos NetworkManager[2923]: xl2tpd[2923]: ":"
Jun 08 04:48:32 chimeraos NetworkManager[2923]: xl2tpd[2923]: "file"
Jun 08 04:48:32 chimeraos NetworkManager[2923]: xl2tpd[2923]: "/var/run/nm-l2tp-c7d22961-3ba7-4a7e-b974-41a6f4206177/ppp-options"
VPN on pcworkstation
captured vpn profile
[connection]
id=VPN connection 1
uuid=2c5e5a12-0a96-4bab-8492-819d118826b7
type=vpn
autoconnect=false
[vpn]
ephemeral-port=yes
gateway=17x.xxx.xxx.xxx
ipsec-enabled=yes
ipsec-psk-flags=0
machine-auth-type=psk
mru=1400
mtu=1400
password-flags=0
user=xxxxxxx
user-auth-type=password
service-type=org.freedesktop.NetworkManager.l2tp
[vpn-secrets]
ipsec-psk=*******
password=*******
[ipv4]
method=auto
[ipv6]
addr-gen-mode=stable-privacy
method=auto
[proxy]
captured auto generated conf from networkmanager l2tp
ipsec
config setup
conn 2c5e5a12-0a96-4bab-8492-819d118826b7
auto=add
type=transport
authby=secret
left=19x.xxx.xxx.xxx
rightprotoport=udp/l2tp
right=17x.xxx.xxx.xxx
rightid=%any
ike=aes256-sha2_256-modp2048,aes256-sha2_256-modp1536,aes256-sha2_256-modp1024,aes256-sha1-modp2048,aes256-sha1-modp1536,aes256-sha1-modp1024,aes256-sha1-ecp384,aes128-sha1-modp1024,aes128-sha1-ecp256,3des-sha1-modp2048,3des-sha1-modp1024!
esp=aes256-sha1,aes128-sha1,3des-sha1!
keyexchange=ikev1
ppp
ipparam nm-l2tp-service-2c5e5a12-0a96-4bab-8492-819d118826b7
nodetach
usepeerdns
noipdefault
nodefaultroute
noauth
noccp
user "xxxxx"
lcp-echo-failure 0
lcp-echo-interval 0
plugin /usr/lib/pppd/2.5.2/nm-l2tp-pppd-plugin.so
mru 1400
mtu 1400
xl2tpd
[global]
access control = yes
port = 0
[lac l2tp]
lns = 17x.xxx.xxx.xxx
pppoptfile = /var/run/nm-l2tp-2c5e5a12-0a96-4bab-8492-819d118826b7/ppp-options
autodial = yes
tunnel rws = 8
tx bps = 100000000
rx bps = 100000000
Networkmanager log pcworkstation
Jun 08 20:07:46 rev01-ms7c56 NetworkManager[569]: <info> [1749384466.0541] agent-manager: agent[6875de17a041c93c,:1.139/nmcli-connect/1000]: agent registered
Jun 08 20:07:46 rev01-ms7c56 NetworkManager[569]: <info> [1749384466.0575] vpn[0x55d935691340,2c5e5a12-0a96-4bab-8492-819d118826b7,"VPN connection 1"]: starting l2tp
Jun 08 20:07:46 rev01-ms7c56 NetworkManager[569]: <info> [1749384466.0576] audit: op="connection-activate" uuid="2c5e5a12-0a96-4bab-8492-819d118826b7" name="VPN connection 1" pid=4455 uid=1000 result="success"
Jun 08 20:07:46 rev01-ms7c56 nm-l2tp-service[4464]: nm-l2tp-service (version 1.20.20) starting...
Jun 08 20:07:46 rev01-ms7c56 nm-l2tp-service[4464]: /usr/bin/ipsec status > /dev/null 2>&1
Jun 08 20:07:46 rev01-ms7c56 nm-l2tp-service[4464]: /usr/bin/ipsec start --conf /var/run/nm-l2tp-2c5e5a12-0a96-4bab-8492-819d118826b7/ipsec.conf --debug
Jun 08 20:07:46 rev01-ms7c56 NetworkManager[4478]: Starting strongSwan 5.9.14 IPsec [starter]...
Jun 08 20:07:46 rev01-ms7c56 NetworkManager[4478]: Loading config setup
Jun 08 20:07:46 rev01-ms7c56 NetworkManager[4478]: Loading conn '2c5e5a12-0a96-4bab-8492-819d118826b7'
Jun 08 20:07:46 rev01-ms7c56 ipsec_starter[4478]: Starting strongSwan 5.9.14 IPsec [starter]...
Jun 08 20:07:46 rev01-ms7c56 ipsec_starter[4478]: Loading config setup
Jun 08 20:07:46 rev01-ms7c56 ipsec_starter[4478]: Loading conn '2c5e5a12-0a96-4bab-8492-819d118826b7'
Jun 08 20:07:46 rev01-ms7c56 ipsec_starter[4481]: Attempting to start charon...
Jun 08 20:07:46 rev01-ms7c56 charon[4482]: 00[DMN] Starting IKE charon daemon (strongSwan 5.9.14, Linux 6.14.10-arch1-1, x86_64)
Jun 08 20:07:46 rev01-ms7c56 charon[4482]: 00[CFG] PKCS11 module '<name>' lacks library path
Jun 08 20:07:46 rev01-ms7c56 charon[4482]: 00[LIB] providers loaded by OpenSSL: legacy default
Jun 08 20:07:46 rev01-ms7c56 charon[4482]: 00[CFG] using '/sbin/resolvconf' to install DNS servers
Jun 08 20:07:46 rev01-ms7c56 charon[4482]: 00[CFG] attr-sql plugin: database URI not set
Jun 08 20:07:46 rev01-ms7c56 charon[4482]: 00[NET] using forecast interface enp42s0
Jun 08 20:07:46 rev01-ms7c56 charon[4482]: 00[CFG] joining forecast multicast groups: 224.0.0.1,224.0.0.22,224.0.0.251,224.0.0.252,239.255.255.250
Jun 08 20:07:46 rev01-ms7c56 charon[4482]: 00[CFG] loading ca certificates from '/etc/ipsec.d/cacerts'
Jun 08 20:07:46 rev01-ms7c56 charon[4482]: 00[CFG] loading aa certificates from '/etc/ipsec.d/aacerts'
Jun 08 20:07:46 rev01-ms7c56 charon[4482]: 00[CFG] loading ocsp signer certificates from '/etc/ipsec.d/ocspcerts'
Jun 08 20:07:46 rev01-ms7c56 charon[4482]: 00[CFG] loading attribute certificates from '/etc/ipsec.d/acerts'
Jun 08 20:07:46 rev01-ms7c56 charon[4482]: 00[CFG] loading crls from '/etc/ipsec.d/crls'
Jun 08 20:07:46 rev01-ms7c56 charon[4482]: 00[CFG] loading secrets from '/etc/ipsec.secrets'
Jun 08 20:07:46 rev01-ms7c56 charon[4482]: 00[CFG] loading secrets from '/etc/ipsec.d/ipsec.nm-l2tp.secrets'
Jun 08 20:07:46 rev01-ms7c56 charon[4482]: 00[CFG] loaded IKE secret for %any
Jun 08 20:07:46 rev01-ms7c56 charon[4482]: 00[CFG] sql plugin: database URI not set
Jun 08 20:07:46 rev01-ms7c56 charon[4482]: 00[CFG] opening triplet file /etc/ipsec.d/triplets.dat failed: No such file or directory
Jun 08 20:07:46 rev01-ms7c56 charon[4482]: 00[CFG] loaded 0 RADIUS server configurations
Jun 08 20:07:46 rev01-ms7c56 charon[4482]: 00[CFG] HA config misses local/remote address
Jun 08 20:07:46 rev01-ms7c56 charon[4482]: 00[CFG] no script for ext-auth script defined, disabled
Jun 08 20:07:46 rev01-ms7c56 charon[4482]: 00[LIB] loaded plugins: charon ldap pkcs11 aesni aes des rc2 sha2 sha3 sha1 md5 mgf1 random nonce x509 revocation constraints pubkey pkcs1 pkcs7 pkcs12 pgp dnskey sshkey pem openssl pkcs8 fips-prf gmp curve25519 agent chapoly xcbc cmac hmac kdf gcm ntru drbg newhope bliss curl mysql sqlite attr kernel-netlink resolve socket-default bypass-lan connmark forecast farp stroke vici updown eap-identity eap-sim eap-aka eap-aka-3gpp2 eap-simaka-pseudonym eap-simaka-reauth eap-md5 eap-gtc eap-mschapv2 eap-dynamic eap-radius eap-tls eap-ttls eap-peap xauth-generic xauth-eap xauth-pam xauth-noauth dhcp radattr unity counters
Jun 08 20:07:46 rev01-ms7c56 charon[4482]: 00[LIB] dropped capabilities, running as uid 0, gid 0
Jun 08 20:07:46 rev01-ms7c56 charon[4482]: 00[JOB] spawning 16 worker threads
Jun 08 20:07:46 rev01-ms7c56 charon[4482]: 06[IKE] installed bypass policy for 19x.xxx.xxx.xxx/24
Jun 08 20:07:46 rev01-ms7c56 charon[4482]: 06[IKE] installed bypass policy for fd60:508f:7da5::/60
Jun 08 20:07:46 rev01-ms7c56 charon[4482]: 06[IKE] installed bypass policy for fe80::/64
Jun 08 20:07:46 rev01-ms7c56 ipsec_starter[4481]: charon (4482) started after 40 ms
Jun 08 20:07:46 rev01-ms7c56 charon[4482]: 13[CFG] received stroke: add connection '2c5e5a12-0a96-4bab-8492-819d118826b7'
Jun 08 20:07:46 rev01-ms7c56 charon[4482]: 13[CFG] added configuration '2c5e5a12-0a96-4bab-8492-819d118826b7'
Jun 08 20:07:47 rev01-ms7c56 charon[4482]: 07[CFG] rereading secrets
Jun 08 20:07:47 rev01-ms7c56 charon[4482]: 07[CFG] loading secrets from '/etc/ipsec.secrets'
Jun 08 20:07:47 rev01-ms7c56 charon[4482]: 07[CFG] loading secrets from '/etc/ipsec.d/ipsec.nm-l2tp.secrets'
Jun 08 20:07:47 rev01-ms7c56 charon[4482]: 07[CFG] loaded IKE secret for %any
Jun 08 20:07:47 rev01-ms7c56 nm-l2tp-service[4464]: /usr/bin/ipsec up 2c5e5a12-0a96-4bab-8492-819d118826b7
Jun 08 20:07:47 rev01-ms7c56 charon[4482]: 09[CFG] received stroke: initiate '2c5e5a12-0a96-4bab-8492-819d118826b7'
Jun 08 20:07:47 rev01-ms7c56 charon[4482]: 04[IKE] initiating Main Mode IKE_SA 2c5e5a12-0a96-4bab-8492-819d118826b7[1] to 17x.xxx.xxx.xxx
Jun 08 20:07:47 rev01-ms7c56 charon[4482]: 04[IKE] initiating Main Mode IKE_SA 2c5e5a12-0a96-4bab-8492-819d118826b7[1] to 17x.xxx.xxx.xxx
Jun 08 20:07:47 rev01-ms7c56 charon[4482]: 04[ENC] generating ID_PROT request 0 [ SA V V V V V ]
Jun 08 20:07:47 rev01-ms7c56 charon[4482]: 04[NET] sending packet: from 19x.xxx.xxx.xxx[500] to 17x.xxx.xxx.xxx[500] (532 bytes)
Jun 08 20:07:51 rev01-ms7c56 charon[4482]: 06[IKE] sending retransmit 1 of request message ID 0, seq 1
Jun 08 20:07:51 rev01-ms7c56 charon[4482]: 06[NET] sending packet: from 19x.xxx.xxx.xxx[500] to 17x.xxx.xxx.xxx[500] (532 bytes)
Jun 08 20:07:56 rev01-ms7c56 NetworkManager[569]: <warn> [1749384476.0662] vpn[0x55d935691340,2c5e5a12-0a96-4bab-8492-819d118826b7,"VPN connection 1"]: failed to connect: 'Timeout was reached'
Jun 08 20:07:58 rev01-ms7c56 charon[4482]: 12[IKE] sending retransmit 2 of request message ID 0, seq 1
Jun 08 20:07:58 rev01-ms7c56 charon[4482]: 12[NET] sending packet: from 19x.xxx.xxx.xxx[500] to 17x.xxx.xxx.xxx[500] (532 bytes)
Jun 08 20:08:03 rev01-ms7c56 NetworkManager[4586]: Stopping strongSwan IPsec...
Jun 08 20:08:03 rev01-ms7c56 charon[4482]: 00[DMN] SIGINT received, shutting down
Jun 08 20:08:03 rev01-ms7c56 charon[4482]: 00[IKE] destroying IKE_SA in state CONNECTING without notification
did also try to get all the libs to became same version as the pcgame, and its not success.
i have create that working vpn profile on pcgame at first time after installing the os its around feb ,then now i try to create the new vpn profile with same configuration and it failed to connect , this is so wierd how could this happen, the existing vpn profile still able to connect without any issue after the profile2 was created and tested failed.
i thing of maybe there is another configuration out there ?
