SSD/HDD, encryption LUKS+LUKS2+root?

General system Newbie
1

Hi friends.

I’m trying to encrypt my hard drive with KDE Partition Manager on EOS.

Does anyone know if I should check LUKS, LUKS2 or both? If I check both, will I get double encryption?

Also, under “permissions”, what exactly is the difference between “everyone” and “only root”?

If I check “everyone” does that mean I can access this SSD/HDD from another PC just by entering the encryption password?

And if I check “only root”, does that mean I can only access this SSD/HDD from this PC only and not from another PC?

I can’t figure out the difference, I tried testing with “only root” but I can’t seem to access the SSD.

Thanks in advance.

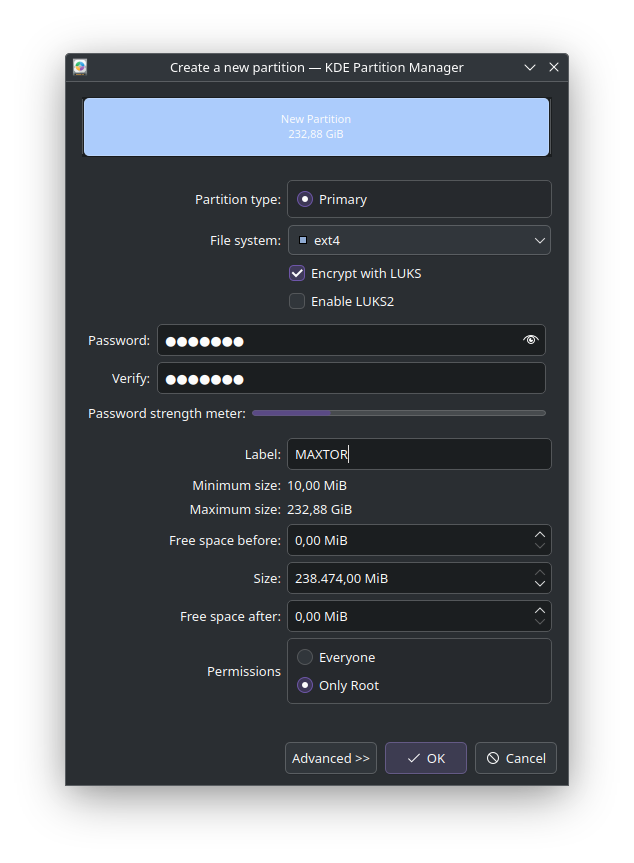

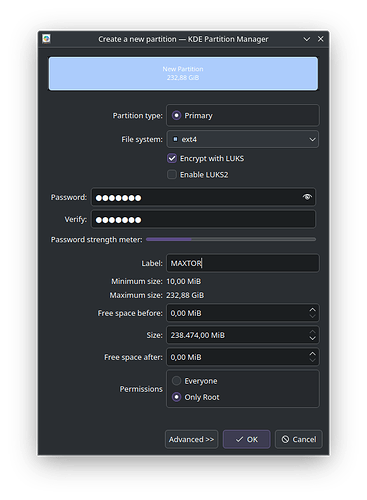

Screenshot_20241111_205146
Screenshot_20241111_205146634×863 58.1 KB

image286×221 4.64 KB

image506×229 10.2 KB

2

You will not get double encryption. If you check both you will get luks2 encryption, if you only check the first box, you will get luks1.

It is best to select “Only root” and then change the ownership after it is formatted and mounted.

2 Likes
3

Thanks!

So, LUKS 1 and LUKS 2 is a bit of a design flaw, as it should let you select just 1, like when you select “everyone” or “only root”, I mean, it would be less confusing, but it’s not a big deal xD

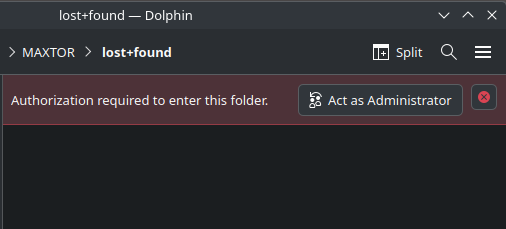

Sorry, my English is pretty bad, I didn’t understand this. I already formatted the hard drive. When I mount the SSD it asks me for the encryption password, and then my EOS user password, but after I enter the 2 passwords correctly, I get this:

image506×229 10.2 KB

What do I have to do next? I’m the only user of my EOS, so I’m the admin-ownership, if I’m not mistaken.

4

Can you share the output of findmnt --real

1 Like
5

Both does not make sense and eventually ends up in LUKS2.

There is only one reason to select LUKS1. And that his grub. grub does not fully support LUKS2.
If you use grub and this is your boot drive and grub needs to open that device to boot from, you should use LUKS1. All other devices should be encrypted with LUKS2.

2 Likes
6

Sure! Here:

Thanks for the info friend! By the way, if I uncheck the “encypt with luks” checkbox both checkboxes will be hidden. So to get LUKS 2 I have to have the first one checked too.

7

Please share it as text not a screenshot. Not only does it save bandwidth for the forum and our users, there is no way I am retyping that giant ID.

Yes, of course that is true. If you uncheck the first box, it means no encryption.

1 Like
8

Yes sure, sorry, I hadn’t thought of that.

$ findmnt --real
TARGET                 SOURCE                            FSTYPE OPTIONS
/                      /dev/sda1                         ext4   rw,noatime
├─/run/user/1000/doc   portal                            fuse.p rw,nosuid,nodev,relatime,user_id=1000,group_id
└─/run/media/MAXTOR
                       /dev/mapper/luks-30928dd2-69e0-4fdb-91c1-3d7e5a5068a4
                                                         ext4   rw,nosuid,nodev,relatime,errors=remount-ro
$
9

Try this:

sudo chown -R 1000:1000 /run/media/septem/MAXTOR

Don’t run that against any other directory. Running it somewhere else in the filesystem can cause serious problems.
