kangy
April 13, 2026, 8:10pm
1
This is a bit of a weird one I think as I can’t really find anything related to my exact situation.

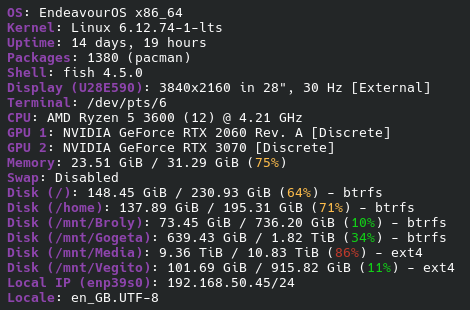

First off here are my specs (I’m going to remove the 2060):
I have an old gaming PC I repurposed into a home server and installed EOS on it. Everything was fine for a while but suddenly after a kernel I started getting boot errors. Please see the screenshot for the messages
The system would try to boot twice before kicking me to the BIOS. The weird thing here is I would change nothing in the BIOS, exit without saving and the system would boot. However if I left the BIOS by saving and rebooting the system would loop back to the above.
So on choosing exit without saving at the BIOS and getting the system back up I would find a random BTRFS filesystem would be corrupt and read only (I have 3, my home partition, an NVMe drive and a mechanical drive). Generally i’d copy the data off the affected drive, reformat the drive and be free of corruption. Until my next reboot and the cycle repeats.
I found eventually that the LTS Kernal at the time didn’t cause this issue (6.12.74-1) so I stuck with that kernel until EOS updated the LTS kernel passed this point. I added the working kernel and the relevant packages to pacman.conf pkgignore.
Obviously this isn’t ideal so i’d like to resolve this somehow. I’ve searched this for weeks and have come up short so turning to you lovely lot in the hopes someone has a clue what’s going on or can point me in the general of a fix.
Thank you in advance!
Bink
April 13, 2026, 10:54pm
2
Welcome to the community @kangy
(noted your drive names
What brand and model power supply (PSU) are you using in that system? To power all of those components (and there’s a lot ), you’d need at least a decent 700W PSU.
I’d suggest removing some things. The Nvidia GeForce RTX 2060 would be my pick as a simple thing to remove and test, but you might also try unplugging the power of the non-essential hard drives.
If the issue doesn’t persist while testing that, you might have a power issue.
kangy
April 13, 2026, 11:01pm
3
Thanks!
I can’t remember the exact model but it’s a Corsair 750w Gold I believe.
The bit that is throwing me off is it’s working okay on the specific version of the kernel i’m on and doesn’t on any versions higher.
I will retest with some of the HDDs and none essential parts disconnected to cover that base though!
kangy
April 15, 2026, 9:37pm
4
So it doesn’t seem to be a power issue, it happens with only the essentials connected
Bink
April 16, 2026, 1:00am
5
You might try running some SMART tests on your drives, to try and rule out a hardware issue:
sudo smartctl -t short /dev/device
sudo smartctl -t long /dev/device
Replacing device there with your actual devices, likes sda, nvme0n1, etc. To get a list of your devices, use:
lsblk -l
mbod
April 16, 2026, 8:28am
6
Please share more info about the system.
Lets start with this:
content of /etc/fstab
full content of the EFI partition
output of bootctl status
output of bootctl list
kangy
April 16, 2026, 4:40pm
7
Sorry for the delay. I have done the smart test and all drives are showing as okay with no errors
kangy
April 16, 2026, 4:46pm
8
Here’s my fstab:
# <file system> <mount point> <type> <options> <dump> <pass>
UUID=37630c35-c279-4c6f-b9cb-da9018ddec06 /home btrfs noatime,compress=zstd 0 0
UUID=6393-F8E2 /efi vfat fmask=0137,dmask=0027 0 2
UUID=d6b21910-2c5f-457d-9add-6aa357a430da / btrfs subvol=/@,noatime,compress=zstd 0 0
UUID=d6b21910-2c5f-457d-9add-6aa357a430da /var/cache btrfs subvol=/@cache,noatime,compress=zstd 0 0
UUID=d6b21910-2c5f-457d-9add-6aa357a430da /var/log btrfs subvol=/@log,noatime,compress=zstd 0 0
tmpfs /tmp tmpfs noatime,mode=1777 0 0
/dev/sda1 /mnt/Gogeta btrfs nofail,users 0 0
/dev/sdb1 /mnt/Media ext4 nofail,users 0 0
/dev/sdc1 /mnt/Vegito ext4 nofail,users 0 0
/dev/nvme0n1p1 /mnt/Broly btrfs defaults 0 0
Is there a command I can run to fetch the EFI partition contents?
Here is my bootctl status:
System:
Firmware: UEFI 2.70 (American Megatrends 5.14)
Firmware Arch: x64
Secure Boot: disabled (setup)
TPM2 Support: yes
Measured UKI: no
Boot into FW: supported
Current Boot Loader:
Product: systemd-boot 260.1-1-arch
Features: ✓ Boot counting
✓ Menu timeout control
✓ One-shot menu timeout control
✓ Default entry control
✓ One-shot entry control
✓ Support for XBOOTLDR partition
✓ Support for passing random seed to OS
✓ Load drop-in drivers
✓ Support Type #1 sort-key field
✓ Support @saved pseudo-entry
✓ Support Type #1 devicetree field
✓ Enroll SecureBoot keys
✓ Retain SHIM protocols
✓ Menu can be disabled
✓ Multi-Profile UKIs are supported
✓ Loader reports network boot URL
✓ Support Type #1 uki field
✓ Support Type #1 uki-url field
✓ Loader reports active TPM2 PCR banks
Partition: /dev/disk/by-partuuid/735e1854-ab74-4336-941f-25cce16b10dd
Loader: └─/efi//EFI/SYSTEMD/SYSTEMD-BOOTX64.EFI
Current Entry: 44614bce76004e25b0576dbd5312a371-6.12.74-1-lts.conf
Default Entry: 44614bce76004e25b0576dbd5312a371-6.12.67-1-lts.conf
Random Seed:
System Token: set
Exists: yes
Available Boot Loaders on ESP:
ESP: /efi (/dev/disk/by-partuuid/735e1854-ab74-4336-941f-25cce16b10dd)
File: ├─/efi//EFI/systemd/systemd-bootx64.efi (systemd-boot 260.1-1-arch)
└─/efi//EFI/BOOT/BOOTX64.EFI (systemd-boot 260.1-1-arch)
Boot Loaders Listed in EFI Variables:
Title: Linux Boot Manager
ID: 0x0000
Status: active, boot-order
Partition: /dev/disk/by-partuuid/735e1854-ab74-4336-941f-25cce16b10dd
File: └─/efi//EFI/SYSTEMD/SYSTEMD-BOOTX64.EFI
Title: UEFI OS
ID: 0x0001
Status: active, boot-order
Partition: /dev/disk/by-partuuid/735e1854-ab74-4336-941f-25cce16b10dd
File: └─/efi//EFI/BOOT/BOOTX64.EFI
Boot Loader Entry Locations:
ESP: /efi (/dev/disk/by-partuuid/735e1854-ab74-4336-941f-25cce16b10dd, $BOOT)
config: /efi//loader/loader.conf
token: endeavouros
Default Boot Loader Entry:
type: Boot Loader Specification Type #1 (.conf)
title: EndeavourOS (6.12.74-1-lts)
id: 44614bce76004e25b0576dbd5312a371-6.12.74-1-lts.conf
source: /efi//loader/entries/44614bce76004e25b0576dbd5312a371-6.12.74-1-lts.conf (on the EFI System Partition)
sort-key: endeavouros-6.12.74-1-lts
version: 6.12.74-1-lts
machine-id: 44614bce76004e25b0576dbd5312a371
linux: /efi//44614bce76004e25b0576dbd5312a371/6.12.74-1-lts/linux
initrd: /efi//44614bce76004e25b0576dbd5312a371/6.12.74-1-lts/initrd
options: nvme_load=YES nowatchdog rw rootflags=subvol=/@ root=UUID=d6b21910-2c5f-457d-9add-6aa357a430da systemd.machine_id=44614bce76004e25b0576dbd5312a371
Here is my bootctl list:
type: Boot Loader Specification Type #1 (.conf)
title: EndeavourOS (6.12.74-1-lts) (default) (selected)
id: 44614bce76004e25b0576dbd5312a371-6.12.74-1-lts.conf
source: /efi//loader/entries/44614bce76004e25b0576dbd5312a371-6.12.74-1-lts.conf (on the EFI System Partition)
sort-key: endeavouros-6.12.74-1-lts
version: 6.12.74-1-lts
machine-id: 44614bce76004e25b0576dbd5312a371
linux: /efi//44614bce76004e25b0576dbd5312a371/6.12.74-1-lts/linux
initrd: /efi//44614bce76004e25b0576dbd5312a371/6.12.74-1-lts/initrd
options: nvme_load=YES nowatchdog rw rootflags=subvol=/@ root=UUID=d6b21910-2c5f-457d-9add-6aa357a430da systemd.machine_id=44614bce76004e25b0576dbd5312a371
type: Boot Loader Specification Type #1 (.conf)
title: EndeavourOS (6.12.74-1-lts-fallback)
id: 44614bce76004e25b0576dbd5312a371-6.12.74-1-lts-fallback.conf
source: /efi//loader/entries/44614bce76004e25b0576dbd5312a371-6.12.74-1-lts-fallback.conf (on the EFI System Partition)
sort-key: endeavouros-6.12.74-1-lts-fallback
version: 6.12.74-1-lts-fallback
machine-id: 44614bce76004e25b0576dbd5312a371
linux: /efi//44614bce76004e25b0576dbd5312a371/6.12.74-1-lts/linux
initrd: /efi//44614bce76004e25b0576dbd5312a371/6.12.74-1-lts/initrd-fallback
options: nvme_load=YES nowatchdog rw rootflags=subvol=/@ root=UUID=d6b21910-2c5f-457d-9add-6aa357a430da systemd.machine_id=44614bce76004e25b0576dbd5312a371
type: Boot Loader Specification Type #1 (.conf)
title: EndeavourOS (6.19.11-arch1-1)
id: 44614bce76004e25b0576dbd5312a371-6.19.11-arch1-1.conf
source: /efi//loader/entries/44614bce76004e25b0576dbd5312a371-6.19.11-arch1-1.conf (on the EFI System Partition)
sort-key: endeavouros-6.19.11-arch1-1
version: 6.19.11-arch1-1
machine-id: 44614bce76004e25b0576dbd5312a371
linux: /efi//44614bce76004e25b0576dbd5312a371/6.19.11-arch1-1/linux
initrd: /efi//44614bce76004e25b0576dbd5312a371/6.19.11-arch1-1/initrd
options: nvme_load=YES nowatchdog rw rootflags=subvol=/@ root=UUID=d6b21910-2c5f-457d-9add-6aa357a430da systemd.machine_id=44614bce76004e25b0576dbd5312a371
type: Boot Loader Specification Type #1 (.conf)
title: EndeavourOS (6.19.11-arch1-1-fallback)
id: 44614bce76004e25b0576dbd5312a371-6.19.11-arch1-1-fallback.conf
source: /efi//loader/entries/44614bce76004e25b0576dbd5312a371-6.19.11-arch1-1-fallback.conf (on the EFI System Partition)
sort-key: endeavouros-6.19.11-arch1-1-fallback
version: 6.19.11-arch1-1-fallback
machine-id: 44614bce76004e25b0576dbd5312a371
linux: /efi//44614bce76004e25b0576dbd5312a371/6.19.11-arch1-1/linux
initrd: /efi//44614bce76004e25b0576dbd5312a371/6.19.11-arch1-1/initrd-fallback
options: nvme_load=YES nowatchdog rw rootflags=subvol=/@ root=UUID=d6b21910-2c5f-457d-9add-6aa357a430da systemd.machine_id=44614bce76004e25b0576dbd5312a371
type: Automatic
title: Reboot Into Firmware Interface
id: auto-reboot-to-firmware-setup
source: /sys/firmware/efi/efivars/LoaderEntries-4a67b082-0a4c-41cf-b6c7-440b29bb8c4f (on the EFI System Partition)
mbod
April 16, 2026, 5:45pm
9
This is weird. Form my point of view the 6.12.67 entry should not be there. Your default should be 6.12.74.
your bootctl list shows this:
Quick question: Do you have “fast boot” enabled in the BIOS? If yes, please disable it.
And what is the output of efibootmgr -v ?
kangy
April 16, 2026, 6:08pm
10
This is weird. Form my point of view the 6.12.67 entry should not be there. Your default should be 6.12.74.
I’ll be honest, I don’t know why it’s there either
efibootmgr -v shows this:
BootCurrent: 0000
Timeout: 1 seconds
BootOrder: 0000,0001
Boot0000* Linux Boot Manager HD(2,GPT,735e1854-ab74-4336-941f-25cce16b10dd,0x800,0x3e8000)/\EFI\SYSTEMD\SYSTEMD-BOOTX64.EFI
dp: 04 01 2a 00 02 00 00 00 00 08 00 00 00 00 00 00 00 80 3e 00 00 00 00 00 54 18 5e 73 74 ab 36 43 94 1f 25 cc e1 6b 10 dd 02 02 / 04 04 46 00 5c 00 45 00 46 00 49 00 5c 00 53 00 59 00 53 00 54 00 45 00 4d 00 44 00 5c 00 53 00 59 00 53 00 54 00 45 00 4d 00 44 00 2d 00 42 00 4f 00 4f 00 54 00 58 00 36 00 34 00 2e 00 45 00 46 00 49 00 00 00 / 7f ff 04 00
Boot0001* UEFI OS HD(2,GPT,735e1854-ab74-4336-941f-25cce16b10dd,0x800,0x3e8000)/\EFI\BOOT\BOOTX64.EFI0000424f
dp: 04 01 2a 00 02 00 00 00 00 08 00 00 00 00 00 00 00 80 3e 00 00 00 00 00 54 18 5e 73 74 ab 36 43 94 1f 25 cc e1 6b 10 dd 02 02 / 04 04 30 00 5c 00 45 00 46 00 49 00 5c 00 42 00 4f 00 4f 00 54 00 5c 00 42 00 4f 00 4f 00 54 00 58 00 36 00 34 00 2e 00 45 00 46 00 49 00 00 00 / 7f ff 04 00
data: 00 00 42 4f
Rebooting into the BIOS now to check the fastboot status
Edit: Fastboot seems to be disabled
initial post is also showing old kernel version..
mbod
April 16, 2026, 7:51pm
12
kangy:
Timeout: 1 seconds
On some systems this UEFI timeout is too short. You may want to try something slower, e.g. 5 s.
sudo efibootmgr --timeout 5000
sudo bootctl update
And then reboot. See if that helps.
kangy
April 16, 2026, 9:03pm
13

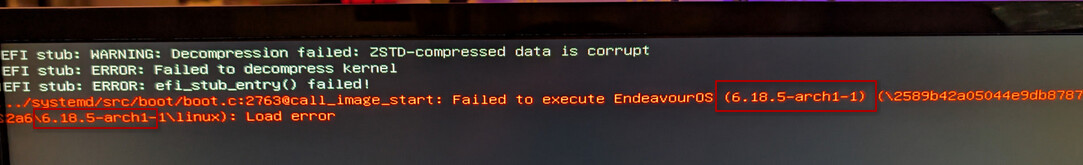

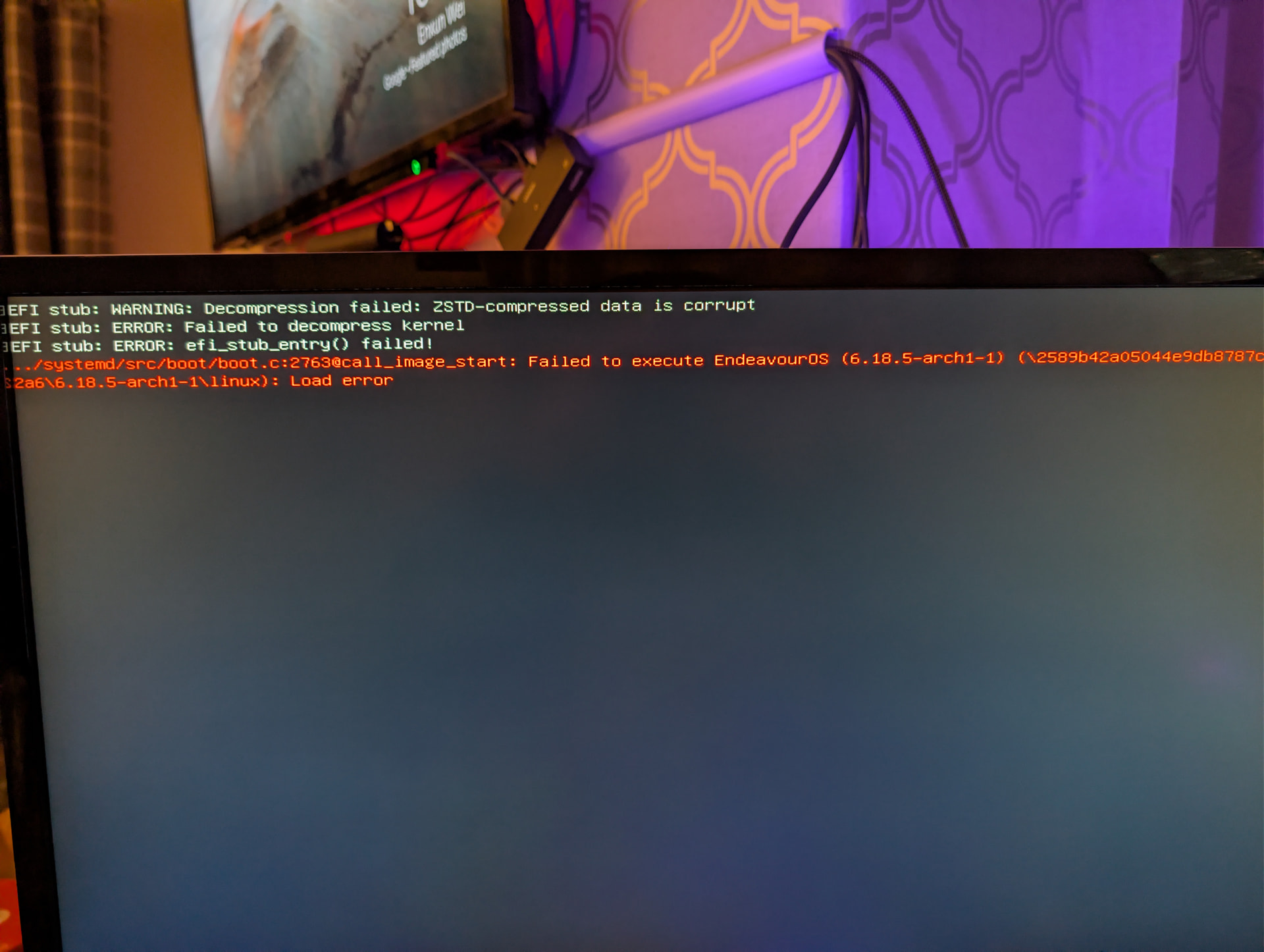

It’s a picture I had taken back at the time I initially tried to diagnose this issue. I’ve tried it over a couple of kernel versions with same results
kangy
April 16, 2026, 9:04pm
14
I’ll give that a shot and report back. Thank you!
/etc/dracut.conf.d/eos-defaults.conf:
compress="cat"
and sudo reinstall-kernels
to use uncompressed kernel images just comes to my mind..
kangy
April 25, 2026, 7:25pm
16
Thank you for your response but I just narrowed it down due to some unrelated issues.
It was indeed a bad RAM stick. I’ve removed the offending stick and everything is working as expected!
Thank you to everyone who chipped in to help me
)
