System freeze, how to figure out why?

General system Kernel, boot, graphics & hardware
1

My desktop PC (AMD 9950X3D, Nvidia RTX 5080, Asus ProArt X870E, recently installed EOS with KDE) freezes from to time, like once a week. The screen gets frozen, the sound disappears, not reacting to mouse/keyboard, so have to reboot via the reset button. Can happen in idle or under load.

journalctl usually has this error about PCIE at the very end, nothing else:

окт 02 09:53:29 alex-pc kernel: ata7.00: qc timeout after 15000 msecs (cmd 0x47)
окт 02 09:53:21 alex-pc kernel: igc 0000:0a:00.0 enp10s0: PCIe link lost, device now detached
окт 02 09:53:17 alex-pc kernel: pcieport 0000:07:00.0: Unable to change power state from D3hot to D0, device inaccessible
окт 02 09:53:16 alex-pc kernel: atlantic 0000:0b:00.0 enp11s0: atlantic: link change old 2500 new 0
окт 02 09:53:16 alex-pc kernel: pcieport 0000:07:08.0: Unable to change power state from D3hot to D0, device inaccessible

lspci -s 07:08.0 shows
07:08.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset PCIe Switch Downstream Port (rev 01)

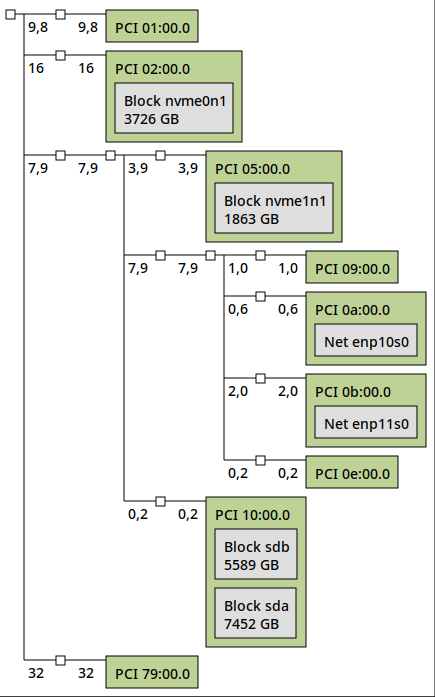

and in lstopo I don’t see it

image435×697 30.3 KB

So not sure what’s this device. Could it be the Nvidia GPU?

lspci -vt
-[0000:00]-+-00.0  Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Root Complex
           +-00.2  Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge IOMMU
           +-01.0  Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Dummy Host Bridge
           +-01.1-[01]--+-00.0  NVIDIA Corporation GB203 [GeForce RTX 5080]
           |            \-00.1  NVIDIA Corporation Device 22e9
           +-01.2-[02]----00.0  Samsung Electronics Co Ltd Device a810
           +-02.0  Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Dummy Host Bridge
           +-02.1-[03-10]----00.0-[04-10]--+-00.0-[05]----00.0  Samsung Electronics Co Ltd NVMe SSD Controller SM981/PM981/PM983
           |                               +-08.0-[06-0e]----00.0-[07-0e]--+-00.0-[08]--
           |                               |                               +-04.0-[09]----00.0  MEDIATEK Corp. Device 6639
           |                               |                               +-05.0-[0a]----00.0  Intel Corporation Ethernet Controller I226-V
           |                               |                               +-06.0-[0b]----00.0  Aquantia Corp. AQtion AQC113 NBase-T/IEEE 802.3an Ethernet Controller [Antigua 10G]
           |                               |                               +-08.0-[0c]--
           |                               |                               +-0c.0-[0d]----00.0  Advanced Micro Devices, Inc. [AMD] 800 Series Chipset USB 3.x XHCI Controller
           |                               |                               \-0d.0-[0e]----00.0  Advanced Micro Devices, Inc. [AMD] 600 Series Chipset SATA Controller
           |                               +-0c.0-[0f]----00.0  Advanced Micro Devices, Inc. [AMD] 800 Series Chipset USB 3.x XHCI Controller
           |                               \-0d.0-[10]----00.0  Advanced Micro Devices, Inc. [AMD] 600 Series Chipset SATA Controller
           +-02.2-[11-78]----00.0-[12-78]--+-00.0-[17-46]--
           |                               +-01.0-[47-76]--
           |                               +-02.0-[77]----00.0  ASMedia Technology Inc. ASM4242 USB 3.2 xHCI Controller
           |                               \-03.0-[78]----00.0  ASMedia Technology Inc. ASM4242 USB 4 / Thunderbolt 3 Host Router
           +-03.0  Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Dummy Host Bridge
           +-04.0  Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Dummy Host Bridge
           +-08.0  Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Dummy Host Bridge
           +-08.1-[79]--+-00.0  Advanced Micro Devices, Inc. [AMD/ATI] Granite Ridge [Radeon Graphics]
           |            +-00.1  Advanced Micro Devices, Inc. [AMD/ATI] Radeon High Definition Audio Controller [Rembrandt/Strix]
           |            +-00.2  Advanced Micro Devices, Inc. [AMD] Family 19h PSP/CCP
           |            +-00.3  Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge USB 3.1 xHCI
           |            +-00.4  Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge USB 3.1 xHCI
           |            \-00.6  Advanced Micro Devices, Inc. [AMD] Family 17h/19h/1ah HD Audio Controller
           +-08.3-[7a]----00.0  Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge USB 2.0 xHCI
           +-14.0  Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller
           +-14.3  Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge
           +-18.0  Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Data Fabric; Function 0
           +-18.1  Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Data Fabric; Function 1
           +-18.2  Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Data Fabric; Function 2
           +-18.3  Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Data Fabric; Function 3
           +-18.4  Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Data Fabric; Function 4
           +-18.5  Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Data Fabric; Function 5
           +-18.6  Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Data Fabric; Function 6
           \-18.7  Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Data Fabric; Function 7

lspci -v
00:00.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Root Complex
        Subsystem: ASUSTeK Computer Inc. Device 8877
        Flags: fast devsel, IOMMU group 0

00:00.2 IOMMU: Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge IOMMU
        Subsystem: ASUSTeK Computer Inc. Device 8877
        Flags: bus master, fast devsel, latency 0, IRQ 27
        Capabilities: <access denied>

00:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Dummy Host Bridge
        Flags: fast devsel, IOMMU group 1

00:01.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge GPP Bridge (prog-if 00 [Normal decode])
        Subsystem: ASUSTeK Computer Inc. Device 8877
        Flags: bus master, fast devsel, latency 0, IRQ 28, IOMMU group 2
        Bus: primary=00, secondary=01, subordinate=01, sec-latency=0
        I/O behind bridge: f000-ffff [size=4K] [16-bit]
        Memory behind bridge: d8000000-dc0fffff [size=65M] [32-bit]
        Prefetchable memory behind bridge: f800000000-fc01ffffff [size=16416M] [32-bit]
        Capabilities: <access denied>
        Kernel driver in use: pcieport

00:01.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge GPP Bridge (prog-if 00 [Normal decode])
        Subsystem: ASUSTeK Computer Inc. Device 8877
        Flags: bus master, fast devsel, latency 0, IRQ 29, IOMMU group 3
        Bus: primary=00, secondary=02, subordinate=02, sec-latency=0
        I/O behind bridge: [disabled] [32-bit]
        Memory behind bridge: ddf00000-ddffffff [size=1M] [32-bit]
        Prefetchable memory behind bridge: [disabled] [64-bit]
        Capabilities: <access denied>
        Kernel driver in use: pcieport

00:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Dummy Host Bridge
        Flags: fast devsel, IOMMU group 4

00:02.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge GPP Bridge (prog-if 00 [Normal decode])
        Subsystem: ASUSTeK Computer Inc. Device 8877
        Flags: bus master, fast devsel, latency 0, IRQ 30, IOMMU group 5
        Bus: primary=00, secondary=03, subordinate=10, sec-latency=0
        I/O behind bridge: [disabled] [32-bit]
        Memory behind bridge: 80000000-80ffffff [size=16M] [32-bit]
        Prefetchable memory behind bridge: [disabled] [64-bit]
        Capabilities: <access denied>
        Kernel driver in use: pcieport

00:02.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge GPP Bridge (prog-if 00 [Normal decode])
        Subsystem: ASUSTeK Computer Inc. Device 8877
        Flags: bus master, fast devsel, latency 0, IRQ 31, IOMMU group 6
        Bus: primary=00, secondary=11, subordinate=78, sec-latency=0
        I/O behind bridge: 8000-dfff [size=24K] [16-bit]
        Memory behind bridge: a4000000-d47fffff [size=776M] [32-bit]
        Prefetchable memory behind bridge: b800000000-f7ffffffff [size=256G] [32-bit]
        Capabilities: <access denied>
        Kernel driver in use: pcieport

00:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Dummy Host Bridge
        Flags: fast devsel, IOMMU group 7

00:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Dummy Host Bridge
        Flags: fast devsel, IOMMU group 8

00:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Dummy Host Bridge
        Flags: fast devsel, IOMMU group 9

00:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Internal GPP Bridge to Bus [C:A] (prog-if 00 [Normal decode])
        Subsystem: ASUSTeK Computer Inc. Device 8877
        Flags: bus master, fast devsel, latency 0, IRQ 32, IOMMU group 10
        Bus: primary=00, secondary=79, subordinate=79, sec-latency=0
        I/O behind bridge: e000-efff [size=4K] [16-bit]
        Memory behind bridge: dd800000-dddfffff [size=6M] [32-bit]
        Prefetchable memory behind bridge: fc10000000-fc1fffffff [size=256M] [32-bit]
        Capabilities: <access denied>
        Kernel driver in use: pcieport

00:08.3 PCI bridge: Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Internal GPP Bridge to Bus [C:A] (prog-if 00 [Normal decode])
        Subsystem: ASUSTeK Computer Inc. Device 8877
        Flags: bus master, fast devsel, latency 0, IRQ 33, IOMMU group 11
        Bus: primary=00, secondary=7a, subordinate=7a, sec-latency=0
        I/O behind bridge: [disabled] [32-bit]
        Memory behind bridge: dde00000-ddefffff [size=1M] [32-bit]
        Prefetchable memory behind bridge: [disabled] [64-bit]
        Capabilities: <access denied>
        Kernel driver in use: pcieport

00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 71)
        Subsystem: ASUSTeK Computer Inc. Device 8877
        Flags: 66MHz, medium devsel, IOMMU group 12
        Kernel driver in use: piix4_smbus
        Kernel modules: i2c_piix4, sp5100_tco

00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 51)
        Subsystem: ASUSTeK Computer Inc. Device 8877
        Flags: bus master, 66MHz, medium devsel, latency 0, IOMMU group 12

00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Data Fabric; Function 0
        Flags: fast devsel, IOMMU group 13

00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Data Fabric; Function 1
        Flags: fast devsel, IOMMU group 13

00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Data Fabric; Function 2
        Flags: fast devsel, IOMMU group 13

00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Data Fabric; Function 3
        Flags: fast devsel, IOMMU group 13
        Kernel driver in use: k10temp
        Kernel modules: k10temp

00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Data Fabric; Function 4
        Flags: fast devsel, IOMMU group 13

00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Data Fabric; Function 5
        Flags: fast devsel, IOMMU group 13

00:18.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Data Fabric; Function 6
        Flags: fast devsel, IOMMU group 13

00:18.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge Data Fabric; Function 7
        Flags: fast devsel, IOMMU group 13

01:00.0 VGA compatible controller: NVIDIA Corporation GB203 [GeForce RTX 5080] (rev a1) (prog-if 00 [VGA controller])
        Subsystem: Palit Microsystems Inc. Device f320
        Flags: bus master, fast devsel, latency 0, IRQ 97, IOMMU group 14
        Memory at d8000000 (32-bit, non-prefetchable) [size=64M]
        Memory at f800000000 (64-bit, prefetchable) [size=16G]
        Memory at fc00000000 (64-bit, prefetchable) [size=32M]
        I/O ports at f000 [size=128]
        Expansion ROM at dc000000 [virtual] [disabled] [size=512K]
        Capabilities: <access denied>
        Kernel driver in use: nvidia
        Kernel modules: nouveau, nvidia_drm, nvidia

01:00.1 Audio device: NVIDIA Corporation Device 22e9 (rev a1)
        Subsystem: NVIDIA Corporation Device 0000
        Flags: bus master, fast devsel, latency 0, IRQ 185, IOMMU group 14
        Memory at dc080000 (32-bit, non-prefetchable) [size=16K]
        Capabilities: <access denied>
        Kernel driver in use: snd_hda_intel
        Kernel modules: snd_hda_intel

02:00.0 Non-Volatile memory controller: Samsung Electronics Co Ltd Device a810 (prog-if 02 [NVM Express])
        Subsystem: Samsung Electronics Co Ltd Device a801
        Flags: bus master, fast devsel, latency 0, IRQ 101, IOMMU group 15
        Memory at ddf00000 (64-bit, non-prefetchable) [size=16K]
        Capabilities: <access denied>
        Kernel driver in use: nvme
        Kernel modules: nvme

03:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset PCIe Switch Upstream Port (rev 01) (prog-if 00 [Normal decode])
        Subsystem: ASMedia Technology Inc. Device 3328
        Flags: bus master, fast devsel, latency 0, IRQ 24, IOMMU group 16
        Bus: primary=03, secondary=04, subordinate=10, sec-latency=0
        I/O behind bridge: [disabled] [32-bit]
        Memory behind bridge: 80000000-80ffffff [size=16M] [32-bit]
        Prefetchable memory behind bridge: [disabled] [64-bit]
        Capabilities: <access denied>
        Kernel driver in use: pcieport

04:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset PCIe Switch Downstream Port (rev 01) (prog-if 00 [Normal decode])
        Subsystem: ASMedia Technology Inc. Device 3328
        Flags: bus master, fast devsel, latency 0, IRQ 34, IOMMU group 17
        Bus: primary=04, secondary=05, subordinate=05, sec-latency=0
        I/O behind bridge: [disabled] [32-bit]
        Memory behind bridge: 80000000-800fffff [size=1M] [32-bit]
        Prefetchable memory behind bridge: [disabled] [64-bit]
        Capabilities: <access denied>
        Kernel driver in use: pcieport

04:08.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset PCIe Switch Downstream Port (rev 01) (prog-if 00 [Normal decode])
        Subsystem: ASMedia Technology Inc. Device 3328
        Flags: bus master, fast devsel, latency 0, IRQ 35, IOMMU group 18
        Bus: primary=04, secondary=06, subordinate=0e, sec-latency=0
        I/O behind bridge: [disabled] [32-bit]
        Memory behind bridge: 80100000-80dfffff [size=13M] [32-bit]
        Prefetchable memory behind bridge: [disabled] [64-bit]
        Capabilities: <access denied>
        Kernel driver in use: pcieport

04:0c.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset PCIe Switch Downstream Port (rev 01) (prog-if 00 [Normal decode])
        Subsystem: ASMedia Technology Inc. Device 3328
        Flags: bus master, fast devsel, latency 0, IRQ 24, IOMMU group 19
        Bus: primary=04, secondary=0f, subordinate=0f, sec-latency=0
        I/O behind bridge: [disabled] [16-bit]
        Memory behind bridge: 80e00000-80efffff [size=1M] [32-bit]
        Prefetchable memory behind bridge: [disabled] [64-bit]
        Capabilities: <access denied>
        Kernel driver in use: pcieport

04:0d.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset PCIe Switch Downstream Port (rev 01) (prog-if 00 [Normal decode])
        Subsystem: ASMedia Technology Inc. Device 3328
        Flags: bus master, fast devsel, latency 0, IRQ 36, IOMMU group 20
        Bus: primary=04, secondary=10, subordinate=10, sec-latency=0
        I/O behind bridge: [disabled] [16-bit]
        Memory behind bridge: 80f00000-80ffffff [size=1M] [32-bit]
        Prefetchable memory behind bridge: [disabled] [64-bit]
        Capabilities: <access denied>
        Kernel driver in use: pcieport

05:00.0 Non-Volatile memory controller: Samsung Electronics Co Ltd NVMe SSD Controller SM981/PM981/PM983 (prog-if 02 [NVM Express])
        Subsystem: Samsung Electronics Co Ltd SSD 970 EVO/PRO
        Flags: bus master, fast devsel, latency 0, IRQ 24, IOMMU group 17
        Memory at 80000000 (64-bit, non-prefetchable) [size=16K]
        Capabilities: <access denied>
        Kernel driver in use: nvme
        Kernel modules: nvme

06:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset PCIe Switch Upstream Port (rev 01) (prog-if 00 [Normal decode])
        Subsystem: ASMedia Technology Inc. Device 3328
        Flags: bus master, fast devsel, latency 0, IRQ 24, IOMMU group 18
        Bus: primary=06, secondary=07, subordinate=0e, sec-latency=0
        I/O behind bridge: [disabled] [32-bit]
        Memory behind bridge: 80100000-80dfffff [size=13M] [32-bit]
        Prefetchable memory behind bridge: [disabled] [64-bit]
        Capabilities: <access denied>
        Kernel driver in use: pcieport

07:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset PCIe Switch Downstream Port (rev 01) (prog-if 00 [Normal decode])
        Subsystem: ASMedia Technology Inc. Device 3328
        Flags: bus master, fast devsel, latency 0, IRQ 37, IOMMU group 18
        Bus: primary=07, secondary=08, subordinate=08, sec-latency=0
        I/O behind bridge: [disabled] [32-bit]
        Memory behind bridge: [disabled] [32-bit]
        Prefetchable memory behind bridge: [disabled] [64-bit]
        Capabilities: <access denied>
        Kernel driver in use: pcieport

07:04.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset PCIe Switch Downstream Port (rev 01) (prog-if 00 [Normal decode])
        Subsystem: ASMedia Technology Inc. Device 3328
        Flags: bus master, fast devsel, latency 0, IRQ 38, IOMMU group 18
        Bus: primary=07, secondary=09, subordinate=09, sec-latency=0
        I/O behind bridge: [disabled] [32-bit]
        Memory behind bridge: 80800000-80afffff [size=3M] [32-bit]
        Prefetchable memory behind bridge: [disabled] [64-bit]
        Capabilities: <access denied>
        Kernel driver in use: pcieport

07:05.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset PCIe Switch Downstream Port (rev 01) (prog-if 00 [Normal decode])
        Subsystem: ASMedia Technology Inc. Device 3328
        Flags: bus master, fast devsel, latency 0, IRQ 39, IOMMU group 18
        Bus: primary=07, secondary=0a, subordinate=0a, sec-latency=0
        I/O behind bridge: [disabled] [32-bit]
        Memory behind bridge: 80b00000-80cfffff [size=2M] [32-bit]
        Prefetchable memory behind bridge: [disabled] [64-bit]
        Capabilities: <access denied>
        Kernel driver in use: pcieport

07:06.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset PCIe Switch Downstream Port (rev 01) (prog-if 00 [Normal decode])
        Subsystem: ASMedia Technology Inc. Device 3328
        Flags: bus master, fast devsel, latency 0, IRQ 40, IOMMU group 18
        Bus: primary=07, secondary=0b, subordinate=0b, sec-latency=0
        I/O behind bridge: [disabled] [32-bit]
        Memory behind bridge: 80200000-807fffff [size=6M] [32-bit]
        Prefetchable memory behind bridge: [disabled] [64-bit]
        Capabilities: <access denied>
        Kernel driver in use: pcieport

07:08.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset PCIe Switch Downstream Port (rev 01) (prog-if 00 [Normal decode])
        Subsystem: ASMedia Technology Inc. Device 3328
        Flags: bus master, fast devsel, latency 0, IRQ 41, IOMMU group 18
        Bus: primary=07, secondary=0c, subordinate=0c, sec-latency=0
        I/O behind bridge: [disabled] [32-bit]
        Memory behind bridge: [disabled] [32-bit]
        Prefetchable memory behind bridge: [disabled] [64-bit]
        Capabilities: <access denied>
        Kernel driver in use: pcieport

07:0c.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset PCIe Switch Downstream Port (rev 01) (prog-if 00 [Normal decode])
        Subsystem: ASMedia Technology Inc. Device 3328
        Flags: bus master, fast devsel, latency 0, IRQ 24, IOMMU group 18
        Bus: primary=07, secondary=0d, subordinate=0d, sec-latency=0
        I/O behind bridge: [disabled] [16-bit]
        Memory behind bridge: 80100000-801fffff [size=1M] [32-bit]
        Prefetchable memory behind bridge: [disabled] [64-bit]
        Capabilities: <access denied>
        Kernel driver in use: pcieport

07:0d.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset PCIe Switch Downstream Port (rev 01) (prog-if 00 [Normal decode])
        Subsystem: ASMedia Technology Inc. Device 3328
        Flags: bus master, fast devsel, latency 0, IRQ 36, IOMMU group 18
        Bus: primary=07, secondary=0e, subordinate=0e, sec-latency=0
        I/O behind bridge: [disabled] [16-bit]
        Memory behind bridge: 80d00000-80dfffff [size=1M] [32-bit]
        Prefetchable memory behind bridge: [disabled] [64-bit]
        Capabilities: <access denied>
        Kernel driver in use: pcieport

09:00.0 Network controller: MEDIATEK Corp. Device 6639
        Subsystem: AzureWave Device 5920
        Flags: fast devsel, IRQ 255, IOMMU group 18
        Memory at 80800000 (64-bit, non-prefetchable) [disabled] [size=2M]
        Memory at 80a00000 (64-bit, non-prefetchable) [disabled] [size=32K]
        Capabilities: <access denied>

0a:00.0 Ethernet controller: Intel Corporation Ethernet Controller I226-V (rev 06)
        Subsystem: ASUSTeK Computer Inc. Device 8867
        Flags: bus master, fast devsel, latency 0, IRQ 36, IOMMU group 18
        Memory at 80b00000 (32-bit, non-prefetchable) [size=1M]
        Memory at 80c00000 (32-bit, non-prefetchable) [size=16K]
        Capabilities: <access denied>
        Kernel driver in use: igc
        Kernel modules: igc

0b:00.0 Ethernet controller: Aquantia Corp. AQtion AQC113 NBase-T/IEEE 802.3an Ethernet Controller [Antigua 10G] (rev 03)
        Subsystem: ASUSTeK Computer Inc. Device 8890
        Flags: bus master, fast devsel, latency 0, IRQ 25, IOMMU group 18
        Memory at 80200000 (64-bit, non-prefetchable) [size=512K]
        Memory at 802a0000 (64-bit, non-prefetchable) [size=4K]
        Memory at 80400000 (64-bit, non-prefetchable) [size=4M]
        Expansion ROM at 80280000 [disabled] [size=128K]
        Capabilities: <access denied>
        Kernel driver in use: atlantic
        Kernel modules: atlantic

0d:00.0 USB controller: Advanced Micro Devices, Inc. [AMD] 800 Series Chipset USB 3.x XHCI Controller (rev 01) (prog-if 30 [XHCI])
        Subsystem: ASMedia Technology Inc. Device 1142
        Flags: bus master, fast devsel, latency 0, IRQ 24, IOMMU group 18
        Memory at 80100000 (64-bit, non-prefetchable) [size=32K]
        Capabilities: <access denied>
        Kernel driver in use: xhci_hcd

0e:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset SATA Controller (rev 01) (prog-if 01 [AHCI 1.0])
        Subsystem: ASMedia Technology Inc. Device 1062
        Flags: bus master, fast devsel, latency 0, IRQ 45, IOMMU group 18
        Memory at 80d80000 (32-bit, non-prefetchable) [size=1K]
        Expansion ROM at 80d00000 [disabled] [size=512K]
        Capabilities: <access denied>
        Kernel driver in use: ahci

0f:00.0 USB controller: Advanced Micro Devices, Inc. [AMD] 800 Series Chipset USB 3.x XHCI Controller (rev 01) (prog-if 30 [XHCI])
        Subsystem: ASMedia Technology Inc. Device 1142
        Flags: bus master, fast devsel, latency 0, IRQ 24, IOMMU group 19
        Memory at 80e00000 (64-bit, non-prefetchable) [size=32K]
        Capabilities: <access denied>
        Kernel driver in use: xhci_hcd

10:00.0 SATA controller: Advanced Micro Devices, Inc. [AMD] 600 Series Chipset SATA Controller (rev 01) (prog-if 01 [AHCI 1.0])
        DeviceName: PROM21 SATA AHCI Controller
        Subsystem: ASMedia Technology Inc. Device 1062
        Flags: bus master, fast devsel, latency 0, IRQ 46, IOMMU group 20
        Memory at 80f80000 (32-bit, non-prefetchable) [size=1K]
        Expansion ROM at 80f00000 [disabled] [size=512K]
        Capabilities: <access denied>
        Kernel driver in use: ahci

11:00.0 PCI bridge: ASMedia Technology Inc. ASM4242 PCIe Switch Upstream Port (rev 01) (prog-if 00 [Normal decode])
        Subsystem: ASMedia Technology Inc. ASM4242 PCIe Switch Upstream Port
        Flags: bus master, fast devsel, latency 0, IRQ 24, IOMMU group 21
        Bus: primary=11, secondary=12, subordinate=78, sec-latency=0
        I/O behind bridge: 8000-dfff [size=24K] [16-bit]
        Memory behind bridge: a4000000-d47fffff [size=776M] [32-bit]
        Prefetchable memory behind bridge: b800000000-f7ffffffff [size=256G] [32-bit]
        Capabilities: <access denied>
        Kernel driver in use: pcieport

12:00.0 PCI bridge: ASMedia Technology Inc. ASM4242 PCIe Switch Downstream Port (rev 01) (prog-if 00 [Normal decode])
        Subsystem: ASMedia Technology Inc. Device 2421
        Flags: bus master, fast devsel, latency 0, IRQ 42, IOMMU group 22
        Bus: primary=12, secondary=17, subordinate=46, sec-latency=0
        I/O behind bridge: 8000-afff [size=12K] [16-bit]
        Memory behind bridge: a4000000-bbffffff [size=384M] [32-bit]
        Prefetchable memory behind bridge: b800000000-d7ffffffff [size=128G] [32-bit]
        Capabilities: <access denied>
        Kernel driver in use: pcieport

12:01.0 PCI bridge: ASMedia Technology Inc. ASM4242 PCIe Switch Downstream Port (rev 01) (prog-if 00 [Normal decode])
        Subsystem: ASMedia Technology Inc. Device 2421
        Flags: bus master, fast devsel, latency 0, IRQ 43, IOMMU group 23
        Bus: primary=12, secondary=47, subordinate=76, sec-latency=0
        I/O behind bridge: b000-dfff [size=12K] [16-bit]
        Memory behind bridge: bc000000-d3ffffff [size=384M] [32-bit]
        Prefetchable memory behind bridge: d800000000-f7ffffffff [size=128G] [32-bit]
        Capabilities: <access denied>
        Kernel driver in use: pcieport

12:02.0 PCI bridge: ASMedia Technology Inc. ASM4242 PCIe Switch Downstream Port (rev 01) (prog-if 00 [Normal decode])
        Subsystem: ASMedia Technology Inc. Device 2421
        Flags: bus master, fast devsel, latency 0, IRQ 25, IOMMU group 24
        Bus: primary=12, secondary=77, subordinate=77, sec-latency=0
        I/O behind bridge: [disabled] [16-bit]
        Memory behind bridge: d4000000-d43fffff [size=4M] [32-bit]
        Prefetchable memory behind bridge: [disabled] [64-bit]
        Capabilities: <access denied>
        Kernel driver in use: pcieport

12:03.0 PCI bridge: ASMedia Technology Inc. ASM4242 PCIe Switch Downstream Port (rev 01) (prog-if 00 [Normal decode])
        Subsystem: ASMedia Technology Inc. Device 2421
        Flags: bus master, fast devsel, latency 0, IRQ 44, IOMMU group 25
        Bus: primary=12, secondary=78, subordinate=78, sec-latency=0
        I/O behind bridge: [disabled] [16-bit]
        Memory behind bridge: d4400000-d47fffff [size=4M] [32-bit]
        Prefetchable memory behind bridge: [disabled] [64-bit]
        Capabilities: <access denied>
        Kernel driver in use: pcieport

77:00.0 USB controller: ASMedia Technology Inc. ASM4242 USB 3.2 xHCI Controller (rev 01) (prog-if 30 [XHCI])
        Subsystem: ASMedia Technology Inc. Device 2421
        Flags: bus master, fast devsel, latency 0, IRQ 25, IOMMU group 24
        Memory at d4000000 (64-bit, non-prefetchable) [size=32K]
        Capabilities: <access denied>
        Kernel driver in use: xhci_hcd

78:00.0 USB controller: ASMedia Technology Inc. ASM4242 USB 4 / Thunderbolt 3 Host Router (rev 01) (prog-if 40 [USB4 Host Interface])
        Subsystem: ASMedia Technology Inc. Device 2421
        Flags: bus master, fast devsel, latency 0, IRQ 44, IOMMU group 25
        Memory at d4400000 (64-bit, non-prefetchable) [size=256K]
        Memory at d4440000 (64-bit, non-prefetchable) [size=64K]
        Capabilities: <access denied>
        Kernel driver in use: thunderbolt
        Kernel modules: thunderbolt

79:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Granite Ridge [Radeon Graphics] (rev c9) (prog-if 00 [VGA controller])
        Subsystem: ASUSTeK Computer Inc. Device 8877
        Flags: bus master, fast devsel, latency 0, IRQ 80, IOMMU group 26
        Memory at fc10000000 (64-bit, prefetchable) [size=256M]
        Memory at dd800000 (64-bit, prefetchable) [size=2M]
        I/O ports at e000 [size=256]
        Memory at ddd00000 (32-bit, non-prefetchable) [size=512K]
        Capabilities: <access denied>
        Kernel driver in use: amdgpu
        Kernel modules: amdgpu

79:00.1 Audio device: Advanced Micro Devices, Inc. [AMD/ATI] Radeon High Definition Audio Controller [Rembrandt/Strix]
        Subsystem: ASUSTeK Computer Inc. Device 8877
        Flags: bus master, fast devsel, latency 0, IRQ 187, IOMMU group 27
        Memory at ddd88000 (32-bit, non-prefetchable) [size=16K]
        Capabilities: <access denied>
        Kernel driver in use: snd_hda_intel
        Kernel modules: snd_hda_intel

79:00.2 Encryption controller: Advanced Micro Devices, Inc. [AMD] Family 19h PSP/CCP
        Subsystem: ASUSTeK Computer Inc. Device 8877
        Flags: bus master, fast devsel, latency 0, IRQ 98, IOMMU group 28
        Memory at ddc00000 (32-bit, non-prefetchable) [size=1M]
        Memory at ddd8c000 (32-bit, non-prefetchable) [size=8K]
        Capabilities: <access denied>
        Kernel driver in use: ccp
        Kernel modules: ccp

79:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge USB 3.1 xHCI (prog-if 30 [XHCI])
        Subsystem: ASUSTeK Computer Inc. Device 8877
        Flags: fast devsel, IRQ 71, IOMMU group 29
        Memory at ddb00000 (64-bit, non-prefetchable) [size=1M]
        Capabilities: <access denied>
        Kernel driver in use: xhci_hcd

79:00.4 USB controller: Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge USB 3.1 xHCI (prog-if 30 [XHCI])
        Subsystem: ASUSTeK Computer Inc. Device 8877
        Flags: bus master, fast devsel, latency 0, IRQ 80, IOMMU group 30
        Memory at dda00000 (64-bit, non-prefetchable) [size=1M]
        Capabilities: <access denied>
        Kernel driver in use: xhci_hcd

79:00.6 Audio device: Advanced Micro Devices, Inc. [AMD] Family 17h/19h/1ah HD Audio Controller
        DeviceName: Realtek ALC1220 Audio
        Subsystem: ASUSTeK Computer Inc. Device 886b
        Flags: bus master, fast devsel, latency 0, IRQ 188, IOMMU group 31
        Memory at ddd80000 (32-bit, non-prefetchable) [size=32K]
        Capabilities: <access denied>
        Kernel driver in use: snd_hda_intel
        Kernel modules: snd_hda_intel

7a:00.0 USB controller: Advanced Micro Devices, Inc. [AMD] Raphael/Granite Ridge USB 2.0 xHCI (prog-if 30 [XHCI])
        Subsystem: ASUSTeK Computer Inc. Device 8877
        Flags: fast devsel, IRQ 24, IOMMU group 32
        Memory at dde00000 (64-bit, non-prefetchable) [size=1M]
        Capabilities: <access denied>
        Kernel driver in use: xhci_hcd
2

Which drivers are you running?

3

This is an ethernet device

4

For the GPU? nvidia-open, I think these are the only ones that support 50xx.
It was during the last 2-3 months, so there were multiple updates.

Yeah, but it was not the first one in the log.

I guess it’s like the whole lane(s) went down if it’s multiple devices, not just one specific device?

5

You should be aware that, if the system freezes, the newest part of jounal (volatile!) has no chance to get written to the disk/file. If you cannot force a crash-dump or similar, I think you cannot see, what is going on…
I’ve had a similar problem here, if the watchdog forces random reboots - no log, never.
Sorry for making things more worse…

Edit: Can you check if it is EOS-specific? Will other sys (non Arch for example) run ok?

6

Maybe the really last entries are missing, but I am pretty sure these pcieport things are related to the freeze.

7

The latest BIOS version for this motherboard is 1715, released as of 2025/09/25, just a week ago.

inxi -M should tell you which version is actually installed. In case you haven’t considered to check that.

8

can you provide info on UEFI motherboard option Bifurcation ?
you have PCI video + 2 Nvme , it should be x16 + x8 + x8

what is your power supply ?

9

1200W Seasonic Vertex GX.

Bifurcation? :thinking:

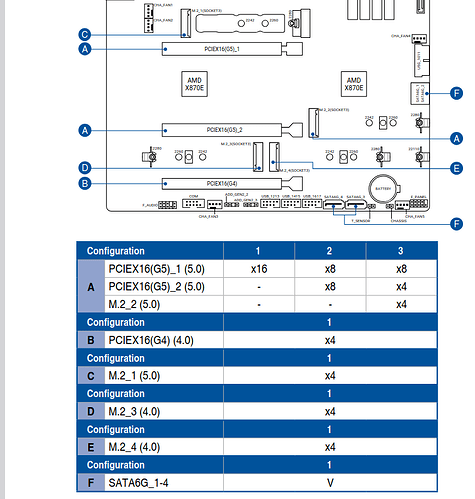

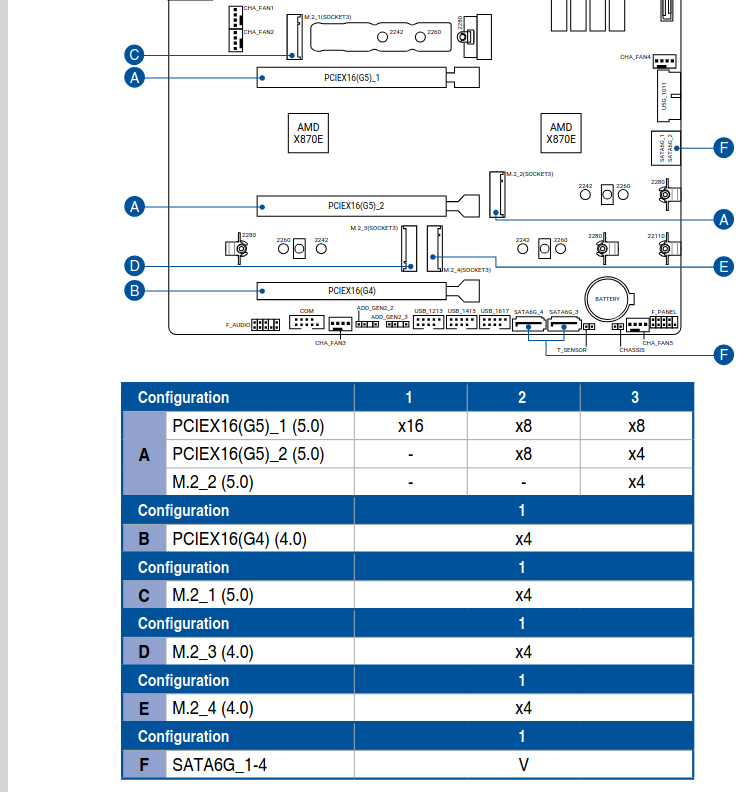

The slot sharing is supposed to be like this, so I have the GPU in the top slot, and one Nvme in the top one, another one in one of the bottom ones.

image753×792 58.1 KB

10

I’ve had incredibly similar freezes on 2 separate laptops running EndeavourOS KDE Plasma 6 on Wayland. Encountered it ~once a month on an ASUS Zenbook from 2018 (Intel CPU + Nvidia 1650 max-q dGPU) as well as ~once a week on a brand new all-AMD Lenovo ThinkPad P1s.

Basically when this happens, all input freezes up, sometimes replaying the last key I’ve pressed and/or the last audio from my speakers. I’ve had a YT video keep playing during the freeze as well as my last key being forever repeated in vscode, leading me to assume it’s more of an input issue than a graphics issue. Once I even had all input devices stop working except my trackpad, which I was able to use to reboot my laptop. Every other time I had to hard reset. I’ve never been able to get to a TTY when this happens.

For me, this only happens if I’m doing something non-intensive, like scrolling in vscode or reading pages in a browser. Never happens when playing a game.

I’ve also tried to look for causes in logs and tried adding kernel boot parameters but couldn’t find a fix or anything indicative

11

an LLM suggested to disable PCI-E ASPM, so I did that in UEFI (and checked via dmesg | grep -i aspm, lspci -vvv | grep -A5 -B5 -i aspm) and the issue seems to not occur anymore.
