Hi,
I had to re-install (EndeavourOS Ganymede + Gnome) my MacBookAir6,2 (2014) after changing the harddrive 1 month ago. I ran into two issues after the install:

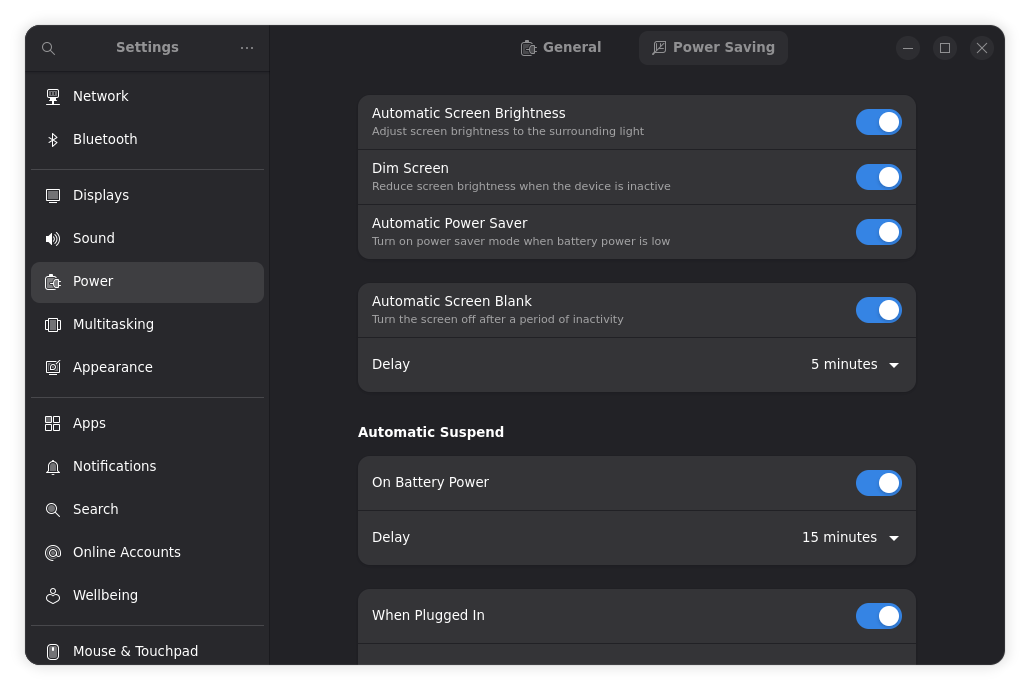

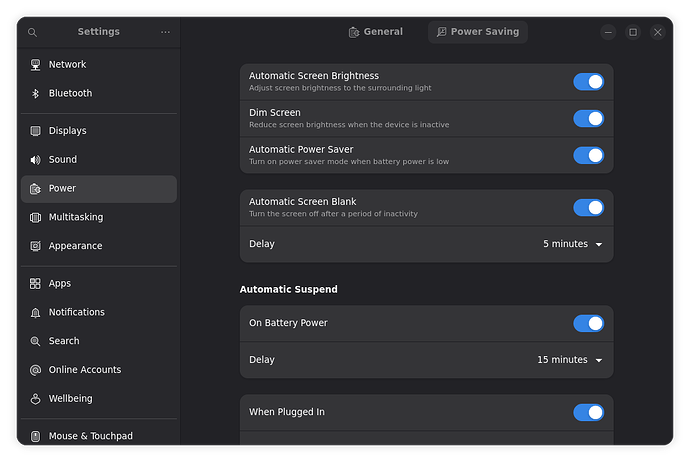

The macbook appears to not automatically be adjusting the lcd backlight anymore.
Can adjust brightness through keyboard keys and Gnome Brightness sliders.
Facetimehd drivers appear to cause kernel crashes .
After installing the facetimehd-dkms and facetimehd-data packages I noticed I would often get a kernel crash on reboot after initramfs was re-built. After removing facetimehd the kernel crashes have stopped. I did test with the Arch, LTS and my daily driver 6.18.9-zen1-2-zen arch kernels.
I happen to go into OBS and noticed that it could access the Apple Camera without the AUR Facetimehd drivers.
Question:
Do we no longer need to use the facetimehd drivers?
Anyone light backlight sensor working with macbook airs?
@chromebook77 @lorebett
Just pinging you guys for awareness, just in case you are still using Macbooks with Arch Linux. Thanks.
The latest facetimeid driver in the AUR fixes this problem:
opened 03:50PM - 30 Jun 25 UTC
closed 09:27AM - 28 Jun 26 UTC
With recent patches, I'm able to get the module to load. When I open any camera … app like `cheese` I get the camera's green led to come on and it looks like it takes a single picture and then I get no further output from the camera.
On a Mid-2014 15" MBP I see this in the dmesg for module load:
```
[ 9.708151] facetimehd 0000:04:00.0: Found FaceTime HD camera with device id: 1570
[ 9.708359] facetimehd 0000:04:00.0: Setting 64bit DMA mask
[ 9.722984] facetimehd 0000:04:00.0: S2 PCIe link init succeeded
[ 9.723049] facetimehd 0000:04:00.0: Refclk: 25MHz (0xa)
[ 9.733071] facetimehd 0000:04:00.0: PLL reset finished
[ 9.733073] facetimehd 0000:04:00.0: Waiting for S2 PLL to lock at 450 MHz
[ 9.733087] facetimehd 0000:04:00.0: S2 PLL is locked after 10 us
[ 9.743098] facetimehd 0000:04:00.0: S2 PLL is in bypass mode
[ 9.763212] facetimehd 0000:04:00.0: DDR40 PHY PLL locked on safe settings
[ 9.763298] facetimehd 0000:04:00.0: STRAP valid
[ 9.763298] facetimehd 0000:04:00.0: Configuring DDR PLLs for 450 MHz
[ 9.763330] facetimehd 0000:04:00.0: DDR40 PLL is locked after 0 us
[ 9.763351] facetimehd 0000:04:00.0: First DDR40 VDL calibration completed after 0 us
[ 9.763390] facetimehd 0000:04:00.0: Second DDR40 VDL calibration completed after 0 us
[ 9.763391] facetimehd 0000:04:00.0: Using step size 151
[ 9.763413] facetimehd 0000:04:00.0: VDL set to: coarse=0x10008, fine=0x1011a
[ 9.763440] facetimehd 0000:04:00.0: Virtual VTT enabled
[ 9.784029] facetimehd 0000:04:00.0: S2 DRAM memory address: 0x22159559
[ 9.784047] facetimehd 0000:04:00.0: Rewrite DDR mode registers succeeded
[ 9.784253] facetimehd 0000:04:00.0: Full memory verification succeeded! (0)
[ 9.908509] facetimehd 0000:04:00.0: Loaded firmware, size: 1392kb
[ 9.948739] facetimehd 0000:04:00.0: ISP woke up after 0ms
[ 9.948746] facetimehd 0000:04:00.0: Number of IPC channels: 7, queue size: 44865
[ 9.948750] facetimehd 0000:04:00.0: Firmware requested heap size: 3072kb
[ 9.958766] facetimehd 0000:04:00.0: ISP second int after 0ms
[ 9.958769] facetimehd 0000:04:00.0: Channel description table at 00800000
[ 9.969023] facetimehd 0000:04:00.0: magic value: 00000000 after 0 ms
[ 9.969024] facetimehd 0000:04:00.0: Enabling interrupts
[ 10.043657] facetimehd 0000:04:00.0: Direct firmware load for facetimehd/1871_01XX.dat failed with error -2
[ 1909.149696] facetimehd 0000:04:00.0: fthd_hw_deinit
[ 1915.336991] facetimehd 0000:04:00.0: Found FaceTime HD camera with device id: 1570
[ 1915.337127] facetimehd 0000:04:00.0: Setting 64bit DMA mask
[ 1915.342326] facetimehd 0000:04:00.0: S2 PCIe link init succeeded
[ 1915.342353] facetimehd 0000:04:00.0: Refclk: 25MHz (0xa)
[ 1915.352365] facetimehd 0000:04:00.0: PLL reset finished
[ 1915.352366] facetimehd 0000:04:00.0: Waiting for S2 PLL to lock at 450 MHz
[ 1915.352379] facetimehd 0000:04:00.0: S2 PLL is locked after 10 us
[ 1915.362392] facetimehd 0000:04:00.0: S2 PLL is in bypass mode
[ 1915.382455] facetimehd 0000:04:00.0: DDR40 PHY PLL locked on safe settings
[ 1915.382561] facetimehd 0000:04:00.0: STRAP valid
[ 1915.382562] facetimehd 0000:04:00.0: Configuring DDR PLLs for 450 MHz
[ 1915.382589] facetimehd 0000:04:00.0: DDR40 PLL is locked after 0 us
[ 1915.382608] facetimehd 0000:04:00.0: First DDR40 VDL calibration completed after 0 us
[ 1915.382629] facetimehd 0000:04:00.0: Second DDR40 VDL calibration completed after 0 us
[ 1915.382630] facetimehd 0000:04:00.0: Using step size 152
[ 1915.382647] facetimehd 0000:04:00.0: VDL set to: coarse=0x10008, fine=0x1011b
[ 1915.382665] facetimehd 0000:04:00.0: Virtual VTT enabled
[ 1915.403226] facetimehd 0000:04:00.0: S2 DRAM memory address: 0x22159559
[ 1915.403239] facetimehd 0000:04:00.0: Rewrite DDR mode registers succeeded
[ 1915.403449] facetimehd 0000:04:00.0: Full memory verification succeeded! (0)
[ 1915.522334] facetimehd 0000:04:00.0: Loaded firmware, size: 1392kb
[ 1915.562517] facetimehd 0000:04:00.0: ISP woke up after 0ms
[ 1915.562523] facetimehd 0000:04:00.0: Number of IPC channels: 7, queue size: 44865
[ 1915.562527] facetimehd 0000:04:00.0: Firmware requested heap size: 3072kb
[ 1915.572543] facetimehd 0000:04:00.0: ISP second int after 0ms
[ 1915.572546] facetimehd 0000:04:00.0: Channel description table at 00800000
[ 1915.582802] facetimehd 0000:04:00.0: magic value: 00000000 after 0 ms
[ 1915.582803] facetimehd 0000:04:00.0: Enabling interrupts
```
And I see this when I open `cheese`:
```
[ 2105.612702] FWMSG: [ISP] CH = 0 CMD = 0x0106 [CISP_CMD_CH_CAMERA_CONFIG_GET]
[ 2105.612787] FWMSG: [DSC] CH = 0 Camera current config Get [0]
[ 2105.612934] FWMSG: [ISP] CH = 0 CMD = 0x0106 [CISP_CMD_CH_CAMERA_CONFIG_GET]
[ 2105.613006] FWMSG: [DSC] CH = 0 Camera current config Get [1]
[ 2105.613144] FWMSG: [ISP] CH = 0 CMD = 0x0107 [CISP_CMD_CH_CAMERA_CONFIG_SELECT]
[ 2105.614723] FWMSG: [DSC] CH = 0 Camera set to config -> 0
[ 2105.614855] FWMSG: [ISP] CH = 0 CMD = 0x0801 [CISP_CMD_CH_CROP_SET]
[ 2105.614932] FWMSG: [DSC] CH = 0 CROP -> [0, 0][1280, 720] within [0, 0][1280, 720]
[ 2105.615058] FWMSG: [ISP] CH = 0 CMD = 0x0b01 [CISP_CMD_CH_OUTPUT_CONFIG_SET]
[ 2105.615194] FWMSG: [DSC] CH = 0 New Output config -> format = 1, range 0, size = 1280x720
[ 2105.615314] FWMSG: [ISP] CH = 0 CMD = 0x010e [CISP_CMD_CH_BUFFER_RECYCLE_MODE_SET]
[ 2105.615343] FWMSG: [DSC] CH = 0 Dynamic Buffers Recycling Mode Set [EMPTY ONLY]
[ 2105.615456] FWMSG: [ISP] CH = 0 CMD = 0x010f [CISP_CMD_CH_BUFFER_RECYCLE_START]
[ 2105.615652] FWMSG: [ISP] CH = 0 CMD = 0x8206 [CISP_CMD_APPLE_CH_AE_METERING_MODE_SET]
[ 2105.615702] FWMSG: [DSC] CH = 0 AE Metering Mode Set [3]
[ 2105.615807] FWMSG: [ISP] CH = 0 CMD = 0x0c00 [CISP_CMD_CH_DRC_START]
[ 2105.615966] FWMSG: [ISP] CH = 0 CMD = 0xc300 [CISP_CMD_APPLE_CH_TONE_CURVE_ADAPTATION_START]
[ 2105.616094] FWMSG: [ISP] CH = 0 CMD = 0x0218 [CISP_CMD_CH_AE_SPEED_SET]
[ 2105.616146] FWMSG: [DSC] CH = 0 AE Speed Set [60]
[ 2105.616257] FWMSG: [ISP] CH = 0 CMD = 0x021a [CISP_CMD_CH_AE_STABILITY_SET]
[ 2105.616305] FWMSG: [DSC] CH = 0 AE Stability Set [75]
[ 2105.616423] FWMSG: [ISP] CH = 0 CMD = 0x0229 [CISP_CMD_CH_AE_STABILITY_TO_STABLE_SET]
[ 2105.616465] FWMSG: [DSC] CH = 0 AE Stability Set [8]
[ 2105.616577] FWMSG: [ISP] CH = 0 CMD = 0x0115 [CISP_CMD_CH_SIF_PIXEL_FORMAT_SET]
[ 2105.616711] FWMSG: [ISP] CH = 0 CMD = 0x0124 [CISP_CMD_CH_CAMERA_ERR_HANDLE_CONFIG]
[ 2105.616833] FWMSG: [ISP] CH = 0 CMD = 0x0d05 [CISP_CMD_CH_FACE_DETECTION_ENABLE]
[ 2105.617061] FWMSG: [ISP] CH = 0 CMD = 0x0d00 [CISP_CMD_CH_FACE_DETECTION_START]
[ 2105.617263] FWMSG: [ISP] CH = 0 CMD = 0x0208 [CISP_CMD_CH_AE_FRAME_RATE_MAX_SET]
[ 2105.617442] FWMSG: [DSC] CH = 0 AE Frame Rate Max Set [8448]
[ 2105.617595] FWMSG: [ISP] CH = 0 CMD = 0x020a [CISP_CMD_CH_AE_FRAME_RATE_MIN_SET]
[ 2105.617694] FWMSG: [DSC] CH = 0 AE Frame Rate Min Set [8448]
[ 2105.617866] FWMSG: [ISP] CH = 0 CMD = 0xc100 [CISP_CMD_APPLE_CH_TEMPORAL_FILTER_START]
[ 2105.618175] FWMSG: [ISP] CH = 0 CMD = 0xc102 [CISP_CMD_APPLE_CH_MOTION_HISTORY_START]
[ 2105.618449] FWMSG: [ISP] CH = 0 CMD = 0xc113 [CISP_CMD_APPLE_CH_TEMPORAL_FILTER_ENABLE]
[ 2105.618576] FWMSG: [ISP] CH = 0 CMD = 0x8106 [CISP_CMD_APPLE_CH_STREAMING_MODE_SET]
[ 2105.618599] FWMSG: [DSC] CH = 0 Streaming Mode Set [0]
[ 2105.618722] FWMSG: [ISP] CH = 0 CMD = 0x0b02 [CISP_CMD_CH_SCALER_BRIGHTNESS_SET]
[ 2105.618858] FWMSG: [ISP] CH = 0 CMD = 0x0b03 [CISP_CMD_CH_SCALER_CONTRAST_SET]
[ 2105.618964] FWMSG: [ISP] CH = 0 CMD = 0x0100 [CISP_CMD_CH_START]
[ 2106.673183] FWMSG: [ISP] CH = 0 CMD = 0x0101 [CISP_CMD_CH_STOP]
[ 2106.711417] FWMSG: [ISP] CH = 0 CMD = 0x0104 [CISP_CMD_CH_BUFFER_RETURN]
[ 2106.712331] FWMSG: [ISP] CH = 0 CMD = 0x0d01 [CISP_CMD_CH_FACE_DETECTION_STOP]
[ 2106.712508] FWMSG: [ISP] CH = 0 CMD = 0x0d04 [CISP_CMD_CH_FACE_DETECTION_DISABLE]
[ 2106.712701] FWMSG: [ISP] CH = 0 CMD = 0xc114 [CISP_CMD_APPLE_CH_TEMPORAL_FILTER_DISABLE]
[ 2106.712865] FWMSG: [ISP] CH = 0 CMD = 0xc103 [CISP_CMD_APPLE_CH_MOTION_HISTORY_STOP]
[ 2106.713007] FWMSG: [ISP] CH = 0 CMD = 0xc101 [CISP_CMD_APPLE_CH_TEMPORAL_FILTER_STOP]
[ 2106.728659] FWMSG: [ISP] CH = 0 CMD = 0x0106 [CISP_CMD_CH_CAMERA_CONFIG_GET]
[ 2106.728751] FWMSG: [DSC] CH = 0 Camera current config Get [0]
[ 2106.728894] FWMSG: [ISP] CH = 0 CMD = 0x0106 [CISP_CMD_CH_CAMERA_CONFIG_GET]
[ 2106.728973] FWMSG: [DSC] CH = 0 Camera current config Get [1]
[ 2106.729108] FWMSG: [ISP] CH = 0 CMD = 0x0107 [CISP_CMD_CH_CAMERA_CONFIG_SELECT]
[ 2106.730757] FWMSG: [DSC] CH = 0 Camera set to config -> 0
[ 2106.730888] FWMSG: [ISP] CH = 0 CMD = 0x0801 [CISP_CMD_CH_CROP_SET]
[ 2106.730967] FWMSG: [DSC] CH = 0 CROP -> [0, 0][1280, 720] within [0, 0][1280, 720]
[ 2106.731091] FWMSG: [ISP] CH = 0 CMD = 0x0b01 [CISP_CMD_CH_OUTPUT_CONFIG_SET]
[ 2106.731232] FWMSG: [DSC] CH = 0 New Output config -> format = 1, range 0, size = 1280x720
[ 2106.731353] FWMSG: [ISP] CH = 0 CMD = 0x010e [CISP_CMD_CH_BUFFER_RECYCLE_MODE_SET]
[ 2106.731382] FWMSG: [DSC] CH = 0 Dynamic Buffers Recycling Mode Set [EMPTY ONLY]
[ 2106.731492] FWMSG: [ISP] CH = 0 CMD = 0x010f [CISP_CMD_CH_BUFFER_RECYCLE_START]
[ 2106.731686] FWMSG: [ISP] CH = 0 CMD = 0x8206 [CISP_CMD_APPLE_CH_AE_METERING_MODE_SET]
[ 2106.731736] FWMSG: [DSC] CH = 0 AE Metering Mode Set [3]
[ 2106.731843] FWMSG: [ISP] CH = 0 CMD = 0x0c00 [CISP_CMD_CH_DRC_START]
[ 2106.731991] FWMSG: [ISP] CH = 0 CMD = 0xc300 [CISP_CMD_APPLE_CH_TONE_CURVE_ADAPTATION_START]
[ 2106.732125] FWMSG: [ISP] CH = 0 CMD = 0x0218 [CISP_CMD_CH_AE_SPEED_SET]
[ 2106.732174] FWMSG: [DSC] CH = 0 AE Speed Set [60]
[ 2106.732283] FWMSG: [ISP] CH = 0 CMD = 0x021a [CISP_CMD_CH_AE_STABILITY_SET]
[ 2106.732331] FWMSG: [DSC] CH = 0 AE Stability Set [75]
[ 2106.732445] FWMSG: [ISP] CH = 0 CMD = 0x0229 [CISP_CMD_CH_AE_STABILITY_TO_STABLE_SET]
[ 2106.732489] FWMSG: [DSC] CH = 0 AE Stability Set [8]
[ 2106.732598] FWMSG: [ISP] CH = 0 CMD = 0x0115 [CISP_CMD_CH_SIF_PIXEL_FORMAT_SET]
[ 2106.732781] FWMSG: [ISP] CH = 0 CMD = 0x0124 [CISP_CMD_CH_CAMERA_ERR_HANDLE_CONFIG]
[ 2106.732897] FWMSG: [ISP] CH = 0 CMD = 0x0d05 [CISP_CMD_CH_FACE_DETECTION_ENABLE]
[ 2106.733093] FWMSG: [ISP] CH = 0 CMD = 0x0d00 [CISP_CMD_CH_FACE_DETECTION_START]
[ 2106.733304] FWMSG: [ISP] CH = 0 CMD = 0x0208 [CISP_CMD_CH_AE_FRAME_RATE_MAX_SET]
[ 2106.733459] FWMSG: [DSC] CH = 0 AE Frame Rate Max Set [8448]
[ 2106.733588] FWMSG: [ISP] CH = 0 CMD = 0x020a [CISP_CMD_CH_AE_FRAME_RATE_MIN_SET]
[ 2106.733688] FWMSG: [DSC] CH = 0 AE Frame Rate Min Set [8448]
[ 2106.733823] FWMSG: [ISP] CH = 0 CMD = 0xc100 [CISP_CMD_APPLE_CH_TEMPORAL_FILTER_START]
[ 2106.734062] FWMSG: [ISP] CH = 0 CMD = 0xc102 [CISP_CMD_APPLE_CH_MOTION_HISTORY_START]
[ 2106.734329] FWMSG: [ISP] CH = 0 CMD = 0xc113 [CISP_CMD_APPLE_CH_TEMPORAL_FILTER_ENABLE]
[ 2106.734489] FWMSG: [ISP] CH = 0 CMD = 0x8106 [CISP_CMD_APPLE_CH_STREAMING_MODE_SET]
[ 2106.734525] FWMSG: [DSC] CH = 0 Streaming Mode Set [0]
[ 2106.734686] FWMSG: [ISP] CH = 0 CMD = 0x0b02 [CISP_CMD_CH_SCALER_BRIGHTNESS_SET]
[ 2106.734841] FWMSG: [ISP] CH = 0 CMD = 0x0b03 [CISP_CMD_CH_SCALER_CONTRAST_SET]
[ 2106.734977] FWMSG: [ISP] CH = 0 CMD = 0x0100 [CISP_CMD_CH_START]
[ 2107.860347] FWMSG: [ISP] CH = 0 CMD = 0x0101 [CISP_CMD_CH_STOP]
[ 2108.004049] FWMSG: [ISP] CH = 0 CMD = 0x0104 [CISP_CMD_CH_BUFFER_RETURN]
[ 2108.004745] FWMSG: [ISP] CH = 0 CMD = 0x0d01 [CISP_CMD_CH_FACE_DETECTION_STOP]
[ 2108.004951] FWMSG: [ISP] CH = 0 CMD = 0x0d04 [CISP_CMD_CH_FACE_DETECTION_DISABLE]
[ 2108.005142] FWMSG: [ISP] CH = 0 CMD = 0xc114 [CISP_CMD_APPLE_CH_TEMPORAL_FILTER_DISABLE]
[ 2108.005310] FWMSG: [ISP] CH = 0 CMD = 0xc103 [CISP_CMD_APPLE_CH_MOTION_HISTORY_STOP]
[ 2108.005454] FWMSG: [ISP] CH = 0 CMD = 0xc101 [CISP_CMD_APPLE_CH_TEMPORAL_FILTER_STOP]
[ 2108.027763] FWMSG: [ISP] CH = 0 CMD = 0x0106 [CISP_CMD_CH_CAMERA_CONFIG_GET]
[ 2108.027855] FWMSG: [DSC] CH = 0 Camera current config Get [0]
[ 2108.028004] FWMSG: [ISP] CH = 0 CMD = 0x0106 [CISP_CMD_CH_CAMERA_CONFIG_GET]
[ 2108.028082] FWMSG: [DSC] CH = 0 Camera current config Get [1]
[ 2108.028225] FWMSG: [ISP] CH = 0 CMD = 0x0107 [CISP_CMD_CH_CAMERA_CONFIG_SELECT]
[ 2108.029866] FWMSG: [DSC] CH = 0 Camera set to config -> 0
[ 2108.029998] FWMSG: [ISP] CH = 0 CMD = 0x0801 [CISP_CMD_CH_CROP_SET]
[ 2108.030079] FWMSG: [DSC] CH = 0 CROP -> [0, 0][1280, 720] within [0, 0][1280, 720]
[ 2108.030214] FWMSG: [ISP] CH = 0 CMD = 0x0b01 [CISP_CMD_CH_OUTPUT_CONFIG_SET]
[ 2108.030348] FWMSG: [DSC] CH = 0 New Output config -> format = 1, range 0, size = 1280x720
[ 2108.030467] FWMSG: [ISP] CH = 0 CMD = 0x010e [CISP_CMD_CH_BUFFER_RECYCLE_MODE_SET]
[ 2108.030495] FWMSG: [DSC] CH = 0 Dynamic Buffers Recycling Mode Set [EMPTY ONLY]
[ 2108.030608] FWMSG: [ISP] CH = 0 CMD = 0x010f [CISP_CMD_CH_BUFFER_RECYCLE_START]
[ 2108.030808] FWMSG: [ISP] CH = 0 CMD = 0x8206 [CISP_CMD_APPLE_CH_AE_METERING_MODE_SET]
[ 2108.030855] FWMSG: [DSC] CH = 0 AE Metering Mode Set [3]
[ 2108.030998] FWMSG: [ISP] CH = 0 CMD = 0x0c00 [CISP_CMD_CH_DRC_START]
[ 2108.031162] FWMSG: [ISP] CH = 0 CMD = 0xc300 [CISP_CMD_APPLE_CH_TONE_CURVE_ADAPTATION_START]
[ 2108.031310] FWMSG: [ISP] CH = 0 CMD = 0x0218 [CISP_CMD_CH_AE_SPEED_SET]
[ 2108.031361] FWMSG: [DSC] CH = 0 AE Speed Set [60]
[ 2108.031474] FWMSG: [ISP] CH = 0 CMD = 0x021a [CISP_CMD_CH_AE_STABILITY_SET]
[ 2108.031524] FWMSG: [DSC] CH = 0 AE Stability Set [75]
[ 2108.031641] FWMSG: [ISP] CH = 0 CMD = 0x0229 [CISP_CMD_CH_AE_STABILITY_TO_STABLE_SET]
[ 2108.031663] FWMSG: [DSC] CH = 0 AE Stability Set [8]
[ 2108.031775] FWMSG: [ISP] CH = 0 CMD = 0x0115 [CISP_CMD_CH_SIF_PIXEL_FORMAT_SET]
[ 2108.031911] FWMSG: [ISP] CH = 0 CMD = 0x0124 [CISP_CMD_CH_CAMERA_ERR_HANDLE_CONFIG]
[ 2108.032031] FWMSG: [ISP] CH = 0 CMD = 0x0d05 [CISP_CMD_CH_FACE_DETECTION_ENABLE]
[ 2108.032234] FWMSG: [ISP] CH = 0 CMD = 0x0d00 [CISP_CMD_CH_FACE_DETECTION_START]
[ 2108.032439] FWMSG: [ISP] CH = 0 CMD = 0x0208 [CISP_CMD_CH_AE_FRAME_RATE_MAX_SET]
[ 2108.032595] FWMSG: [DSC] CH = 0 AE Frame Rate Max Set [8448]
[ 2108.032708] FWMSG: [ISP] CH = 0 CMD = 0x020a [CISP_CMD_CH_AE_FRAME_RATE_MIN_SET]
[ 2108.032816] FWMSG: [DSC] CH = 0 AE Frame Rate Min Set [8448]
[ 2108.032946] FWMSG: [ISP] CH = 0 CMD = 0xc100 [CISP_CMD_APPLE_CH_TEMPORAL_FILTER_START]
[ 2108.033185] FWMSG: [ISP] CH = 0 CMD = 0xc102 [CISP_CMD_APPLE_CH_MOTION_HISTORY_START]
[ 2108.033403] FWMSG: [ISP] CH = 0 CMD = 0xc113 [CISP_CMD_APPLE_CH_TEMPORAL_FILTER_ENABLE]
[ 2108.033532] FWMSG: [ISP] CH = 0 CMD = 0x8106 [CISP_CMD_APPLE_CH_STREAMING_MODE_SET]
[ 2108.033554] FWMSG: [DSC] CH = 0 Streaming Mode Set [0]
[ 2108.033691] FWMSG: [ISP] CH = 0 CMD = 0x0b02 [CISP_CMD_CH_SCALER_BRIGHTNESS_SET]
[ 2108.033848] FWMSG: [ISP] CH = 0 CMD = 0x0b03 [CISP_CMD_CH_SCALER_CONTRAST_SET]
[ 2108.033981] FWMSG: [ISP] CH = 0 CMD = 0x0100 [CISP_CMD_CH_START]
[ 2109.159267] FWMSG: [ISP] CH = 0 CMD = 0x0101 [CISP_CMD_CH_STOP]
[ 2109.243004] FWMSG: [ISP] CH = 0 CMD = 0x0104 [CISP_CMD_CH_BUFFER_RETURN]
[ 2109.243783] FWMSG: [ISP] CH = 0 CMD = 0x0d01 [CISP_CMD_CH_FACE_DETECTION_STOP]
[ 2109.244048] FWMSG: [ISP] CH = 0 CMD = 0x0d04 [CISP_CMD_CH_FACE_DETECTION_DISABLE]
[ 2109.244247] FWMSG: [ISP] CH = 0 CMD = 0xc114 [CISP_CMD_APPLE_CH_TEMPORAL_FILTER_DISABLE]
[ 2109.244410] FWMSG: [ISP] CH = 0 CMD = 0xc103 [CISP_CMD_APPLE_CH_MOTION_HISTORY_STOP]
[ 2109.244529] FWMSG: [ISP] CH = 0 CMD = 0xc101 [CISP_CMD_APPLE_CH_TEMPORAL_FILTER_STOP]
[ 2109.265376] FWMSG: [ISP] CH = 0 CMD = 0x0106 [CISP_CMD_CH_CAMERA_CONFIG_GET]
[ 2109.265438] FWMSG: [DSC] CH = 0 Camera current config Get [0]
[ 2109.265575] FWMSG: [ISP] CH = 0 CMD = 0x0106 [CISP_CMD_CH_CAMERA_CONFIG_GET]
[ 2109.265647] FWMSG: [DSC] CH = 0 Camera current config Get [1]
[ 2109.265781] FWMSG: [ISP] CH = 0 CMD = 0x0107 [CISP_CMD_CH_CAMERA_CONFIG_SELECT]
[ 2109.267444] FWMSG: [DSC] CH = 0 Camera set to config -> 0
[ 2109.267570] FWMSG: [ISP] CH = 0 CMD = 0x0801 [CISP_CMD_CH_CROP_SET]
[ 2109.267651] FWMSG: [DSC] CH = 0 CROP -> [0, 0][1280, 720] within [0, 0][1280, 720]
[ 2109.267774] FWMSG: [ISP] CH = 0 CMD = 0x0b01 [CISP_CMD_CH_OUTPUT_CONFIG_SET]
[ 2109.267914] FWMSG: [DSC] CH = 0 New Output config -> format = 1, range 0, size = 1280x720
[ 2109.268045] FWMSG: [ISP] CH = 0 CMD = 0x010e [CISP_CMD_CH_BUFFER_RECYCLE_MODE_SET]
[ 2109.268074] FWMSG: [DSC] CH = 0 Dynamic Buffers Recycling Mode Set [EMPTY ONLY]
[ 2109.268185] FWMSG: [ISP] CH = 0 CMD = 0x010f [CISP_CMD_CH_BUFFER_RECYCLE_START]
[ 2109.268397] FWMSG: [ISP] CH = 0 CMD = 0x8206 [CISP_CMD_APPLE_CH_AE_METERING_MODE_SET]
[ 2109.268431] FWMSG: [DSC] CH = 0 AE Metering Mode Set [3]
[ 2109.268557] FWMSG: [ISP] CH = 0 CMD = 0x0c00 [CISP_CMD_CH_DRC_START]
[ 2109.268689] FWMSG: [ISP] CH = 0 CMD = 0xc300 [CISP_CMD_APPLE_CH_TONE_CURVE_ADAPTATION_START]
[ 2109.268823] FWMSG: [ISP] CH = 0 CMD = 0x0218 [CISP_CMD_CH_AE_SPEED_SET]
[ 2109.268872] FWMSG: [DSC] CH = 0 AE Speed Set [60]
[ 2109.268980] FWMSG: [ISP] CH = 0 CMD = 0x021a [CISP_CMD_CH_AE_STABILITY_SET]
[ 2109.269028] FWMSG: [DSC] CH = 0 AE Stability Set [75]
[ 2109.269143] FWMSG: [ISP] CH = 0 CMD = 0x0229 [CISP_CMD_CH_AE_STABILITY_TO_STABLE_SET]
[ 2109.269189] FWMSG: [DSC] CH = 0 AE Stability Set [8]
[ 2109.269299] FWMSG: [ISP] CH = 0 CMD = 0x0115 [CISP_CMD_CH_SIF_PIXEL_FORMAT_SET]
[ 2109.269431] FWMSG: [ISP] CH = 0 CMD = 0x0124 [CISP_CMD_CH_CAMERA_ERR_HANDLE_CONFIG]
[ 2109.269555] FWMSG: [ISP] CH = 0 CMD = 0x0d05 [CISP_CMD_CH_FACE_DETECTION_ENABLE]
[ 2109.269754] FWMSG: [ISP] CH = 0 CMD = 0x0d00 [CISP_CMD_CH_FACE_DETECTION_START]
[ 2109.269955] FWMSG: [ISP] CH = 0 CMD = 0x0208 [CISP_CMD_CH_AE_FRAME_RATE_MAX_SET]
[ 2109.270119] FWMSG: [DSC] CH = 0 AE Frame Rate Max Set [8448]
[ 2109.270256] FWMSG: [ISP] CH = 0 CMD = 0x020a [CISP_CMD_CH_AE_FRAME_RATE_MIN_SET]
[ 2109.270343] FWMSG: [DSC] CH = 0 AE Frame Rate Min Set [8448]
[ 2109.270473] FWMSG: [ISP] CH = 0 CMD = 0xc100 [CISP_CMD_APPLE_CH_TEMPORAL_FILTER_START]
[ 2109.270708] FWMSG: [ISP] CH = 0 CMD = 0xc102 [CISP_CMD_APPLE_CH_MOTION_HISTORY_START]
[ 2109.270922] FWMSG: [ISP] CH = 0 CMD = 0xc113 [CISP_CMD_APPLE_CH_TEMPORAL_FILTER_ENABLE]
[ 2109.271038] FWMSG: [ISP] CH = 0 CMD = 0x8106 [CISP_CMD_APPLE_CH_STREAMING_MODE_SET]
[ 2109.271060] FWMSG: [DSC] CH = 0 Streaming Mode Set [0]
[ 2109.271175] FWMSG: [ISP] CH = 0 CMD = 0x0b02 [CISP_CMD_CH_SCALER_BRIGHTNESS_SET]
[ 2109.271314] FWMSG: [ISP] CH = 0 CMD = 0x0b03 [CISP_CMD_CH_SCALER_CONTRAST_SET]
[ 2109.271426] FWMSG: [ISP] CH = 0 CMD = 0x0100 [CISP_CMD_CH_START]
[ 2116.535985] FWMSG: [ISP] CH = 0 CMD = 0x0101 [CISP_CMD_CH_STOP]
[ 2116.627166] FWMSG: [ISP] CH = 0 CMD = 0x0104 [CISP_CMD_CH_BUFFER_RETURN]
[ 2116.627868] FWMSG: [ISP] CH = 0 CMD = 0x0d01 [CISP_CMD_CH_FACE_DETECTION_STOP]
[ 2116.628044] FWMSG: [ISP] CH = 0 CMD = 0x0d04 [CISP_CMD_CH_FACE_DETECTION_DISABLE]
[ 2116.628226] FWMSG: [ISP] CH = 0 CMD = 0xc114 [CISP_CMD_APPLE_CH_TEMPORAL_FILTER_DISABLE]
[ 2116.628394] FWMSG: [ISP] CH = 0 CMD = 0xc103 [CISP_CMD_APPLE_CH_MOTION_HISTORY_STOP]
[ 2116.628533] FWMSG: [ISP] CH = 0 CMD = 0xc101 [CISP_CMD_APPLE_CH_TEMPORAL_FILTER_STOP]
[ 2116.657045] FWMSG: [ISP] CH = 0 CMD = 0x0106 [CISP_CMD_CH_CAMERA_CONFIG_GET]
[ 2116.657147] FWMSG: [DSC] CH = 0 Camera current config Get [0]
[ 2116.657295] FWMSG: [ISP] CH = 0 CMD = 0x0106 [CISP_CMD_CH_CAMERA_CONFIG_GET]
[ 2116.657367] FWMSG: [DSC] CH = 0 Camera current config Get [1]
[ 2116.657508] FWMSG: [ISP] CH = 0 CMD = 0x0107 [CISP_CMD_CH_CAMERA_CONFIG_SELECT]
[ 2116.659153] FWMSG: [DSC] CH = 0 Camera set to config -> 0
[ 2116.659288] FWMSG: [ISP] CH = 0 CMD = 0x0801 [CISP_CMD_CH_CROP_SET]
[ 2116.659366] FWMSG: [DSC] CH = 0 CROP -> [0, 0][1280, 720] within [0, 0][1280, 720]
[ 2116.659490] FWMSG: [ISP] CH = 0 CMD = 0x0b01 [CISP_CMD_CH_OUTPUT_CONFIG_SET]
[ 2116.659623] FWMSG: [DSC] CH = 0 New Output config -> format = 1, range 0, size = 1280x720
[ 2116.659743] FWMSG: [ISP] CH = 0 CMD = 0x010e [CISP_CMD_CH_BUFFER_RECYCLE_MODE_SET]
[ 2116.659772] FWMSG: [DSC] CH = 0 Dynamic Buffers Recycling Mode Set [EMPTY ONLY]
[ 2116.659884] FWMSG: [ISP] CH = 0 CMD = 0x010f [CISP_CMD_CH_BUFFER_RECYCLE_START]
[ 2116.660078] FWMSG: [ISP] CH = 0 CMD = 0x8206 [CISP_CMD_APPLE_CH_AE_METERING_MODE_SET]
[ 2116.660128] FWMSG: [DSC] CH = 0 AE Metering Mode Set [3]
[ 2116.660247] FWMSG: [ISP] CH = 0 CMD = 0x0c00 [CISP_CMD_CH_DRC_START]
[ 2116.660419] FWMSG: [ISP] CH = 0 CMD = 0xc300 [CISP_CMD_APPLE_CH_TONE_CURVE_ADAPTATION_START]
[ 2116.660536] FWMSG: [ISP] CH = 0 CMD = 0x0218 [CISP_CMD_CH_AE_SPEED_SET]
[ 2116.660586] FWMSG: [DSC] CH = 0 AE Speed Set [60]
[ 2116.660701] FWMSG: [ISP] CH = 0 CMD = 0x021a [CISP_CMD_CH_AE_STABILITY_SET]
[ 2116.660750] FWMSG: [DSC] CH = 0 AE Stability Set [75]
[ 2116.660868] FWMSG: [ISP] CH = 0 CMD = 0x0229 [CISP_CMD_CH_AE_STABILITY_TO_STABLE_SET]
[ 2116.660891] FWMSG: [DSC] CH = 0 AE Stability Set [8]
[ 2116.661005] FWMSG: [ISP] CH = 0 CMD = 0x0115 [CISP_CMD_CH_SIF_PIXEL_FORMAT_SET]
[ 2116.661138] FWMSG: [ISP] CH = 0 CMD = 0x0124 [CISP_CMD_CH_CAMERA_ERR_HANDLE_CONFIG]
[ 2116.661260] FWMSG: [ISP] CH = 0 CMD = 0x0d05 [CISP_CMD_CH_FACE_DETECTION_ENABLE]
[ 2116.661462] FWMSG: [ISP] CH = 0 CMD = 0x0d00 [CISP_CMD_CH_FACE_DETECTION_START]
[ 2116.661666] FWMSG: [ISP] CH = 0 CMD = 0x0208 [CISP_CMD_CH_AE_FRAME_RATE_MAX_SET]
[ 2116.661819] FWMSG: [DSC] CH = 0 AE Frame Rate Max Set [8448]
[ 2116.661931] FWMSG: [ISP] CH = 0 CMD = 0x020a [CISP_CMD_CH_AE_FRAME_RATE_MIN_SET]
[ 2116.662037] FWMSG: [DSC] CH = 0 AE Frame Rate Min Set [8448]
[ 2116.662169] FWMSG: [ISP] CH = 0 CMD = 0xc100 [CISP_CMD_APPLE_CH_TEMPORAL_FILTER_START]
[ 2116.662405] FWMSG: [ISP] CH = 0 CMD = 0xc102 [CISP_CMD_APPLE_CH_MOTION_HISTORY_START]
[ 2116.662621] FWMSG: [ISP] CH = 0 CMD = 0xc113 [CISP_CMD_APPLE_CH_TEMPORAL_FILTER_ENABLE]
[ 2116.662738] FWMSG: [ISP] CH = 0 CMD = 0x8106 [CISP_CMD_APPLE_CH_STREAMING_MODE_SET]
[ 2116.662761] FWMSG: [DSC] CH = 0 Streaming Mode Set [0]
[ 2116.662879] FWMSG: [ISP] CH = 0 CMD = 0x0b02 [CISP_CMD_CH_SCALER_BRIGHTNESS_SET]
[ 2116.663017] FWMSG: [ISP] CH = 0 CMD = 0x0b03 [CISP_CMD_CH_SCALER_CONTRAST_SET]
[ 2116.663131] FWMSG: [ISP] CH = 0 CMD = 0x0100 [CISP_CMD_CH_START]
```
