HDMI display popup configuration setting, but doesn't display on monitor

General system Newbie
1

My problem is that, when I plug in a monitor to my laptop, or anything via HDMI, it pops up with the configuration screen, asking if I’d like to mirror my screen, display to the left/right etc, but when I select one it doesn’t work; or it goes away and keeps popping up multiple times. I had no problems with the HDMI when using windows 11 on the laptop. Any ideas as to how I can fix this/what’s exactly wrong?
Thanks!

system settings:
System:
Kernel: 6.11.1-arch1-1 arch: x86_64 bits: 64 compiler: gcc v: 14.2.1
Desktop: KDE Plasma v: 6.1.5 tk: Qt v: N/A wm: kwin_wayland dm: SDDM
Distro: EndeavourOS base: Arch Linux
Machine:
Type: Laptop System: GIGABYTE product: AORUS 15P XD v: N/A
serial:
Mobo: GIGABYTE model: AORUS 15P XD v: WIN11 serial:
part-nu: X5LXD UEFI: American Megatrends LLC. v: FE0A date: 12/15/2022
Battery:
ID-1: BAT1 charge: 18.1 Wh (18.3%) condition: 99.0/99.0 Wh (100.0%)
volts: 16.2 min: 15.2 model: GIGABYTE Aorus 15 serial: N/A status: charging
CPU:
Info: 8-core model: 11th Gen Intel Core i7-11800H bits: 64 type: MT MCP
arch: Tiger Lake rev: 1 cache: L1: 640 KiB L2: 10 MiB L3: 24 MiB
Speed (MHz): avg: 800 min/max: 800/4600 cores: 1: 800 2: 800 3: 800 4: 800
5: 800 6: 800 7: 800 8: 800 9: 800 10: 800 11: 800 12: 800 13: 800 14: 800
15: 800 16: 800 bogomips: 73744
Flags: avx avx2 ht lm nx pae sse sse2 sse3 sse4_1 sse4_2 ssse3 vmx
Graphics:
Device-1: Intel TigerLake-H GT1 [UHD Graphics] vendor: Gigabyte driver: i915
v: kernel arch: Gen-12.1 ports: active: eDP-1 empty: DP-1, DP-2, DP-3,
DP-4, DP-5, HDMI-A-1 bus-ID: 00:02.0 chip-ID: 8086:9a60
Device-2: NVIDIA GA104M [GeForce RTX 3070 Mobile / Max-Q] vendor: Gigabyte
driver: N/A arch: Ampere pcie: speed: 16 GT/s lanes: 16 bus-ID: 01:00.0
chip-ID: 10de:249d
Device-3: IMC Networks USB2.0 HD UVC WebCam driver: uvcvideo type: USB
rev: 2.0 speed: 480 Mb/s lanes: 1 bus-ID: 3-9:2 chip-ID: 13d3:56a2
Display: wayland server: X.org v: 1.21.1.13 with: Xwayland v: 24.1.2
compositor: kwin_wayland driver: X: loaded: modesetting
alternate: fbdev,intel,vesa dri: iris gpu: i915 display-ID: 0
Monitor-1: eDP-1 res: 1536x864 size: N/A
API: EGL v: 1.5 platforms: device: 0 drv: iris device: 1 drv: swrast gbm:
drv: iris surfaceless: drv: iris wayland: drv: iris x11: drv: iris
API: OpenGL v: 4.6 compat-v: 4.5 vendor: intel mesa v: 24.2.3-arch1.1
glx-v: 1.4 direct-render: yes renderer: Mesa Intel UHD Graphics (TGL GT1)
device-ID: 8086:9a60 display-ID: :1.0
API: Vulkan Message: No Vulkan data available.
Audio:
Device-1: Intel Tiger Lake-H HD Audio vendor: Gigabyte driver: snd_hda_intel
v: kernel bus-ID: 00:1f.3 chip-ID: 8086:43c8
Device-2: NVIDIA GA104 High Definition Audio vendor: Gigabyte
driver: snd_hda_intel v: kernel pcie: speed: 16 GT/s lanes: 16
bus-ID: 01:00.1 chip-ID: 10de:228b
API: ALSA v: k6.11.1-arch1-1 status: kernel-api
Server-1: PipeWire v: 1.2.5 status: active with: 1: pipewire-pulse
status: active 2: wireplumber status: active 3: pipewire-alsa type: plugin
4: pw-jack type: plugin
Network:
Device-1: Realtek RTL8125 2.5GbE vendor: Gigabyte driver: r8169 v: kernel
pcie: speed: 5 GT/s lanes: 1 port: 3000 bus-ID: 2e:00.0 chip-ID: 10ec:8125
IF: enp46s0 state: down mac:
Device-2: Intel Wi-Fi 6 AX200 driver: iwlwifi v: kernel pcie:
speed: 5 GT/s lanes: 1 bus-ID: 30:00.0 chip-ID: 8086:2723
IF: wlan0 state: up mac:
Bluetooth:
Device-1: Intel AX200 Bluetooth driver: btusb v: 0.8 type: USB rev: 2.0
speed: 12 Mb/s lanes: 1 bus-ID: 3-10:3 chip-ID: 8087:0029
Report: btmgmt ID: hci0 rfk-id: 0 state: down bt-service: disabled
rfk-block: hardware: no software: no address: N/A
Drives:
Local Storage: total: 1.84 TiB used: 90.6 GiB (4.8%)
ID-1: /dev/nvme0n1 vendor: Silicon Motion model: SM2P43A8-001TC2
size: 953.87 GiB speed: 63.2 Gb/s lanes: 4 serial: temp: 29.9 C
ID-2: /dev/nvme1n1 vendor: Crucial model: CT1000P3PSSD8 size: 931.51 GiB
speed: 63.2 Gb/s lanes: 4 serial: temp: 28.9 C
Partition:
ID-1: / size: 914.85 GiB used: 90.48 GiB (9.9%) fs: ext4 dev: /dev/nvme1n1p2
Swap:
Alert: No swap data was found.
Sensors:
System Temperatures: cpu: 50.0 C mobo: N/A
Fan Speeds (rpm): N/A
Info:
Memory: total: 16 GiB note: est. available: 15.31 GiB used: 3.75 GiB (24.5%)
Processes: 332 Power: uptime: 16m wakeups: 0 Init: systemd v: 256
default: graphical
Packages: pm: pacman pkgs: 1285 Compilers: gcc: 14.2.1 Shell: Bash
v: 5.2.37 running-in: konsole inxi: 3.3.36

2

Welcome @issLouis !

Tip: when showing a program’s output, please use lines of three bactick ( ` ) characters around the output for readability like this:
```
all inxi output here
```

You don’t seem to have any Nvidia driver. Can you show the output of commands

pacman -Q | grep nvidia
lsmod | grep nvidia

so we can see what’s installed and the related kernel modules.

3

I’m sorry for the late response! I ended up focusing on some other stuff and haven’t used my laptop which has endeavour on it for a while. The output of the commands is as follows:

lib32-nvidia-utils 560.35.03-1
nvidia-inst 25.4.11-1
nvidia-utils 560.35.03-5

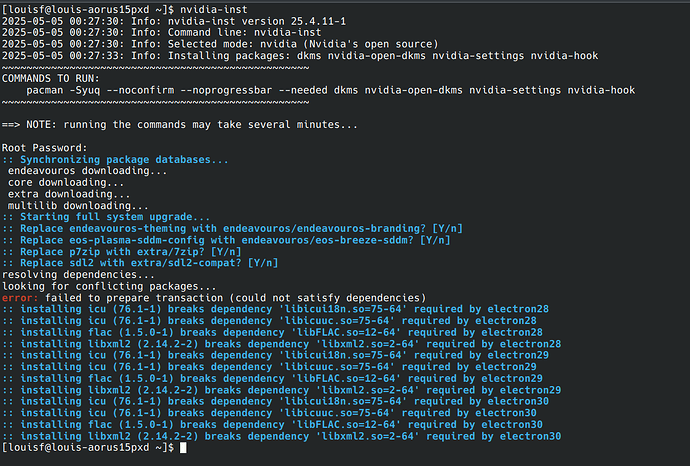

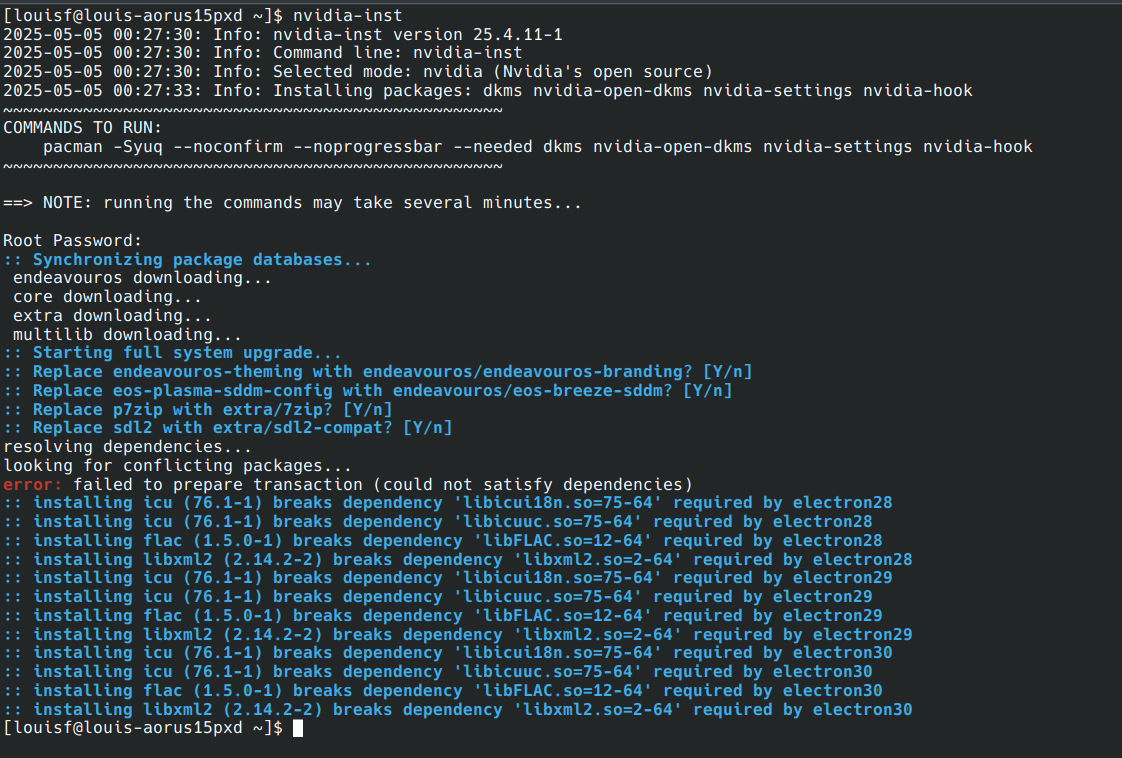

I also tried to use the nvidia-inst as I found in another thread and got some errors I’m not sure how to properly fix, did some quick googling but I have a feeling it’s likely the same issue as what I was having here. This was the outcome of that.

2025-05-05_00-28
2025-05-05_00-281122×758 158 KB

4

You should remove those old electronNN packages.

Tip: while uninstalling them, be sure to check that no other package needs the particular electronNN package.
